78 | ORBEA

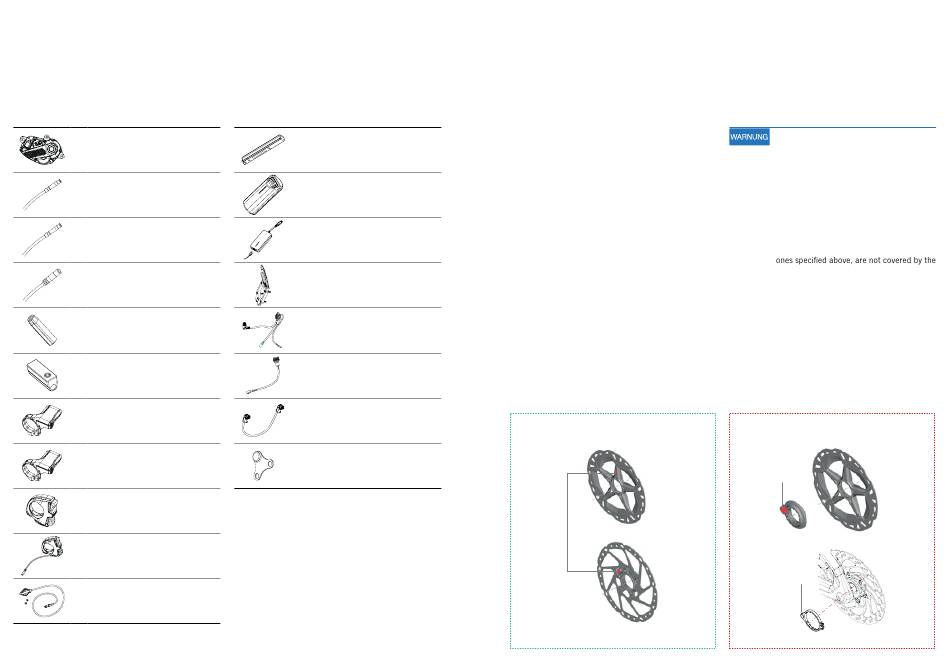

BESTANDTEILE DES MOTORSYSTEMS
ORBEA RS UND SHIMANO KOMPONENTEN
SH I MANO KO M P ON EN TEN *
1 MOTOR SHIMANO EP8 RS
2 KABEL SHIMANO STEPS-DI2 EW-SD300 1200 mm
3 KABEL SHIMANO STEPS-DI2 EW-SD300 400 mm
4 KABEL SHIMANO STEPS-DI2 EW-SD50 400 mm
5 ADAPTER SHIMANO EW-AD305 Kabel
EW-SD50 / EW-SD300
6 VERBINDUNGSEINHEIT-A SHIMANO EW-EN100
7 DISPLAY SHIMANO SC-EM800 35 mm
8 DISPLAY SHIMANO SC-E7000 35 mm
9 REMOTESCHALTER SHIMANO SW-EM800-L.
Kein Kabel
10 REMOTESCHALTER SHIMANO SW-E7000-L.
300 mm Kabel
11 GESCHWINDIGKEITSSENSOR SHIMANO
EW-SS301. 760 mm Kabel. Mit Schrauben
* Die Shimano Komponenten sind über einen Shimano Händler erhältlich.
TE CH NI S CH ES HAN DB UCH
ORBEA RS KOMPONENTEN ART Nº
12 INTEGRIERTER AKKU ORBEA RS
540 Wh 36 V
13 RANGE EXTENDER AKKU ORBEA
RS 252 Wh 36 V 2022
14 SMART CHARGER ORBEA RS
2 A - 4 A EU/US/UK/AUS
15 LADEBUCHSENABDECKUNG
mit Schrauben
16 KABELBAUM RS AKKU/
LADEBUCHSE/SCHALTER
(205/150/80 mm)
17 RS MINISCHALTER
EINSCHALTKNOPF
mit Befestigungsmutter
18 KABEL RS RANGE EXTENDER
2022 225 mm
MAGNET FÜR GESCHWINDIG-
19
KEITSSENSOR ORBEA 6-LOCH
B LU E PA P E R R I SE · HYDRO 2022
REAR CENTERLOCK DISC BRAKE
ROTORS COMPATIBILITY
Orbea models originally assembled with Centerlock
wheels and rotors use a Shimano RT-EM600 rear Center-
XA81
lock rotor, which integrates the speed sensor magnet
within the rotor spider.
If it is necessary to replace the rear Centerlock rotor, or if
Y041
Centerlock wheels are to be installed on models originally
assembled with 6-bolt wheels, Rise Hydro 2022 is only
compatible with the following rear disc brake rotors with
the magnet integrated within the rotor spider:
XA82
· Shimano RT-EM600, RT-EM800, RT-EM900
· Shimano RT-EM810, RT-EM910
XA83
Shimano rear disc brake rotors with the magnet integrated
in the Centerlock lockring are not compatible with Rise
Hydro 2022, since these rotors are designed for a different
speed sensor model, and therefore will not provide a rear
XA84
wheel reading to the system.
XA85
XA86
COMPATIBLE
OPTIONS
X240
MAGNET
ORBEA | 79
Rise Hydro 2022 is not compatible with the
Orbea X095 Centerlock magnet.
This magnet, which is assembled onto the
Centerlock lockring, does not provide
enough clearance between the magnet and
the frame, and will damage the frame and/
or the speed sensor.
Damages produced from installing this mag-
net or rear rotor models different from the
warranty terms.
NOT COMPATIBLE
OPTIONS
MAGNET
ORBEA
X095
