78 | ORBEA

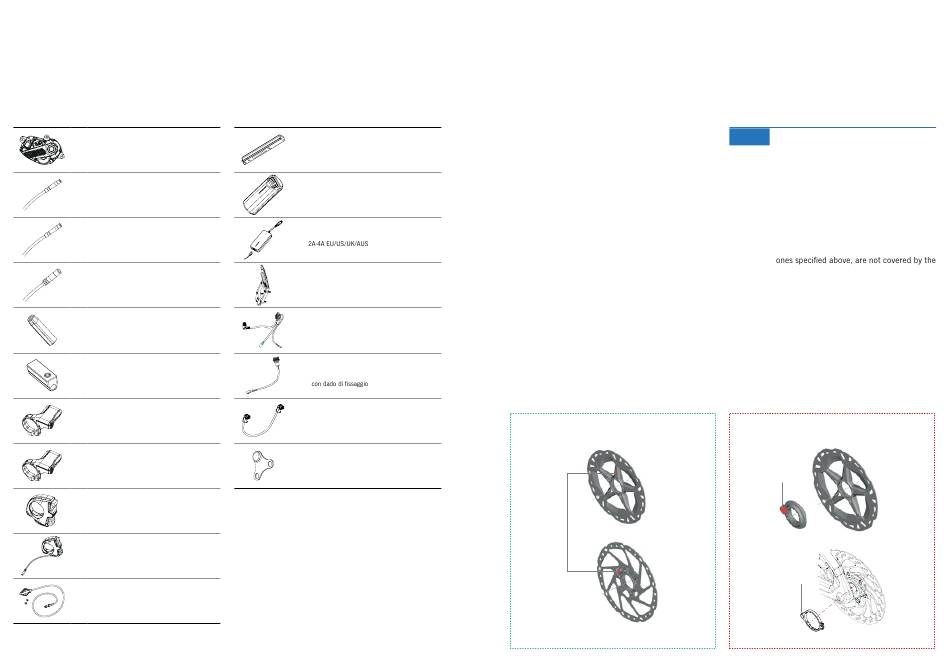

COMPONENTI SISTEMA ELETTRICO
ORBEA RS E SHIMANO
COMPO NEN TI SH I M AN O *
1 MOTORE SHIMANO EP8 RS
2 CAVO SHIMANO STEPS-DI2 EW-SD300 1200mm
3 CAVO SHIMANO STEPS-DI2 EW-SD300 400mm
4 CAVO SHIMANO STEPS-DI2 EW-SD50 400mm
5 ADATTATORE Cavo SHIMANO EW-AD305
EW-SD50 / EW-SD300
6 CENTRALINA EW-EN100
7 CICLOCOMPUTER SHIMANO SC-EM800 35mm
8 DISPLAY SHIMANO SC-E7000 35mm
9 INTERRUTTORE SHIMANO SW-EM800-L.
Senza cavo
10 Cavo INTERRUTTORE SHIMANO SW-E7000-L.
300mm
11 SENSORE DI VELOCITÀ SHIMANO EW-SS301.
Cavo 760mm. Con bulloni
* Puoi trovare i componenti Shimano presso un rivenditore Shimano.
MANUALE TECNICO
COMPONENTI ORBEA RS ART Nº
12 BATTERIA INTERNA ORBEA RS
540Wh 36V
13 BATTERIA RANGE EXTENDER
ORBEA RS 252Wh 36 V 2022
14 SMART CHARGER ORBEA RS
15 SPORTELLINO PORTA DI
RICARICA
con viti
CABLAGGIO BATTERIA RS/PUNTO
16
DI CARICA/INTERRUTTORE
(205/150/80mm)
17 PULSANTE ACCENSIONE/
SPEGNIMENTO RS MINI SWITCH
18 CAVO RS RANGE EXTENDER
2022 225mm
MAGNETE SENSORE DI
19
VELOCITÀ ORBEA 6-BOLT
B LU E PA P E R R I SE · HYDRO 2022
REAR CENTERLOCK DISC BRAKE
ROTORS COMPATIBILITY
Orbea models originally assembled with Centerlock
wheels and rotors use a Shimano RT-EM600 rear Center-
XA81
lock rotor, which integrates the speed sensor magnet
within the rotor spider.
If it is necessary to replace the rear Centerlock rotor, or if
Y041
Centerlock wheels are to be installed on models originally
assembled with 6-bolt wheels, Rise Hydro 2022 is only
compatible with the following rear disc brake rotors with
the magnet integrated within the rotor spider:
XA82
· Shimano RT-EM600, RT-EM800, RT-EM900
· Shimano RT-EM810, RT-EM910
XA83
Shimano rear disc brake rotors with the magnet integrated
in the Centerlock lockring are not compatible with Rise
Hydro 2022, since these rotors are designed for a different
speed sensor model, and therefore will not provide a rear
XA84
wheel reading to the system.
XA85
XA86
COMPATIBLE
OPTIONS
X240
MAGNET
ORBEA | 79
AVVISO Rise Hydro 2022 is not compatible with the
Orbea X095 Centerlock magnet.
This magnet, which is assembled onto the
Centerlock lockring, does not provide
enough clearance between the magnet and
the frame, and will damage the frame and/
or the speed sensor.
Damages produced from installing this mag-
net or rear rotor models different from the
warranty terms.
NOT COMPATIBLE
OPTIONS
MAGNET
ORBEA
X095
IT
