6 | O RB EA
0 3 C HA RGI N G T HE I NTER NAL BATTERY
Before using the internal battery or the Range Extender for the first time, completely charge the batteries.
Charge the internal battery and/or the Range Extender as soon as you receive it. If you are not going to
use the bike or the Range Extender, make sure the batteries are charged to at least 50% of their capacity
every 3 months.

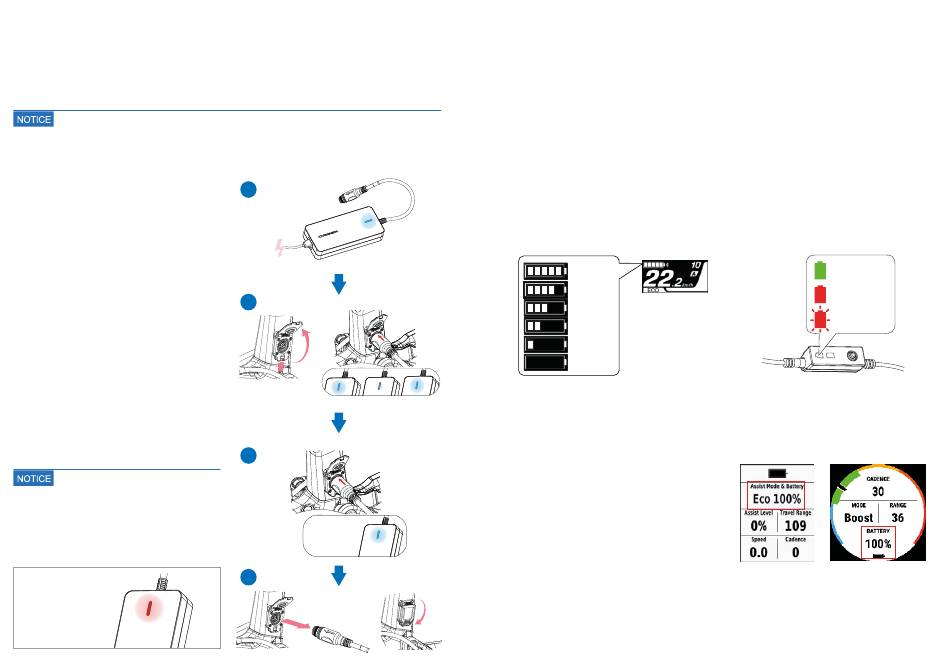

1. Plug the RS Smart Charger to the mains outlet. With the
charger not being connected to the bicycle, the LED on
the charger´s body will blink in blue.
2. Open the bicycle charging port cover and connect the
charger aligning the connector correctly. The arrow on
the charger connector must be aligned with the top part
of the charging port.
The charger´s body LED will turn blue for 2 seconds
and then it will start fading in and out cyclically until the
battery is completely charged.
3. When the battery is fully charged, the charger´s body
LED will light in blue permanently.
4. Disconnect the charger from the bicycle´s charging port
carefully pulling from the charger´s connector. Make
sure the charging port´s cover is correctly closed.
While the charger is connected to Rise, the bicycle can-
not be powered on. Disconnect the charger from the
bike and turn the bike on to check the current battery
level if you could not charge the battery completely.
If the charger´s LED lights in red when con-
necting the charger to the outlet or during the
charging process, there is a charging anomaly.
Immediately disconnect the charger and read
the charger troubleshooting method in the
Rise H Bluepaper technical manual. If the pro-
blem persists, contact an authorized dealer.
ERROR!
Q UI CKSTART G UI D E
1
2
3
100%
4
R I S E · HY D R O 2 0 22
04 CHECKING THE BAT TERY LEV E L
WITH SHI M ANO DISPLAYS
Turn the bicycle on. On assemblies with the Shimano
displays, the battery(ies) charge level will be shown on
the screen.
100% - 81%
80% - 61%
60% - 41%
40% - 21%
20% - 1%
0%
COM PATIBL E GAR M IN UNITS.
ORBEA RS TO OL BOX
Turn you compatible Garmin unit (having previously down-
loaded and installed Orbea RS Toolbox on it) and navigate
to the RS Toolbox field.
Then turn the bicycle on to see the current battery level.
If the battery level is not displayed on Toolbox, switch the
bicycle off and on again to reset the connection.
Read how to download and install the Orbea RS Toolbox
data field on your compatible Garmin unit in the dedicated
section of this manual.
O R B EA | 7
W ITH SHI M ANO EW- E N1 00 J UNTION
Turn the bicycle on. The Shimano EW-EN100 junction
will show in the LED1 the remaining battery charge of
the battery(ies). The LED1 will display a green light until the
battery charge is below 21%, after which the LED1 will
show a red light. When the battery is almost depleted,
the LED1 will blink in red.
LED 1
100% - 21%
20% or less
Almost
depleted
EN
