09 GEOMETRY AND SIZING

RISE HYDRO
TECHNICAL MANUAL B LUE PAPER RIS E · H YD RO 2022

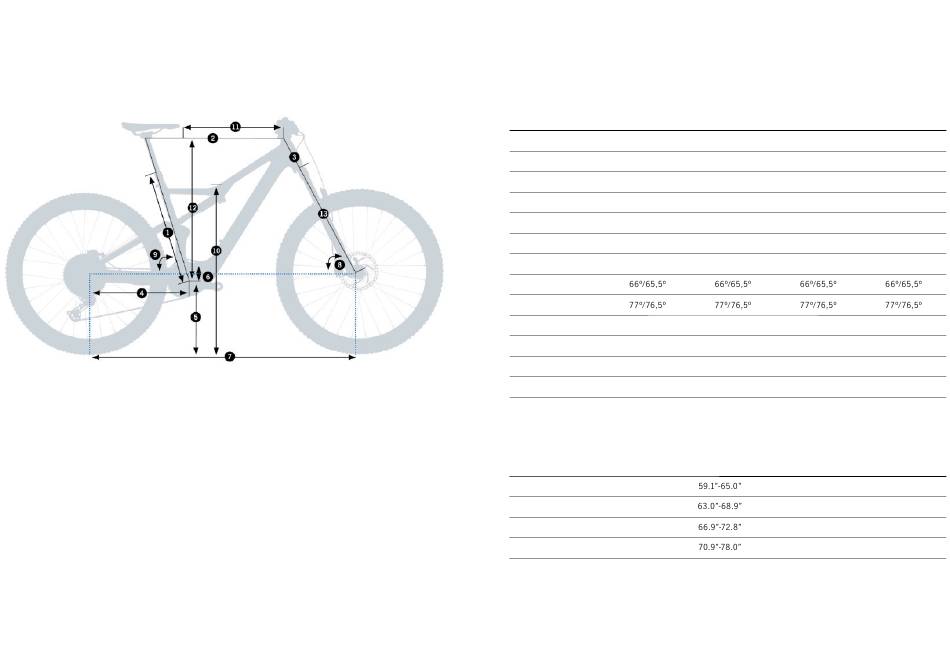

SI ZE S
1 - Seat Tube (C-T)
2 - Top Tube (EFF)
3 - Head Tube
4 - Chainstay
5 - BB Height
6 - BB Drop
7 - Wheelbase
8 - Head Angle**
9 - Seat Angle**
10 - Standover
11 - Reach
12 - Stack
13 - Fork Length**
HE I G H T (C M )
* These sizing measurements are an approximate guide. The most effective method to choose the right size for you is to try the
bicycle at one of our authorized dealers.
** With 140/150mm fork.
S M
381 419
565 592
95 105
445 445
336 336
35/32 35/32
1180 1205
710 736
425 450
604 613
547 547
HE IG HT (I N)
150-165
160-175
170-185
180-198
ORBEA | 47
EN
L X L
457 508
619 649
120 140
445 445
336 336
35/32 35/32
1229 1255
766 776
474 500
627 646
547 547
SIZE *
S
M
L
XL
