Foot Pedal Button - Mectron Piezosurgery Plus Gebrauchs- Und Wartungsanleitung

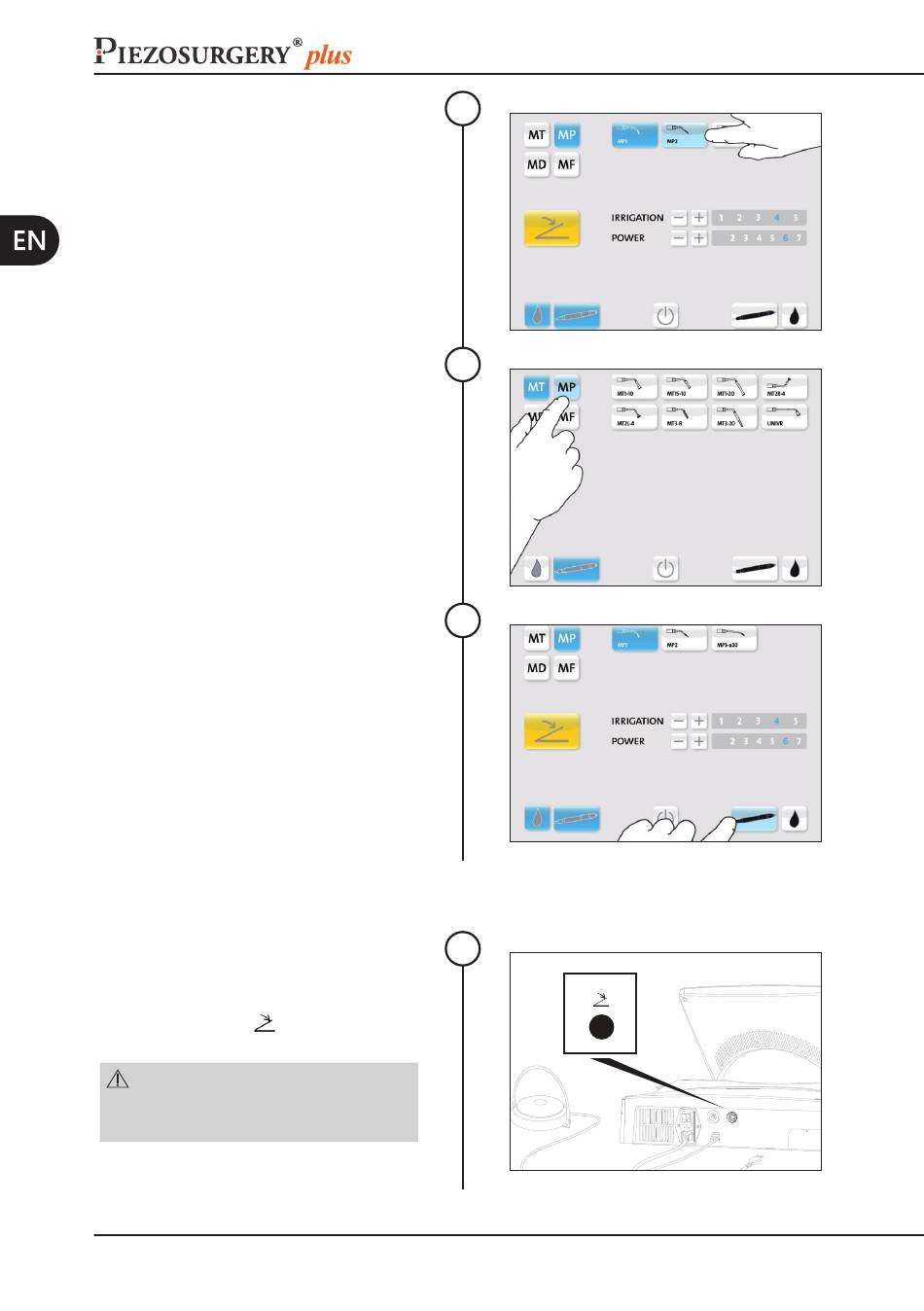

MODIFY THE INSERT
To change the insert, press the desired
insert button.
Proceed with the step 3 described in
Chapter 4.11 on page 26.
MODIFY THE INSERT FAMILY
To change the insert family, press the
desired family button.
Proceed with the step 2 described in
Chapter 4.11 on page 26.
CHANGE THE WORKING CHANNEL
To change the working channel, press the
relevant handpiece button.
The screen of the new handpiece will
appear. To activate the channel, repeat
the steps from 2 to 8 described in
4.11 on page 26.
4.13 Foot Pedal Button
If the foot pedal does not work, it is
possible to use the button located on
the rear of the device, on the left side,
under the symbol
the treatment.
CAUTION: If there is the need to
use the foot pedal button, disconnect
the foot pedal from the device.
28
Chapter
, to proceed with
2
3
4
1
