2

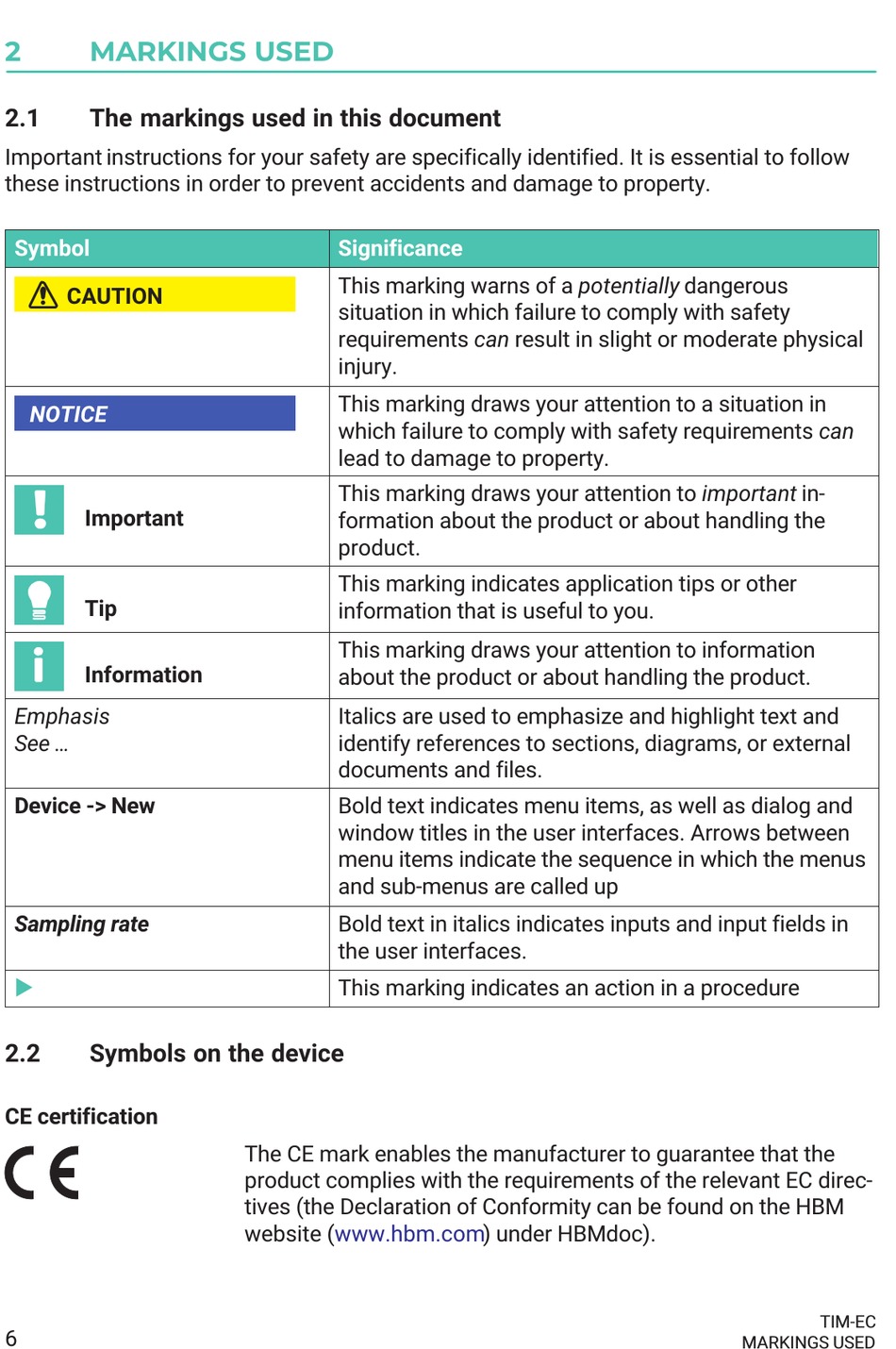

MARKINGS USED

2.1

The markings used in this document

Important instructions for your safety are specifically identified. It is essential to follow
these instructions in order to prevent accidents and damage to property.
Symbol
CAUTION
NOTICE
Important
Tip
Information
Emphasis
See ...
Device -> New
Sampling rate
u
2.2

Symbols on the device

CE certification
6
Significance
This marking warns of a potentially dangerous
situation in which failure to comply with safety
requirements can result in slight or moderate physical
injury.
This marking draws your attention to a situation in
which failure to comply with safety requirements can
lead to damage to property.
This marking draws your attention to important in­
formation about the product or about handling the
product.
This marking indicates application tips or other
information that is useful to you.
This marking draws your attention to information
about the product or about handling the product.
Italics are used to emphasize and highlight text and
identify references to sections, diagrams, or external
documents and files.
Bold text indicates menu items, as well as dialog and
window titles in the user interfaces. Arrows between
menu items indicate the sequence in which the menus
and sub-menus are called up
Bold text in italics indicates inputs and input fields in
the user interfaces.
This marking indicates an action in a procedure
The CE mark enables the manufacturer to guarantee that the
product complies with the requirements of the relevant EC direc­
tives (the Declaration of Conformity can be found on the HBM
website (www.hbm.com) under HBMdoc).
TIM-EC
MARKINGS USED
