Network
IP address
IP subnet mask
Gateway IP address
DNS
DHCP Client
Ethernet UDP
Destination IP address IP address of recipient
Destination port
Signal
Send data
Important
Only operate the device in the network with network class C and subnet mask
255.255.255.0 (default setting). Otherwise UDP broadcast loops can increase the flow of
traffic in the network.
Important
These data are not stored in the parameter set.

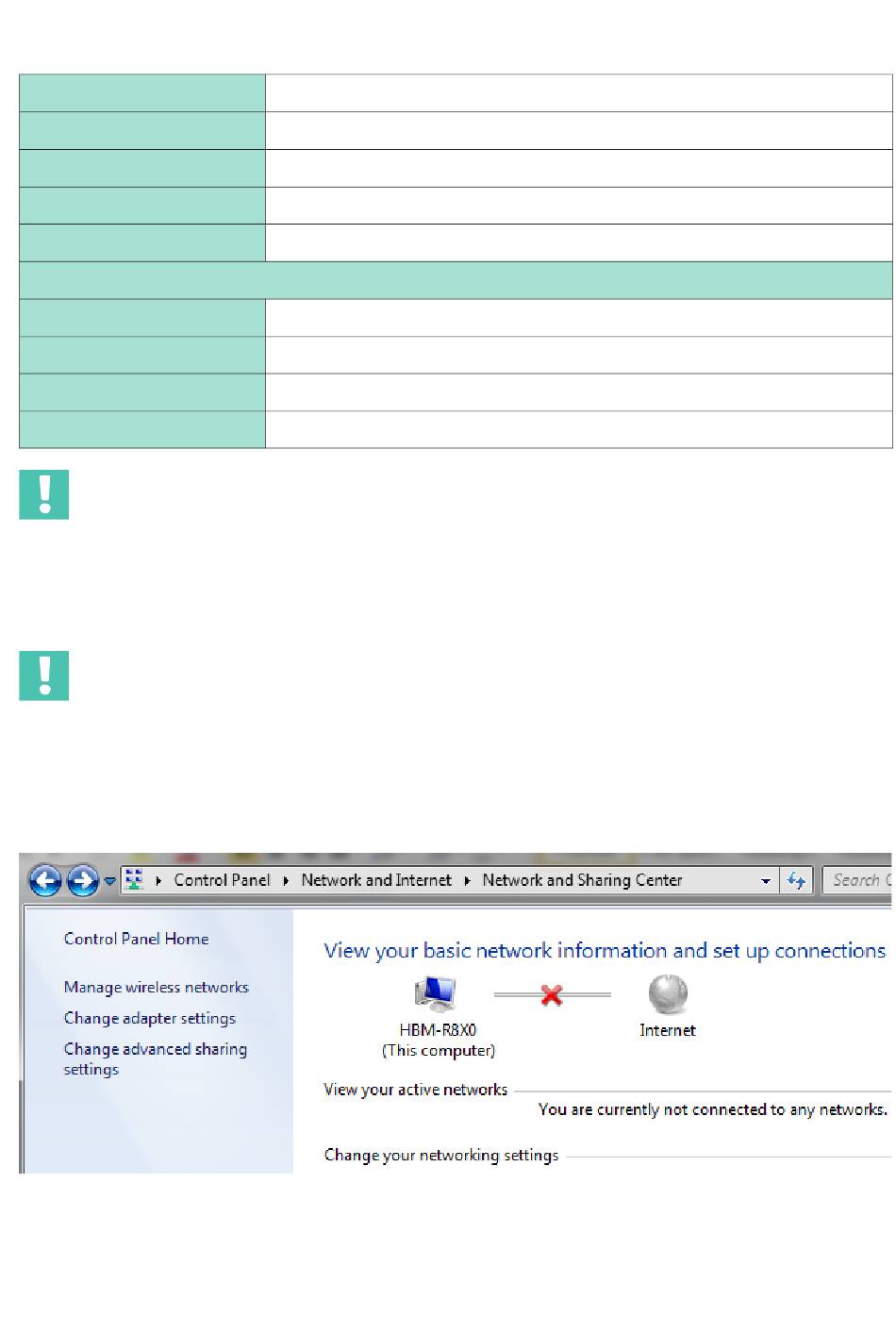

You can find the network settings of your PC, e.g. in Windows 7 at:
Control panel\All control panel elements\Network and sharing center
The network settings must be adapted in order to operate the TIM-EC for the first time.
TIM-EC must be in the same subnet as the network card it is connected to.
TIM-EC
SETTINGS
IP address TIM-EC, Default 192.168.1.2
Default 255.255.255.0
Default 0.0.0.0
Default 0.0.0.0
On/Off
Port of recipient
Selection torque low pass1 or low pass2
Off/On
