10.3.6 Intercommunication

The measured data flow of the T40 stator is made available on the 10+2 interface. Then
it is also available to other torque interface modules. Then incoming torque and rotational
speed values on the interface modules can be individually configured and parameterized
non- interactively. This setup is useful if the measured values of a torque transducer will
be available in independent networks, for example for the control and automation level.

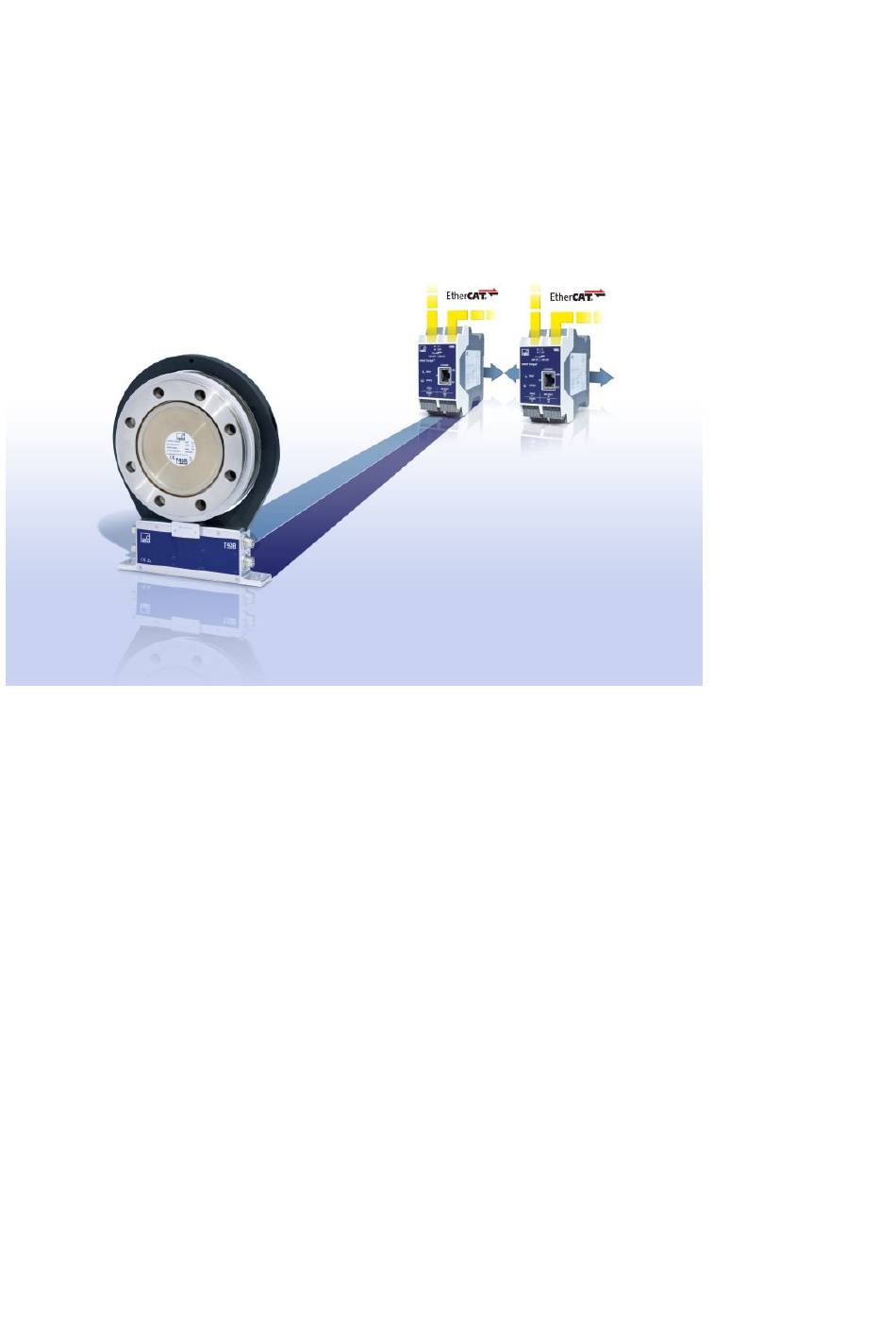

Fig. 10.17 Overview of T40 with TIM-EC modules
This extremely flexible concept also allows a torque transducer to be used in different
fieldbus networks, such as PROFINET and EtherCAT.
