10.3.5 Supporting points approximation

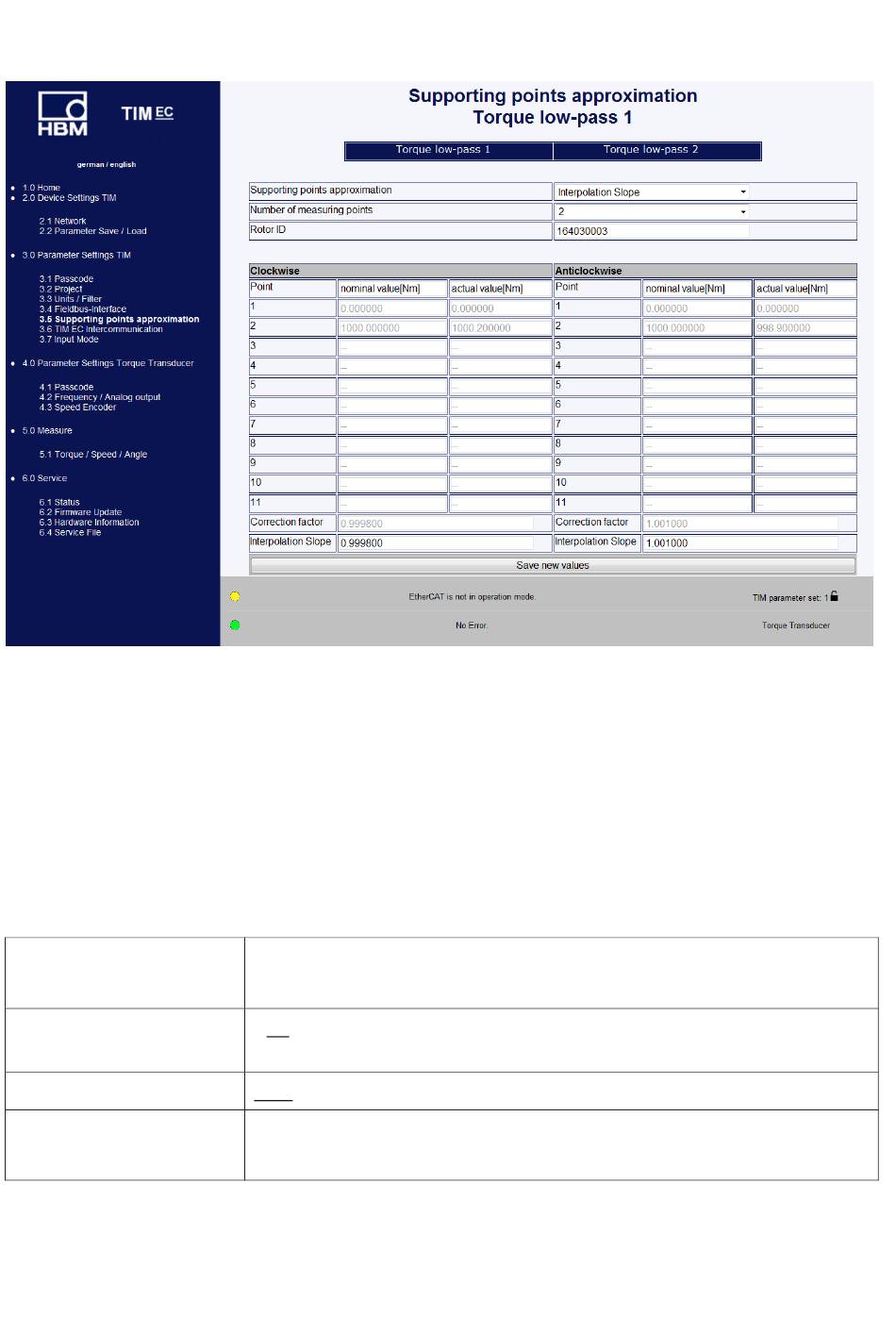

Fig. 10.15 Supporting points approximation
The Supporting points approximation menu can be used to re-adjust the torque. This can
be done either by entering the measured values (interpolation points) or by entering the
gradient. The approximation is only valid for the current rotor (the rotor ID number must
match the connected rotor). The rotor ID is shown on the start page. The Supporting
points approximation parameters are saved in the TIM-EC. These data are not stored in
the parameter set. If the entered rotor ID does not match the connected rotor, then Sup­
porting points approximation will be deactivated.
Supporting points
approximation
Number of
measurement points
Rotor ID No.
Low-pass filter 1
Low-pass filter 2
42
Interpolation gradient
Table
2; 3; 5; 7; 9; 11
N/A
ON; OFF
ON; OFF
TIM-EC
SETTINGS
