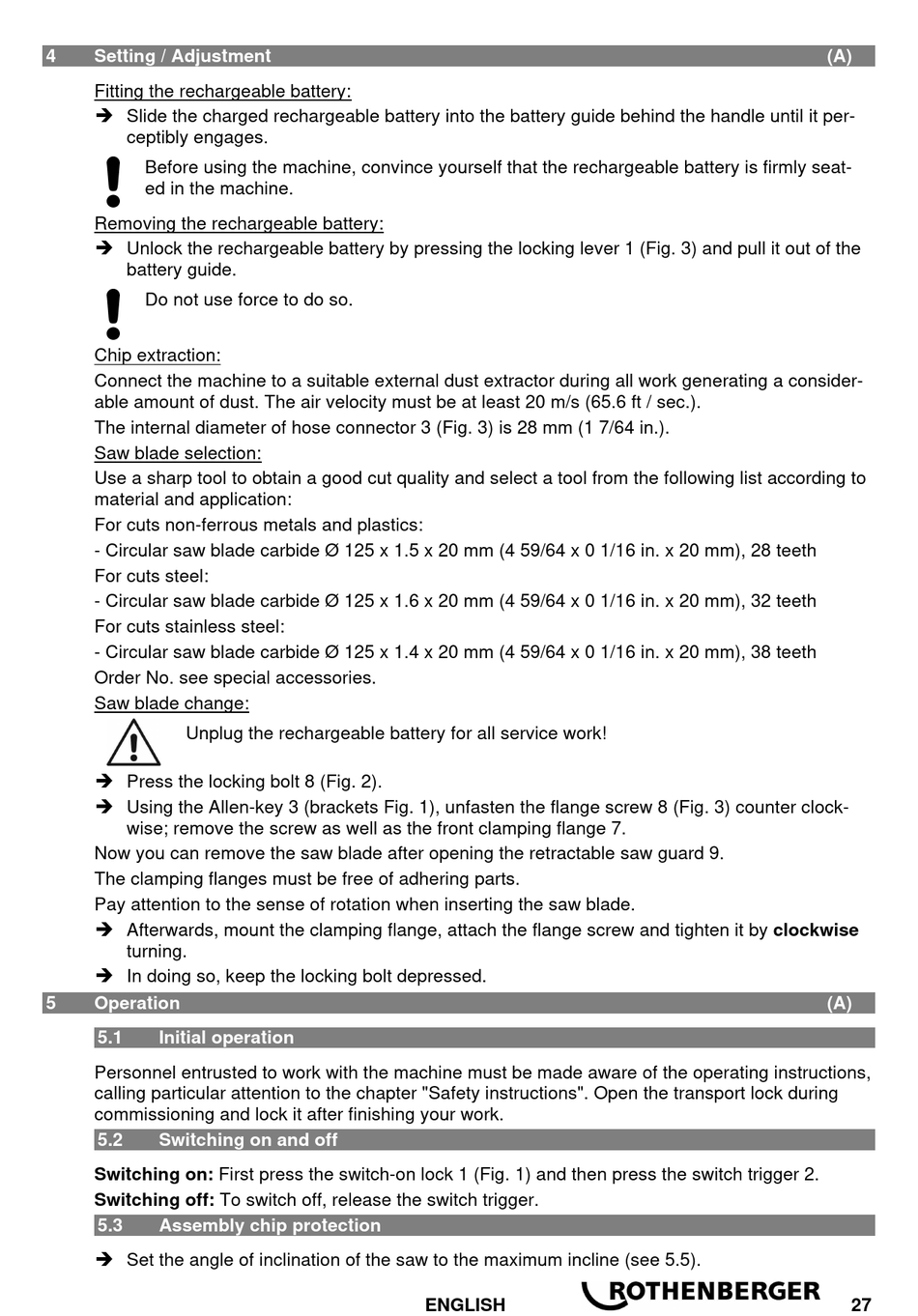

4 Setting / Adjustment
Fitting the rechargeable battery:
 Slide the charged rechargeable battery into the battery guide behind the handle until it per-
ceptibly engages.
Before using the machine, convince yourself that the rechargeable battery is firmly seat-
ed in the machine.
Removing the rechargeable battery:
 Unlock the rechargeable battery by pressing the locking lever 1 (Fig. 3) and pull it out of the
battery guide.
Do not use force to do so.
Chip extraction:
Connect the machine to a suitable external dust extractor during all work generating a consider-
able amount of dust. The air velocity must be at least 20 m/s (65.6 ft / sec.).
The internal diameter of hose connector 3 (Fig. 3) is 28 mm (1 7/64 in.).
Saw blade selection:
Use a sharp tool to obtain a good cut quality and select a tool from the following list according to
material and application:
For cuts non-ferrous metals and plastics:
- Circular saw blade carbide Ø 125 x 1.5 x 20 mm (4 59/64 x 0 1/16 in. x 20 mm), 28 teeth
For cuts steel:
- Circular saw blade carbide Ø 125 x 1.6 x 20 mm (4 59/64 x 0 1/16 in. x 20 mm), 32 teeth
For cuts stainless steel:
- Circular saw blade carbide Ø 125 x 1.4 x 20 mm (4 59/64 x 0 1/16 in. x 20 mm), 38 teeth
Order No. see special accessories.
Saw blade change:
Unplug the rechargeable battery for all service work!
 Press the locking bolt 8 (Fig. 2).
 Using the Allen-key 3 (brackets Fig. 1), unfasten the flange screw 8 (Fig. 3) counter clock-
wise; remove the screw as well as the front clamping flange 7.
Now you can remove the saw blade after opening the retractable saw guard 9.
The clamping flanges must be free of adhering parts.
Pay attention to the sense of rotation when inserting the saw blade.
 Afterwards, mount the clamping flange, attach the flange screw and tighten it by clockwise
turning.
 In doing so, keep the locking bolt depressed.
5 Operation
5.1

Initial operation

Personnel entrusted to work with the machine must be made aware of the operating instructions,
calling particular attention to the chapter "Safety instructions". Open the transport lock during
commissioning and lock it after finishing your work.
5.2

Switching on and off

Switching on: First press the switch-on lock 1 (Fig. 1) and then press the switch trigger 2.
Switching off: To switch off, release the switch trigger.
5.3

Assembly chip protection

 Set the angle of inclination of the saw to the maximum incline (see 5.5).
