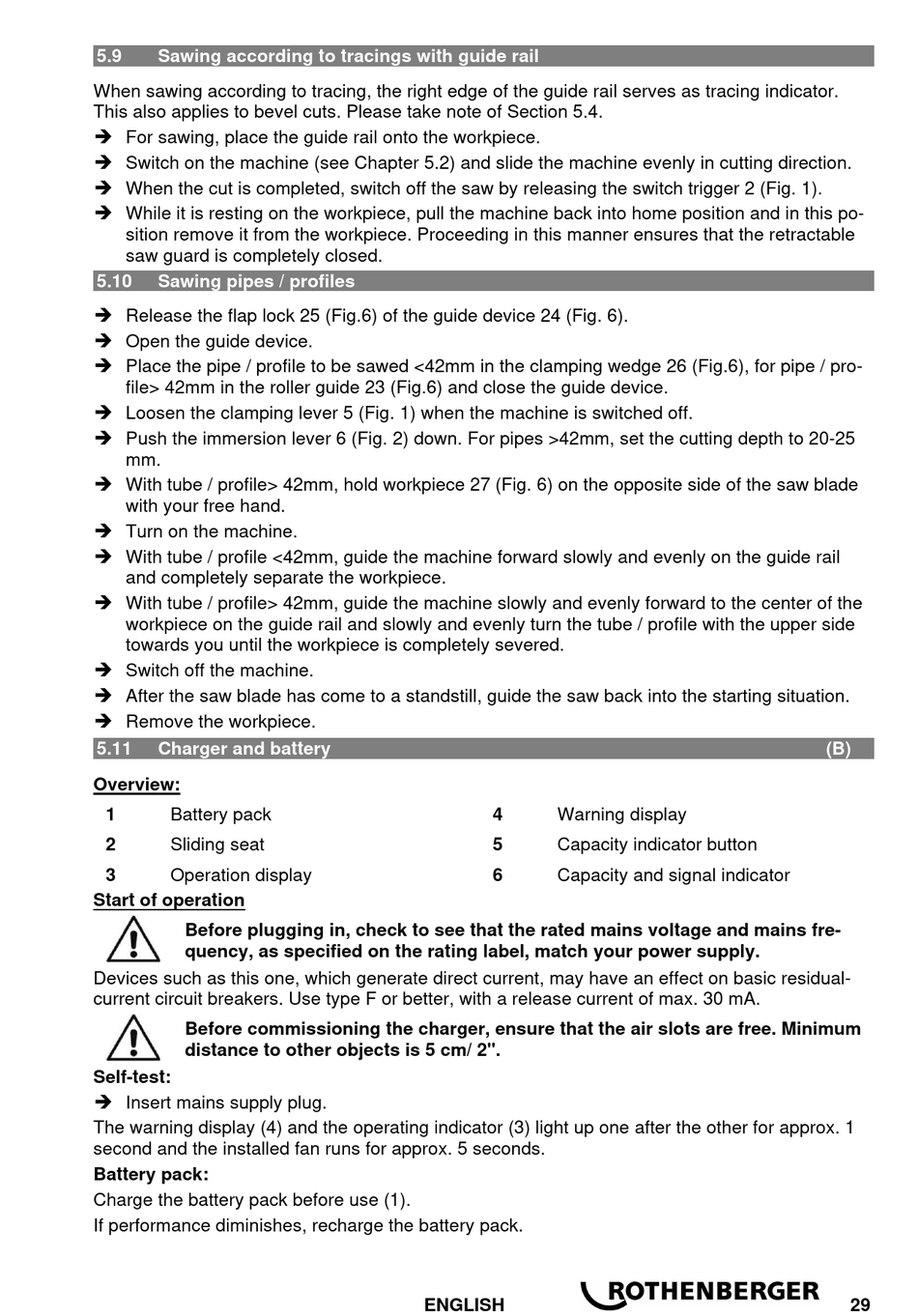

5.9

Sawing according to tracings with guide rail

When sawing according to tracing, the right edge of the guide rail serves as tracing indicator.
This also applies to bevel cuts. Please take note of Section 5.4.
 For sawing, place the guide rail onto the workpiece.
 Switch on the machine (see Chapter 5.2) and slide the machine evenly in cutting direction.
 When the cut is completed, switch off the saw by releasing the switch trigger 2 (Fig. 1).
 While it is resting on the workpiece, pull the machine back into home position and in this po-
sition remove it from the workpiece. Proceeding in this manner ensures that the retractable
saw guard is completely closed.
5.10

Sawing pipes / profiles

 Release the flap lock 25 (Fig.6) of the guide device 24 (Fig. 6).
 Open the guide device.
 Place the pipe / profile to be sawed <42mm in the clamping wedge 26 (Fig.6), for pipe / pro-
file> 42mm in the roller guide 23 (Fig.6) and close the guide device.
 Loosen the clamping lever 5 (Fig. 1) when the machine is switched off.
 Push the immersion lever 6 (Fig. 2) down. For pipes >42mm, set the cutting depth to 20-25
mm.
 With tube / profile> 42mm, hold workpiece 27 (Fig. 6) on the opposite side of the saw blade
with your free hand.
 Turn on the machine.
 With tube / profile <42mm, guide the machine forward slowly and evenly on the guide rail
and completely separate the workpiece.
 With tube / profile> 42mm, guide the machine slowly and evenly forward to the center of the
workpiece on the guide rail and slowly and evenly turn the tube / profile with the upper side
towards you until the workpiece is completely severed.
 Switch off the machine.
 After the saw blade has come to a standstill, guide the saw back into the starting situation.
 Remove the workpiece.
5.11 Charger and battery
Overview:
Battery pack
1
Sliding seat
2
Operation display
3
Start of operation
Before plugging in, check to see that the rated mains voltage and mains fre-
quency, as specified on the rating label, match your power supply.
Devices such as this one, which generate direct current, may have an effect on basic residual-
current circuit breakers. Use type F or better, with a release current of max. 30 mA.
Before commissioning the charger, ensure that the air slots are free. Minimum
distance to other objects is 5 cm/ 2".
Self-test:
 Insert mains supply plug.
The warning display (4) and the operating indicator (3) light up one after the other for approx. 1
second and the installed fan runs for approx. 5 seconds.
Battery pack:
Charge the battery pack before use (1).
If performance diminishes, recharge the battery pack.
Warning display
4
Capacity indicator button
5
Capacity and signal indicator
6
