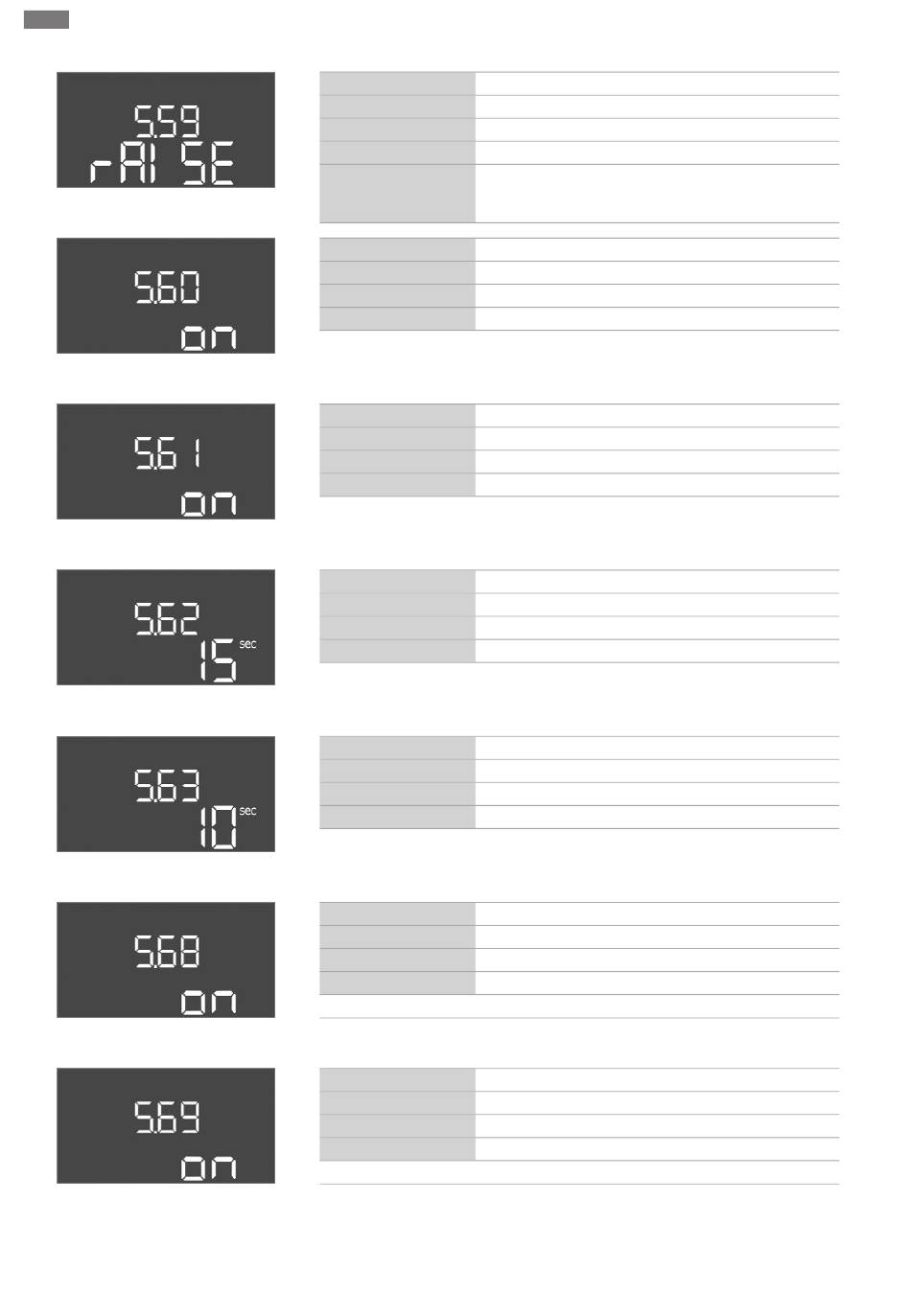

Fig. 45: Menu 5.59
Fig. 46: Menu 5.60
Fig. 47: Menu 5.61
Fig. 48: Menu 5.62
Fig. 49: Menu 5.63
Fig. 50: Menu 5.68
Fig. 51: Menu 5.69
72
All manuals and user guides at all-guides.com
Commissioning
Menu no.
Description
Value range
Factory setting
Explanation
Menu no.
Description
Value range
Factory setting
Menu no.
Description
Value range
Factory setting
Menu no.
Description
Value range
Factory setting
Menu no.
Description
Value range
Factory setting
Menu no.
Description
Value range
Factory setting
NOTICE! Switch off during alternating current connection!
Menu no.
Description
Value range
Factory setting
NOTICE! Switch off during alternating current connection!
5.59
Collective fault signal (SSM) function
fall, raise
raise
"fall": The relay drops out. This function can be used to
monitor the mains voltage supply.
"raise": The relay picks up.
5.60
Pump cycling
on, off
on
5.61 (Control ECe-Booster only)
Zero-flow test
on, off
on
5.62
Dry-running protection: Switch-off time delay
0 ... 180 s
15 s
5.63
Dry-running protection: Reactivation time delay
0 ... 1800 s
10 s
5.68 (Control EC-Booster only)
Mains connection rotating field monitoring On/Off
on, off
on
5.69 (Control EC-Booster only)
Motor current monitoring On/Off
on, off
on
