Wilo Control EC-Booster Einbau- Und Betriebsanleitung Seite 71

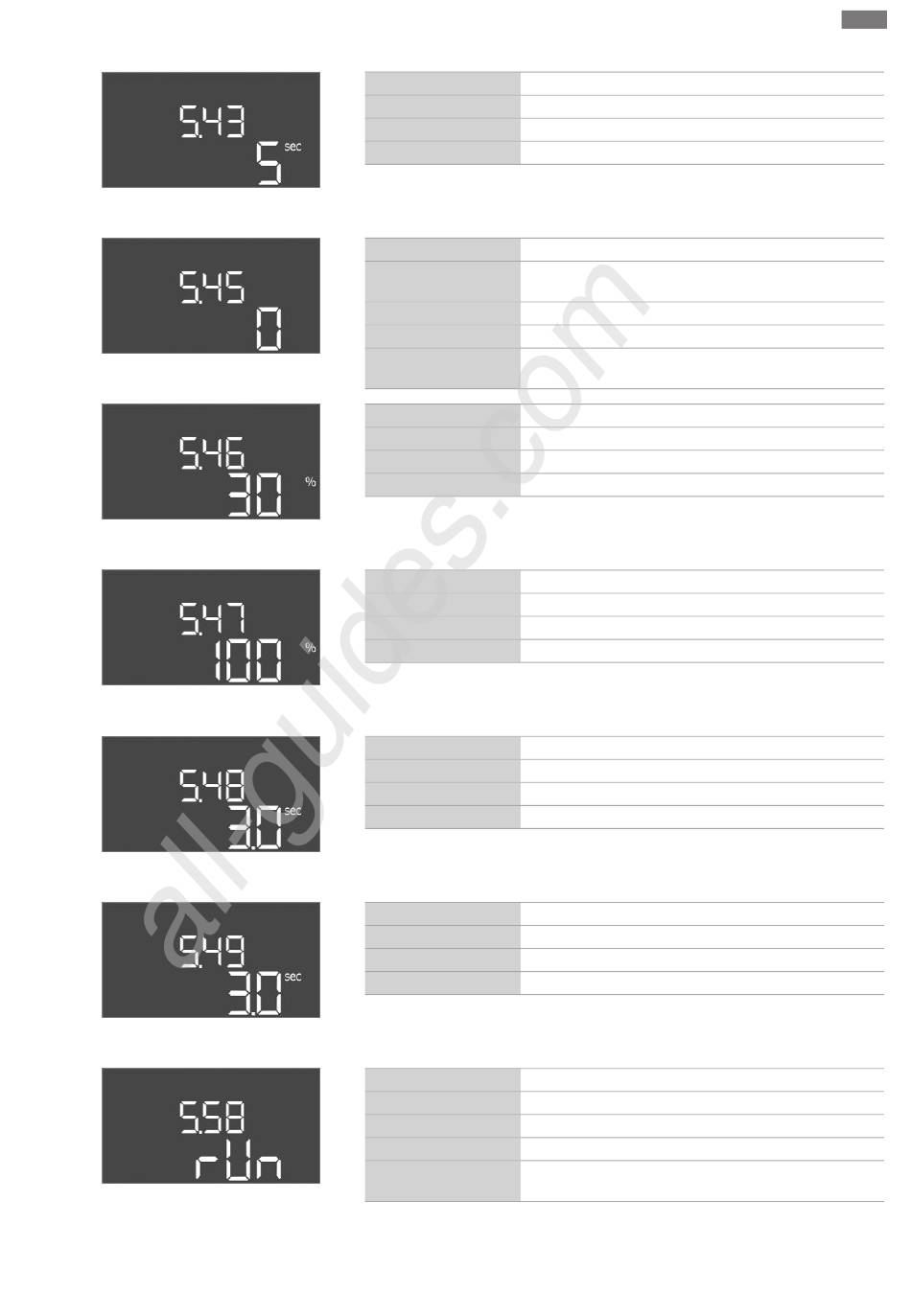

Fig. 38: Menu 5.43
Fig. 39: Menu 5.45
Fig. 40: Menu 5.46
Fig. 41: Menu 5.47
Fig. 42: Menu 5.48
Fig. 43: Menu 5.49
Fig. 44: Menu 5.58
Installation and operating instructions Wilo-Control EC/ECe-Booster
All manuals and user guides at all-guides.com
Commissioning
Menu no.
Description
Value range
Factory setting
Menu no.
Description
Value range
Factory setting
Explanation
Menu no.
Description
Value range
Factory setting
Menu no.
Description
Value range
Factory setting
Menu no.
Description
Value range
Factory setting
Menu no.
Description
Value range
Factory setting
Menu no.
Description
Value range
Factory setting
Explanation
5.43
"Pump kick" running time
0 ... 60 s
5 s
5.45
Behaviour during sensor fault – number of pumps to be
switched on
0 ... 3*
0
* Maximum value dependent on number of pumps set
(Menu 5.02).
5.46 (Control ECe-Booster only)
Minimum speed of the pumps
0 ... 50 %
30 %
5.47 (Control ECe-Booster only)
Maximum pump speed
80 ... 100 %
100 %
5.48 (Control ECe-Booster only)
Acceleration ramp for frequency converter
0 ... 10 s
3 s
5.49 (Control ECe-Booster only)
Deceleration ramp for frequency converter
0 ... 10 s
3 s
5.58
Collective run signal (SBM) function
on, run
run
"on": switchgear ready for operation
"Run": At least one pump is running.
