72 AVENTICS | HF03/HF02 | 1987765493–BDL–001–AB
Conversion and extension
See Fig. 10
2,5-3 Nm

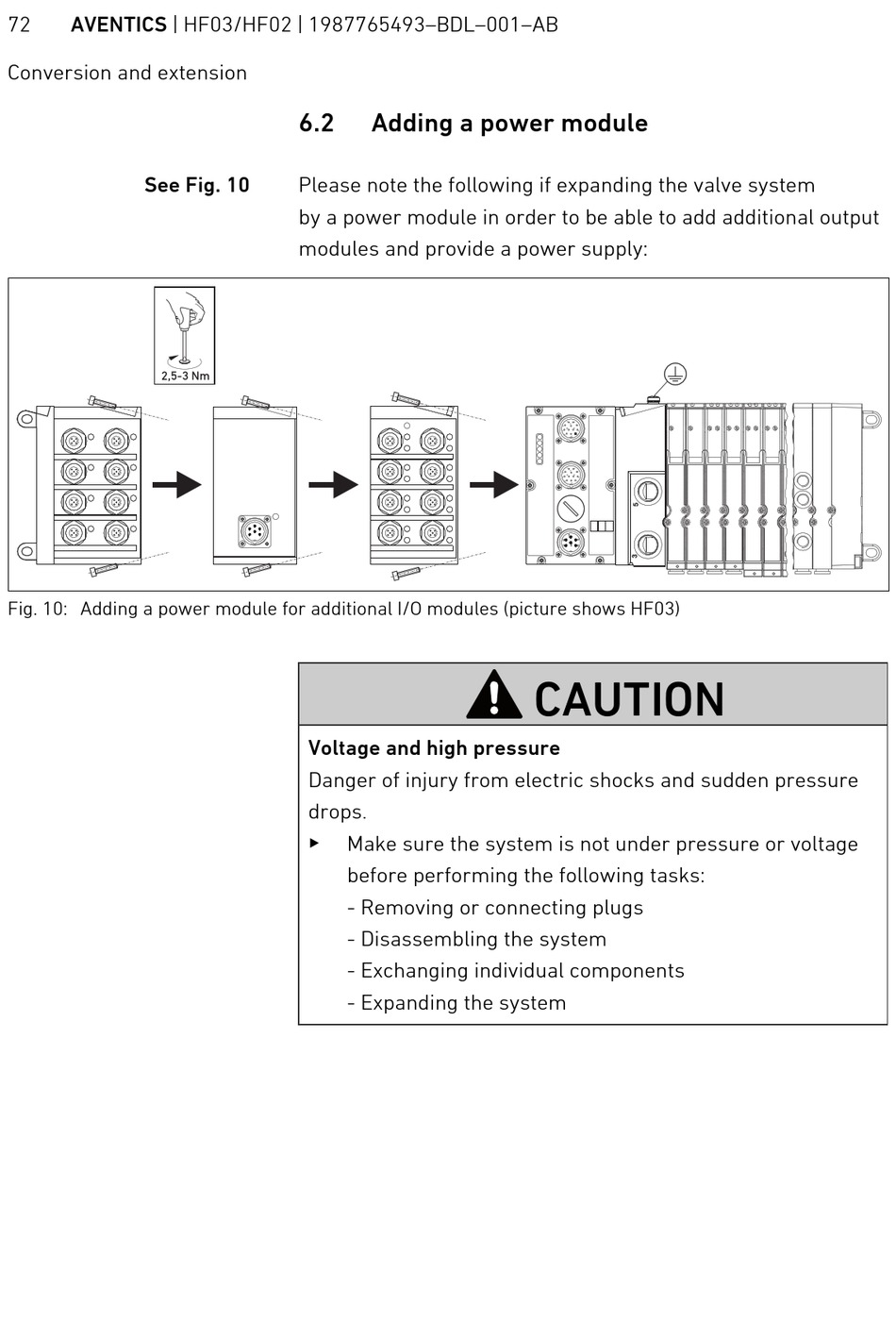

Fig. 10: Adding a power module for additional I/O modules (picture shows HF03)
6.2

Adding a power module

Please note the following if expanding the valve system
by a power module in order to be able to add additional output
modules and provide a power supply:
Voltage and high pressure
Danger of injury from electric shocks and sudden pressure
drops.
O
Make sure the system is not under pressure or voltage
before performing the following tasks:
- Removing or connecting plugs
- Disassembling the system
- Exchanging individual components
- Expanding the system
CAUTION
