50 AVENTICS | HF03/HF02 | 1987765493–BDL–001–AB
System architecture
Multipole valve systems:
W
Series HF03/HF02
W
Bus coupler
series BDC
type V-Design:
– PROFIBUS-DP
– INTERBUS
– DeviceNet
– CANopen
W
type A-Design
– AS-Interface
W
Modules series
DDL
type V-Design:
– DDL/DDL-E

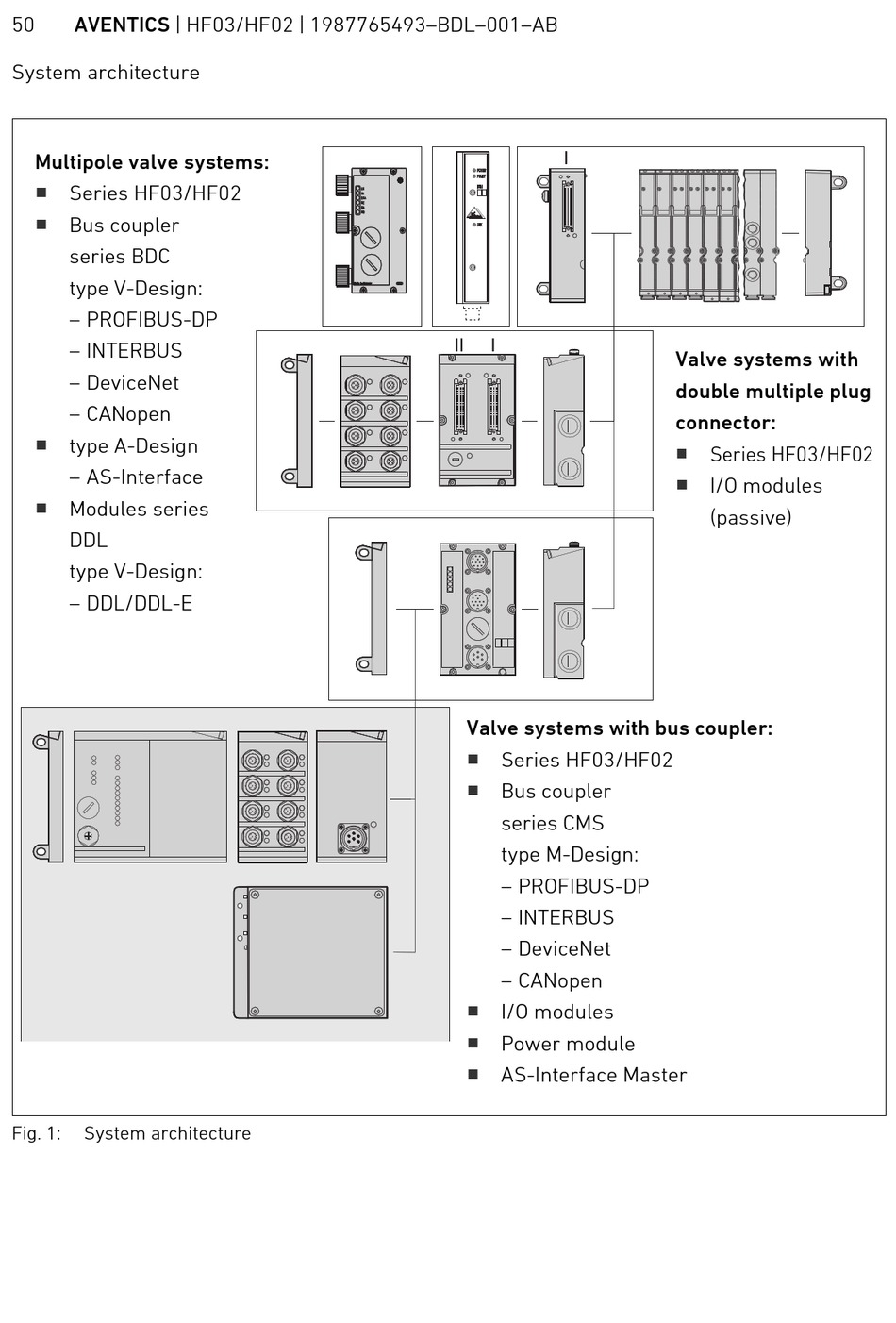

Fig. 1: System architecture
I
II I
Valve systems with bus coupler:
W
Series HF03/HF02
W
Bus coupler
series CMS
type M-Design:
– PROFIBUS-DP
– INTERBUS
– DeviceNet
– CANopen
W
I/O modules
W
Power module
W
AS-Interface Master
Valve systems with
double multiple plug
connector:
W
Series HF03/HF02
W
I/O modules
(passive)
