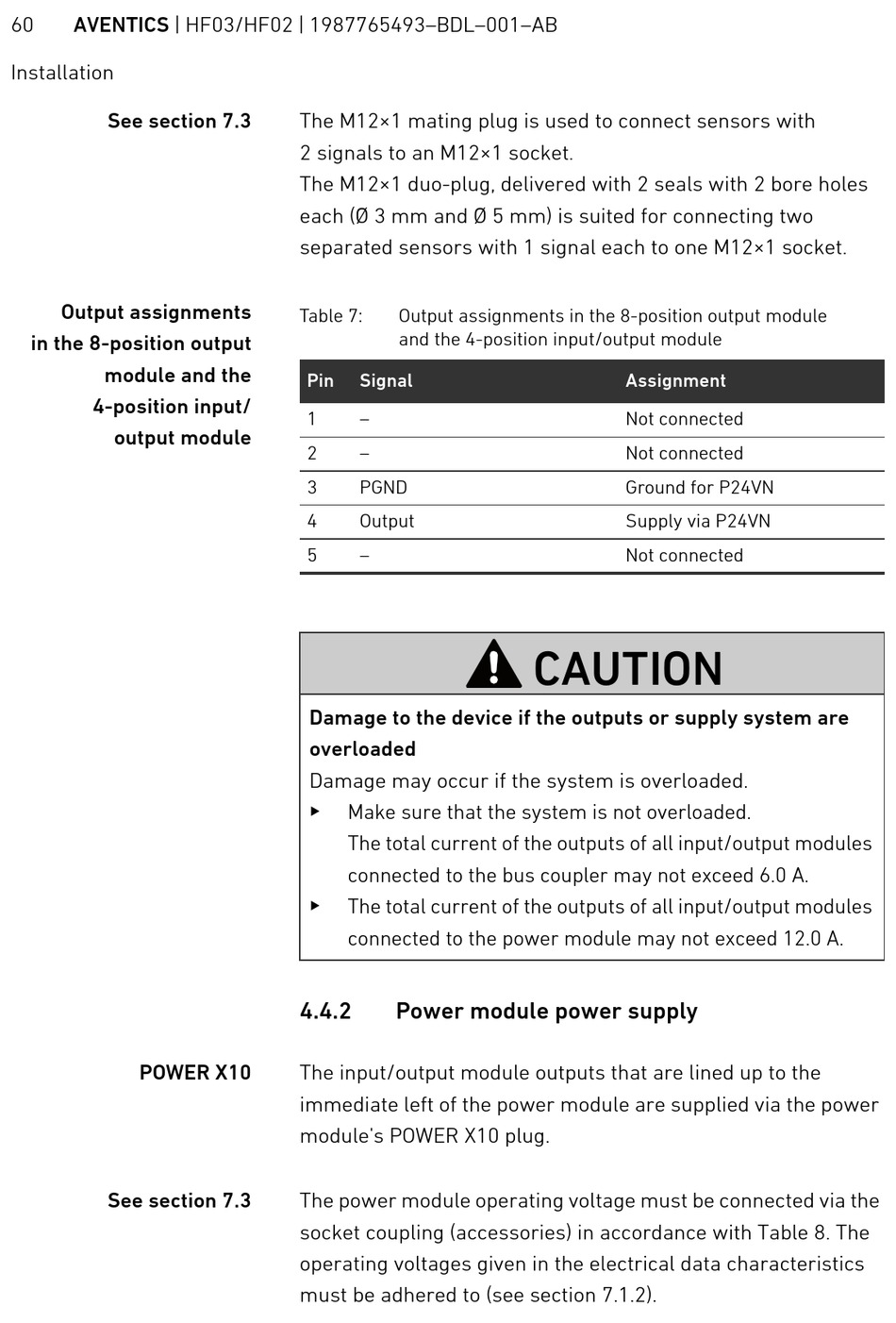

60 AVENTICS | HF03/HF02 | 1987765493–BDL–001–AB
Installation
See section 7.3
Output assignments
in the 8-position output
module and the
4-position input/
output module
POWER X10
See section 7.3
The M12×1 mating plug is used to connect sensors with
2 signals to an M12×1 socket.
The M12×1 duo-plug, delivered with 2 seals with 2 bore holes
each (Ø 3 mm and Ø 5 mm) is suited for connecting two
separated sensors with 1 signal each to one M12×1 socket.
Table 7: Output assignments in the 8-position output module
and the 4-position input/output module
Pin Signal
1 –
2 –
3 PGND
4 Output
5 –
Damage to the device if the outputs or supply system are
overloaded
Damage may occur if the system is overloaded.
O
Make sure that the system is not overloaded.
The total current of the outputs of all input/output modules
connected to the bus coupler may not exceed 6.0 A.
O
The total current of the outputs of all input/output modules
connected to the power module may not exceed 12.0 A.
4.4.2

Power module power supply

The input/output module outputs that are lined up to the
immediate left of the power module are supplied via the power
module's POWER X10 plug.
The power module operating voltage must be connected via the
socket coupling (accessories) in accordance with Table 8. The
operating voltages given in the electrical data characteristics
must be adhered to (see section 7.1.2).
Assignment
Not connected
Not connected
Ground for P24VN
Supply via P24VN
Not connected
CAUTION
