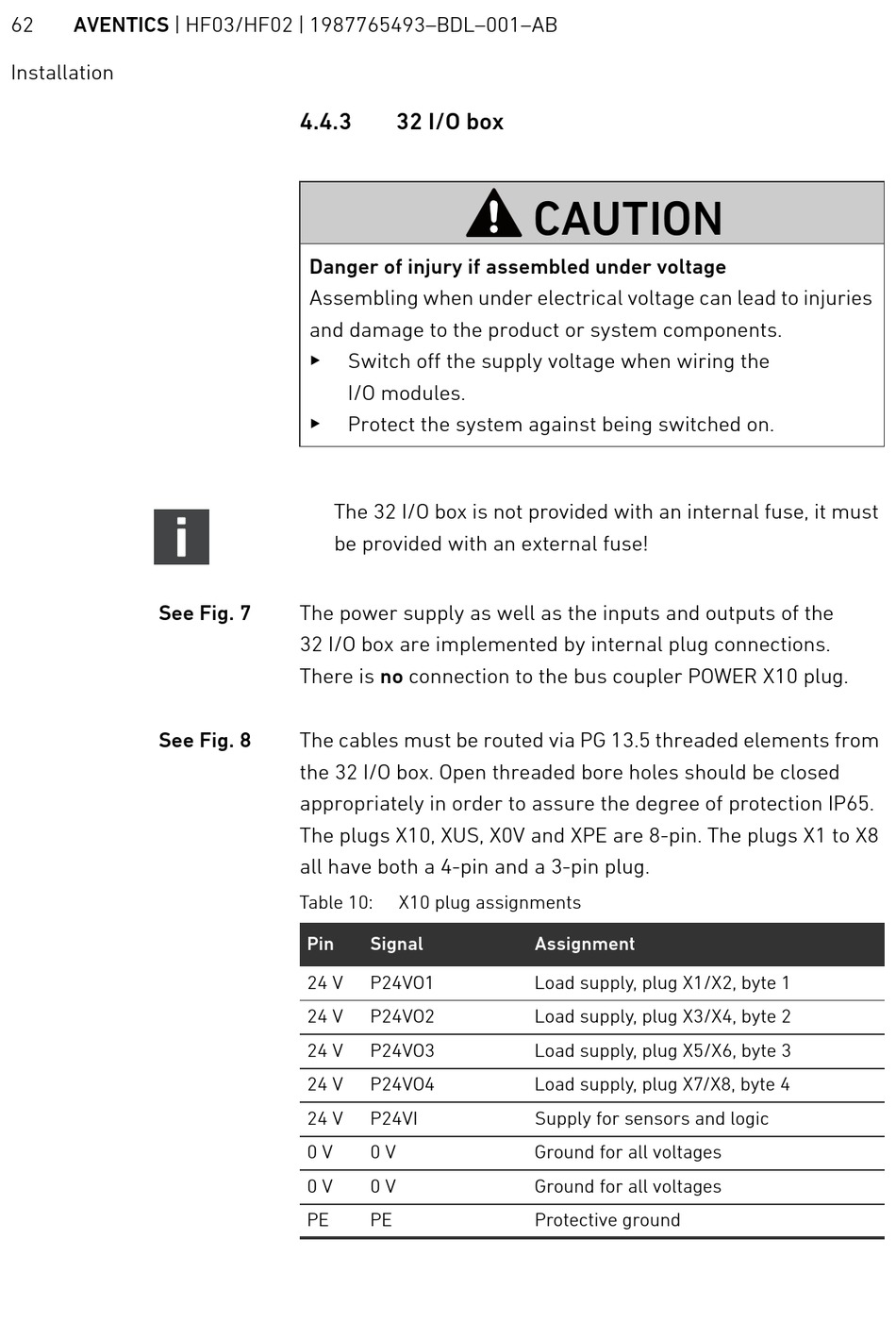

62 AVENTICS | HF03/HF02 | 1987765493–BDL–001–AB
Installation
See Fig. 7
See Fig. 8
4.4.3 32 I/O box
Danger of injury if assembled under voltage
Assembling when under electrical voltage can lead to injuries
and damage to the product or system components.
O
Switch off the supply voltage when wiring the
I/O modules.
O
Protect the system against being switched on.
The 32 I/O box is not provided with an internal fuse, it must
be provided with an external fuse!
The power supply as well as the inputs and outputs of the
32 I/O box are implemented by internal plug connections.
There is no connection to the bus coupler POWER X10 plug.
The cables must be routed via PG 13.5 threaded elements from
the 32 I/O box. Open threaded bore holes should be closed
appropriately in order to assure the degree of protection IP65.
The plugs X10, XUS, X0V and XPE are 8-pin. The plugs X1 to X8
all have both a 4-pin and a 3-pin plug.
Table 10: X10 plug assignments
Pin Signal
24 V P24VO1
24 V P24VO2
24 V P24VO3
24 V P24VO4
24 V P24VI
0 V 0 V
0 V 0 V
PE PE
CAUTION
Assignment
Load supply, plug X1/X2, byte 1
Load supply, plug X3/X4, byte 2
Load supply, plug X5/X6, byte 3
Load supply, plug X7/X8, byte 4
Supply for sensors and logic
Ground for all voltages
Ground for all voltages
Protective ground
