Dimensions
A
n A
1 317
2 333
3 349
4 365
5 381
6 396
7 412
8 428
9 444
10 460
11 475
12 491
13 507
14 523
15 539
16 554
n = No. of valve positions

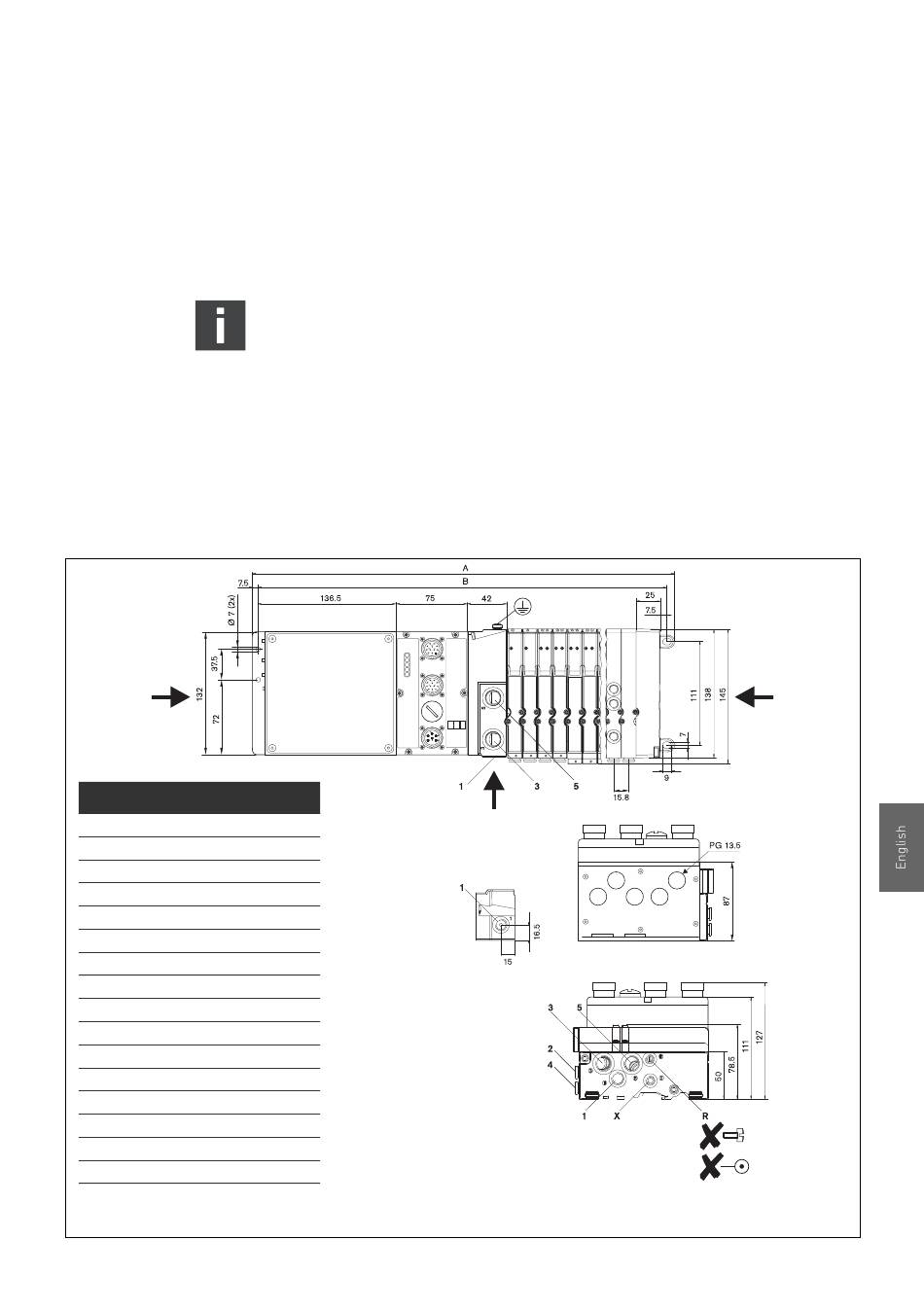

Fig. 3: HF03 dimensioned drawing with a 32 I/O box
AVENTICS | HF03/HF02 | 1987765493–BDL–001–AB
4.1.2

HF03 mounting with a 32 I/O box

The valve system can be mounted in any desired position
with 4 screws (e. g. M6).
Please observe the following points during assembly:
– Note the mounting orientation, as it determines the
permissible ambient temperature.
– Ensure that enough free space is left for the electrical
connections so that the permissible minimum bending
radii are adhered to.
It is not possible to mount it on the DIN rail in systems
with a 32 I/O box!
B
302
318
334
349
365
381
View C
397
412
428
444
460
476
491
507
523
539
C
View A
View B
55
Installation
