Installation

Dimensions
A
n A
1 173
2 189
3 205
4 221
5 237
6 252
7 268
8 284
9 300
10 316
11 331
12 347
13 363
14 379
15 395
16 410
n = No. of valve positions

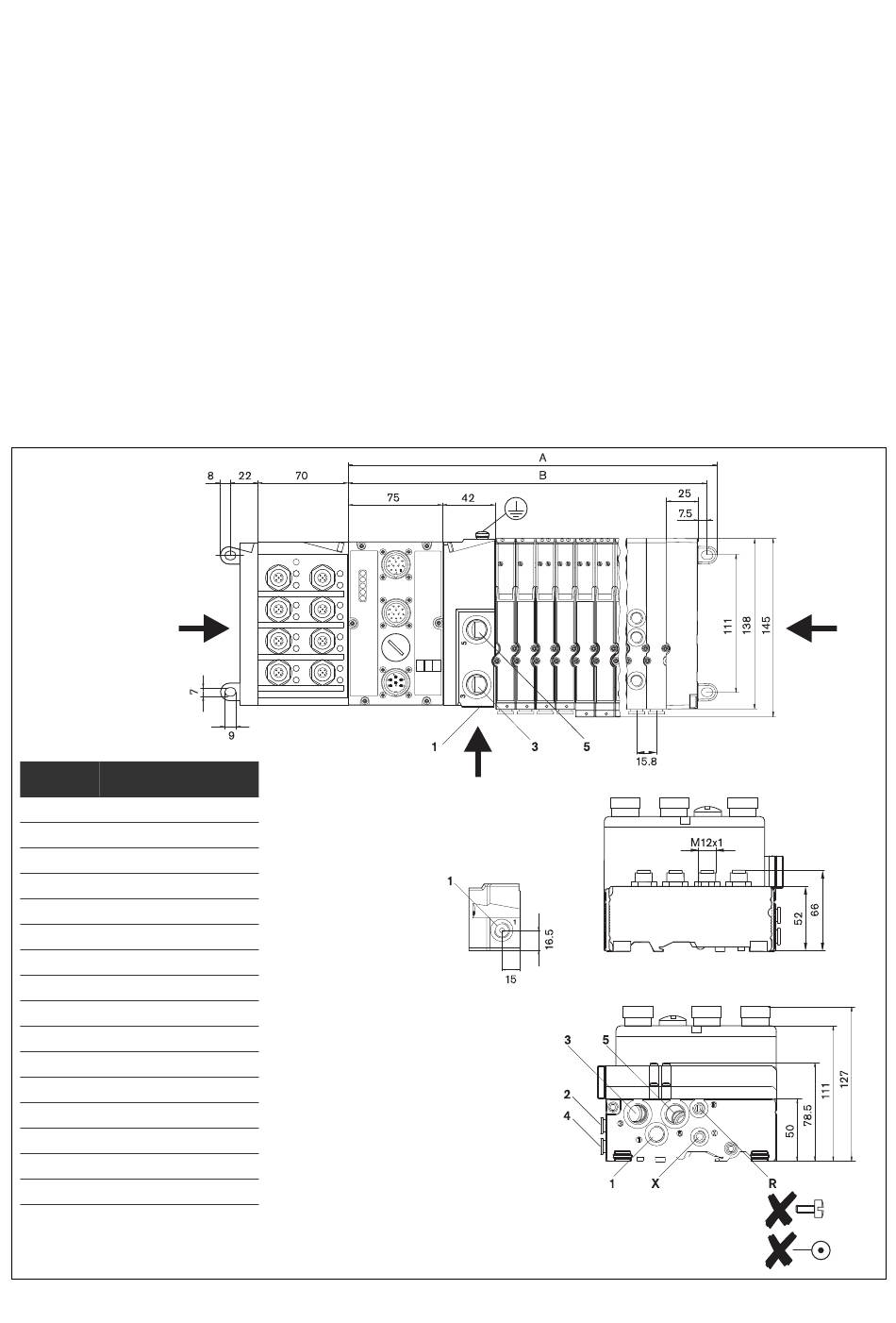

Fig. 2: HF03 dimensioned drawing with I/O modules
4 Installation
4.1

HF03 mounting

4.1.1
The valve system can be mounted in any desired position
with 4 screws (e. g. M6) or placed on a DIN rail, DIN EN 60715,
35 × 15.
IO 1
B
165
181
197
213
229
244
260
276
292
308
323
339
355
371
387
402

HF03 mounting with I/O modules

C
View C
View A
View B
B
