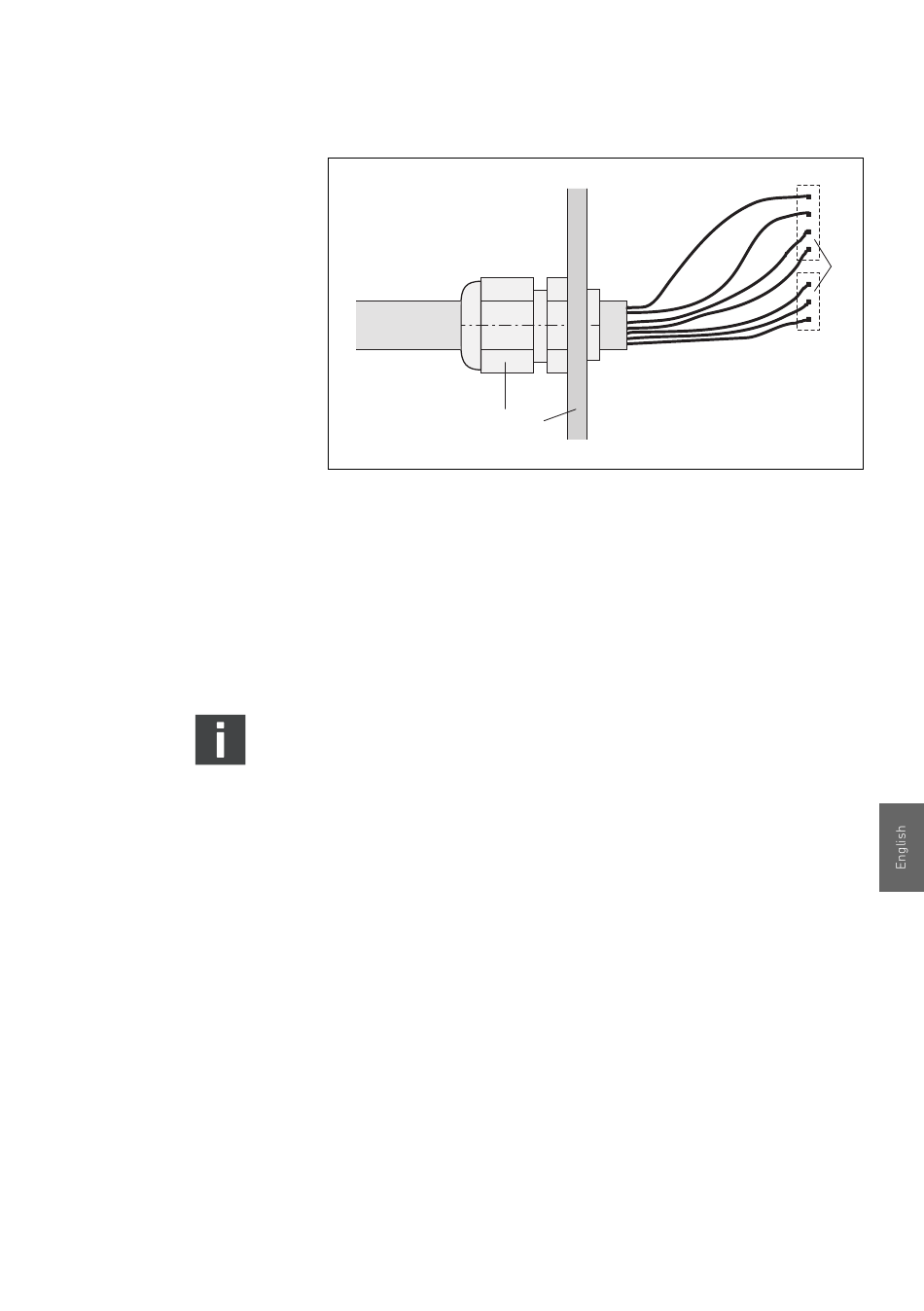

Fig. 8: Cable fed through a PG fitting
1 Fitting, PG 13.5
2 32 I/O box side wall
4.5

Electrical connection

Before the system is put into operation, the bus master
must be configured so that the valves and the input/output
modules are correctly controlled.
Connect the power supply cable and fieldbus cable on the bus
coupler (see the corresponding bus coupler operating
instructions).
Systems with input/output modules:
1. Connect the sensors and actuators to the input/output
modules.
2. If a power module is present: connect the power supply
cable to the power module's POWER X10.
Alternatively with a 32 I/O box:
1. Connect the sensors and actuators to the 32 I/O box.
2. Connect the power supply cable to X10 and if necessary
to XUS, X0V, XPE on the 32 I/O box.
2
3 Plug, e. g. X1
