Installation

Input/output modules

4.3

Labeling

The I/O connections are inscribed directly on the I/O modules.

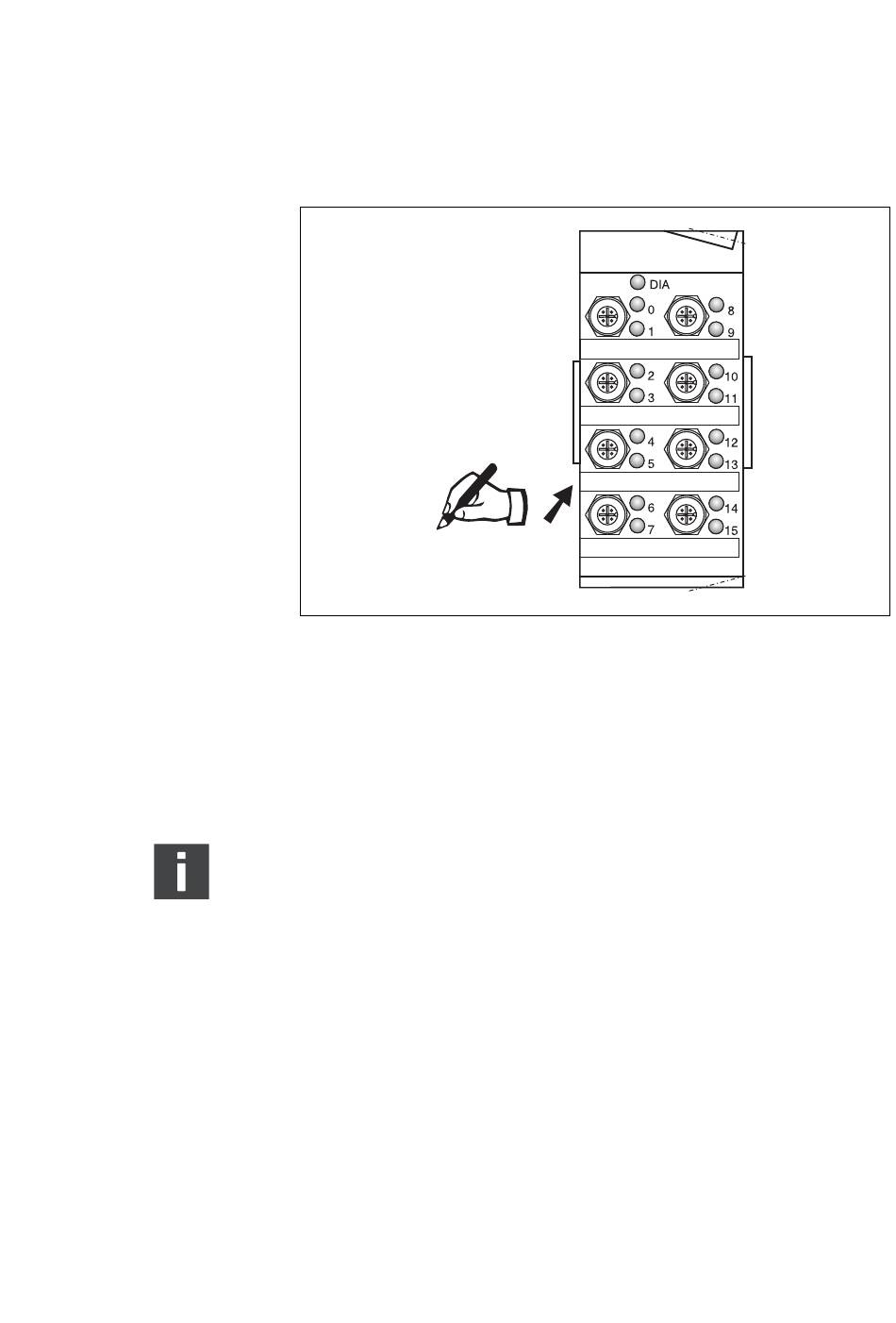

Fig. 6: 16-position I/O module
4.4

Electrical connections

4.4.1 Input/output modules
The total current for all sensor supplies (pin 1) on one valve
system must not exceed 2.0 A.
The electrical inputs and outputs are connected to the
input/output modules with M12 coupling plugs (accessories). In
order to ensure the protection class IP65, unoccupied sockets
should be sealed with the M12×1 protective cap (accessories).
The inputs are to be wired in accordance with Tables 5 and 6,
the outputs in accordance with Table 7.
