Valve system
with bus coupler
and I/O modules
Display
Labeling
POWER X10 plug
Display
AVENTICS | HF03/HF02 | 1987765493–BDL–001–AB

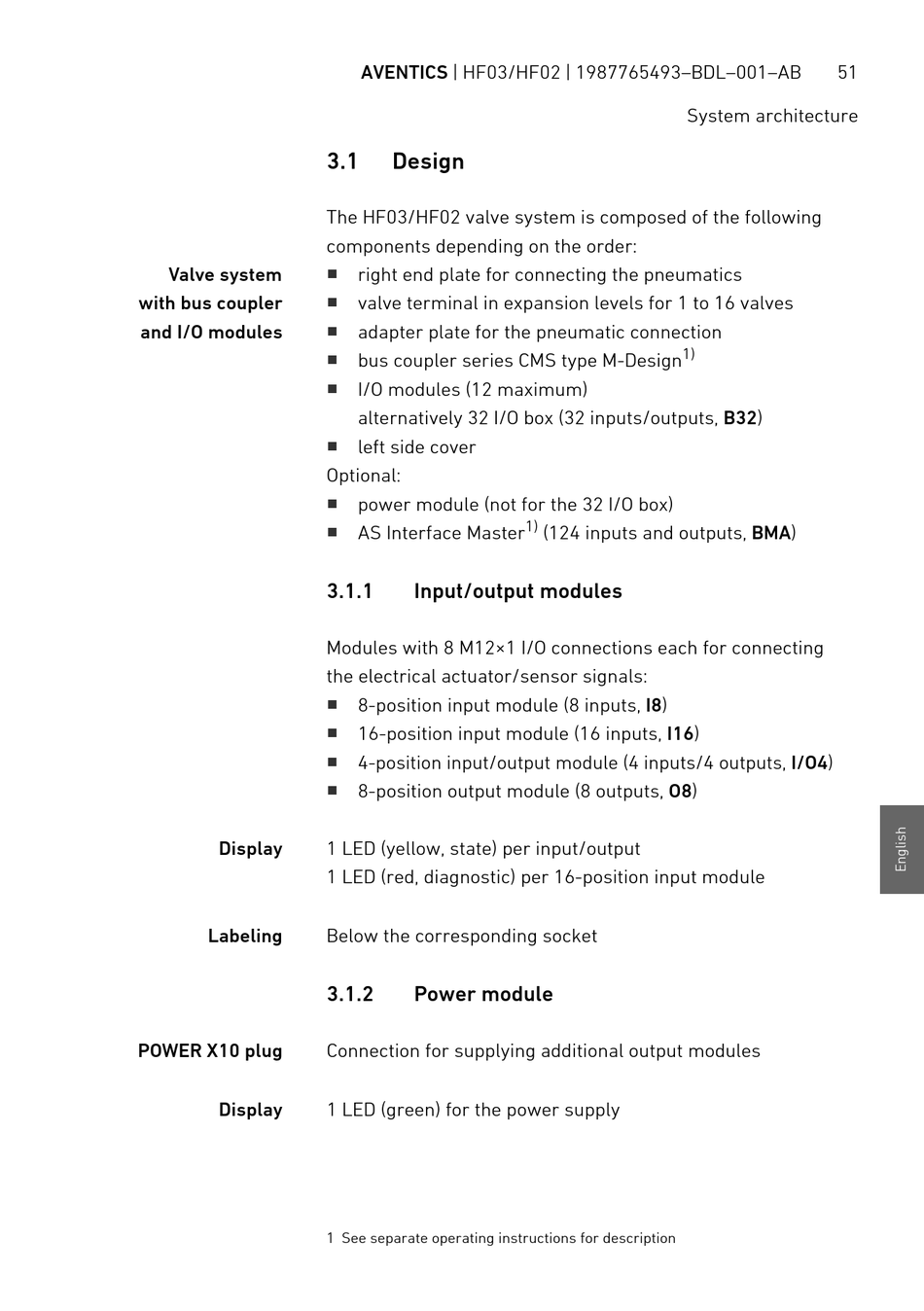

3.1

Design

The HF03/HF02 valve system is composed of the following
components depending on the order:
W
right end plate for connecting the pneumatics
W
valve terminal in expansion levels for 1 to 16 valves
W
adapter plate for the pneumatic connection
W
bus coupler series CMS type M-Design
W
I/O modules (12 maximum)
alternatively 32 I/O box (32 inputs/outputs, B32)
W
left side cover
Optional:
W
power module (not for the 32 I/O box)
W
AS Interface Master
3.1.1

Input/output modules

Modules with 8 M12×1 I/O connections each for connecting
the electrical actuator/sensor signals:
W
8-position input module (8 inputs, I8)
W
16-position input module (16 inputs, I16)
W
4-position input/output module (4 inputs/4 outputs, I/O4)
W
8-position output module (8 outputs, O8)
1 LED (yellow, state) per input/output
1 LED (red, diagnostic) per 16-position input module
Below the corresponding socket
3.1.2

Power module

Connection for supplying additional output modules
1 LED (green) for the power supply
1 See separate operating instructions for description
System architecture
1)
1)
(124 inputs and outputs, BMA)
51
