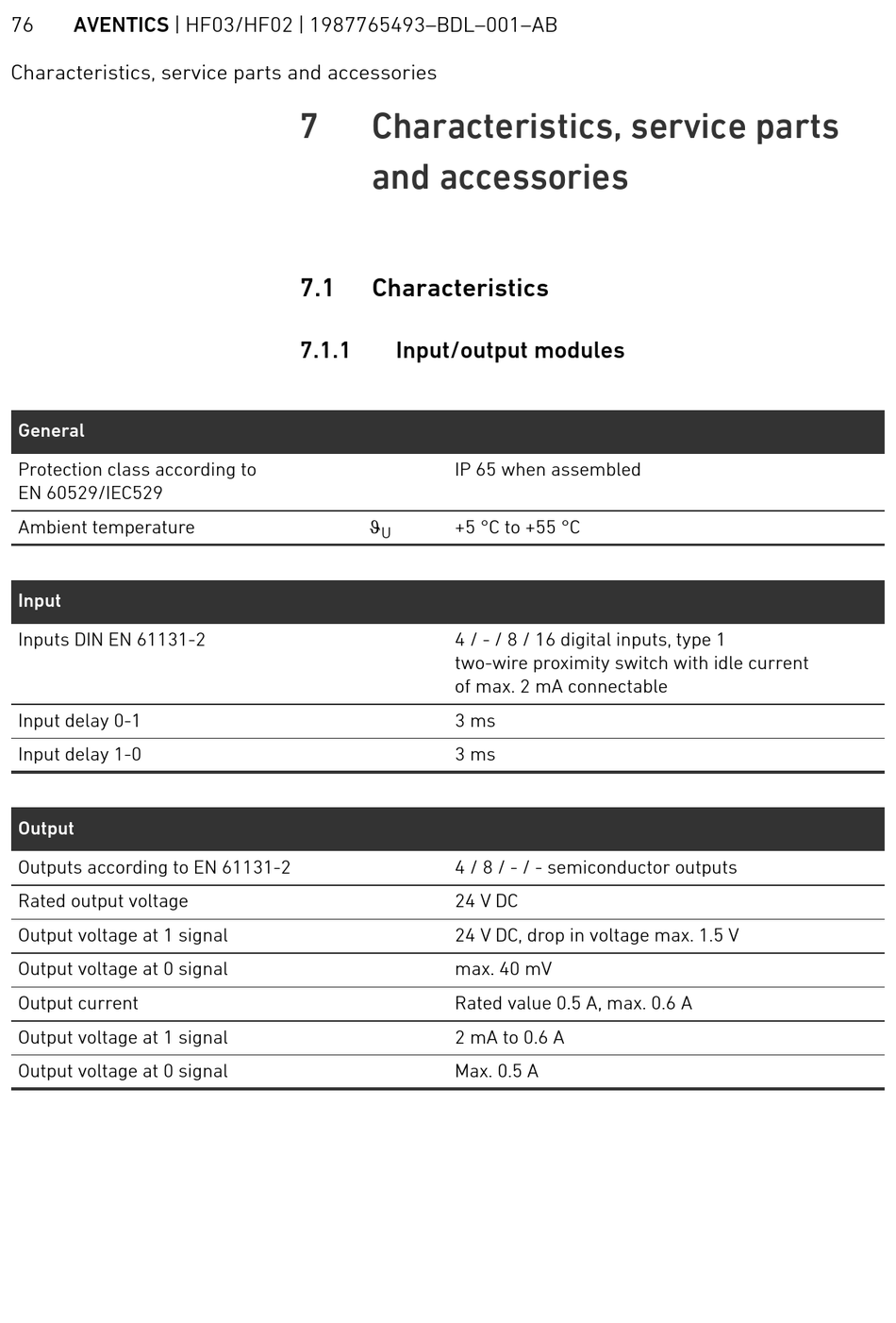

76 AVENTICS | HF03/HF02 | 1987765493–BDL–001–AB

Characteristics, service parts and accessories

General
Protection class according to
EN 60529/IEC529
Ambient temperature
Input
Inputs DIN EN 61131-2
Input delay 0-1
Input delay 1-0
Output
Outputs according to EN 61131-2
Rated output voltage
Output voltage at 1 signal
Output voltage at 0 signal
Output current
Output voltage at 1 signal
Output voltage at 0 signal
7 Characteristics, service parts
and accessories
7.1

Characteristics

7.1.1

Input/output modules

IP 65 when assembled

+5 °C to +55 °C
U
4 / - / 8 / 16 digital inputs, type 1
two-wire proximity switch with idle current
of max. 2 mA connectable
3 ms
3 ms
4 / 8 / - / - semiconductor outputs
24 V DC
24 V DC, drop in voltage max. 1.5 V
max. 40 mV
Rated value 0.5 A, max. 0.6 A
2 mA to 0.6 A
Max. 0.5 A
