Commissioning and Operation
6. Access the "Busmaster Auswahl" (bus master selection)
dialog window.
7. Select the bus master integrated into your controller and
press "OK".
This brings you to the WinDP editor. Here you can configure the
PROFIBUS DP. In the work space of the editor, the first
hierarchical level contains the bus master you specified,
assigned to bus address 1.

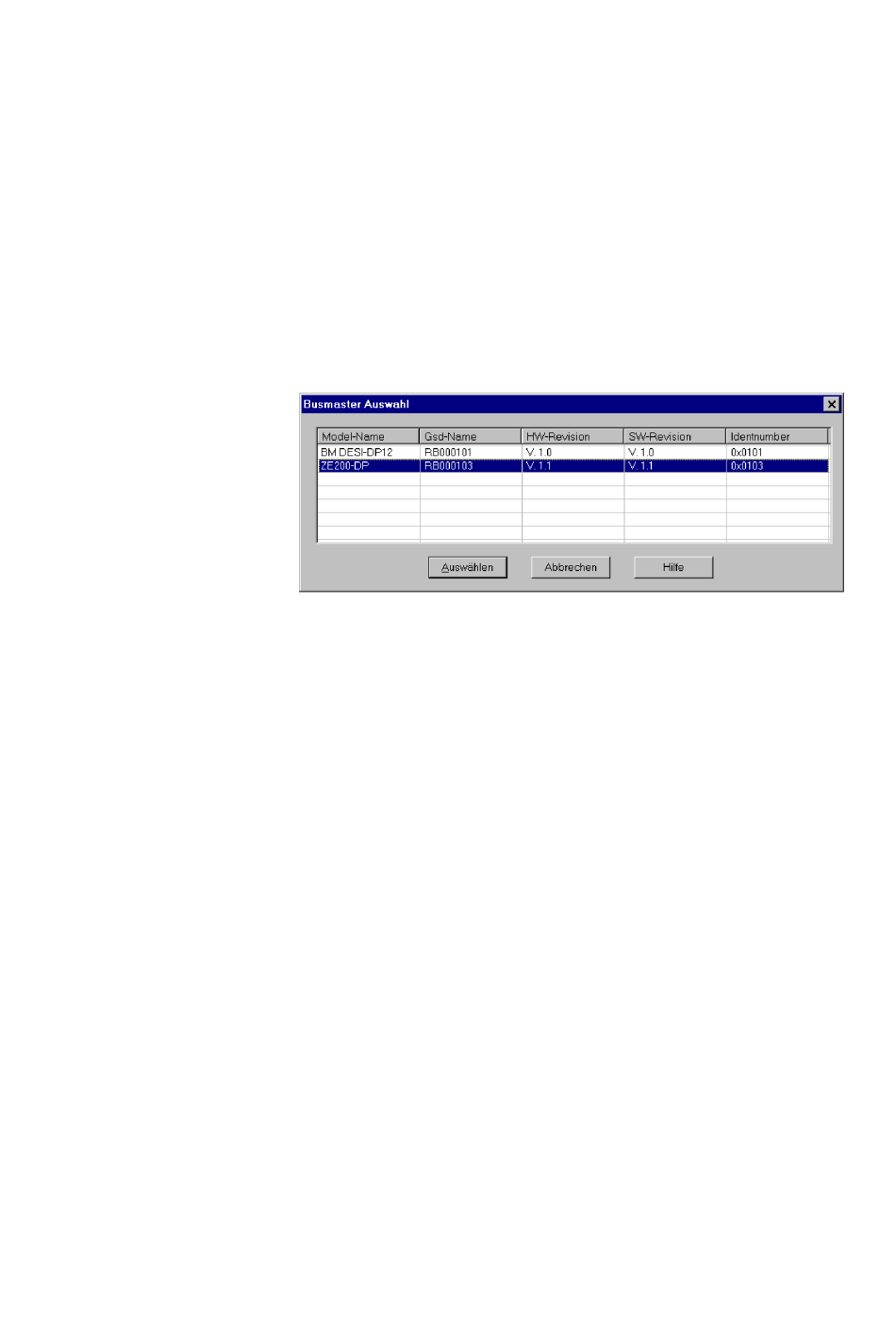

Fig. 12: Bus master selection dialog window

7.2.3 Bus slave configuration

The bus slave window displays all slaves whose device master
data files are stored in the directory which you specified in the
device master data field under "Voreinstellungen WinDP" (WinDP
presettings) (see "Making presettings in WinDP" on page 113).
1. Access the WinDP editor dialog window (see Fig. 13).
