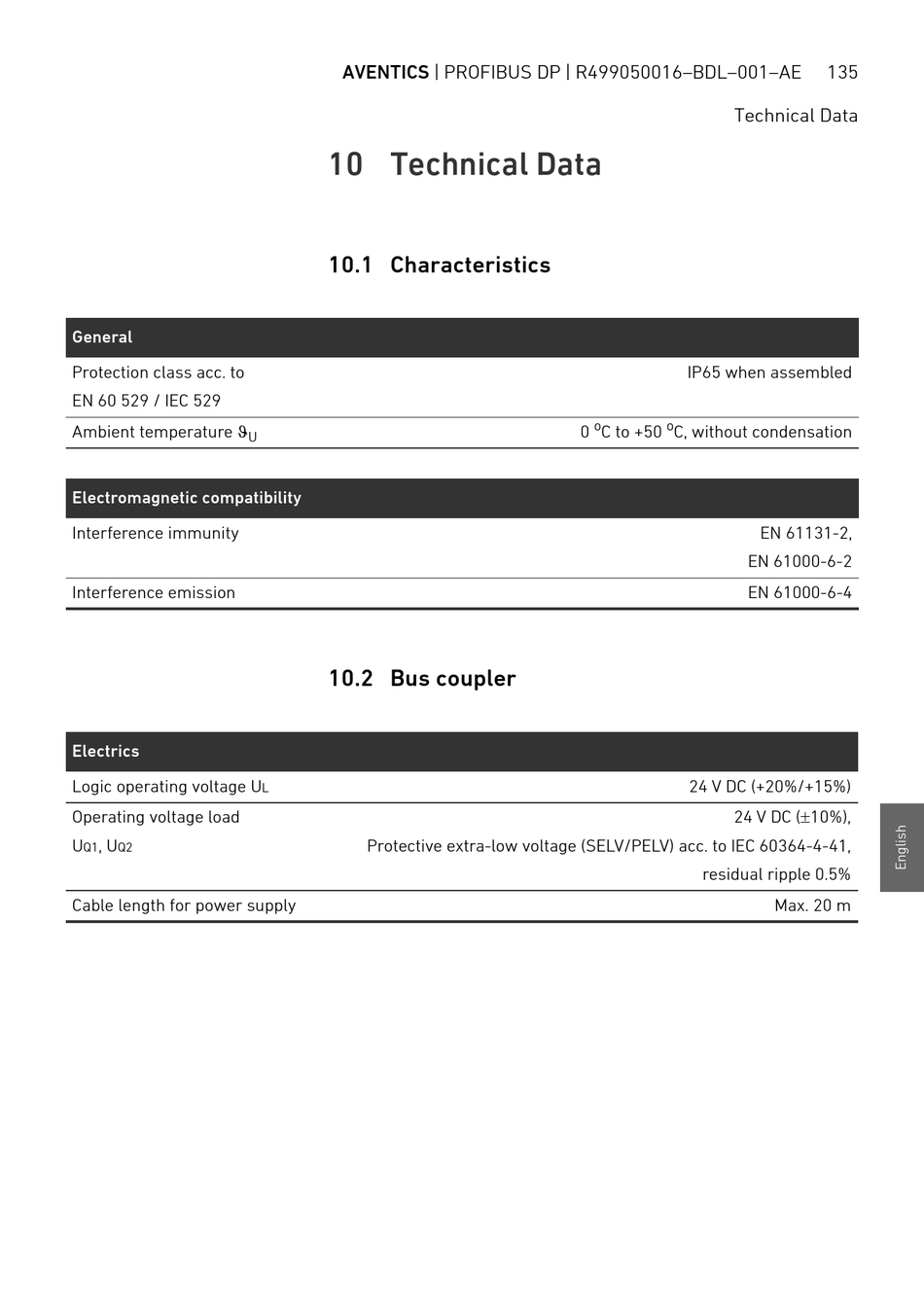

Technical Data; Characteristics; Bus Coupler - Aventics CMS B-Design Betriebsanleitung

General
Protection class acc. to
EN 60 529 / IEC 529
Ambient temperature 
Electromagnetic compatibility
Interference immunity
Interference emission
Electrics
Logic operating voltage U
Operating voltage load
U , U
Q1 Q2
Cable length for power supply
AVENTICS | PROFIBUS DP | R499050016–BDL–001–AE

10 Technical Data

10.1 Characteristics

U

10.2 Bus coupler

L
Protective extra-low voltage (SELV/PELV) acc. to IEC 60364-4-41,
Technical Data
IP65 when assembled
o o
0 C to +50 C, without condensation
EN 61000-6-2
EN 61000-6-4
24 V DC (+20%/+15%)
24 V DC (10%),
residual ripple 0.5%
135
EN 61131-2,
Max. 20 m
