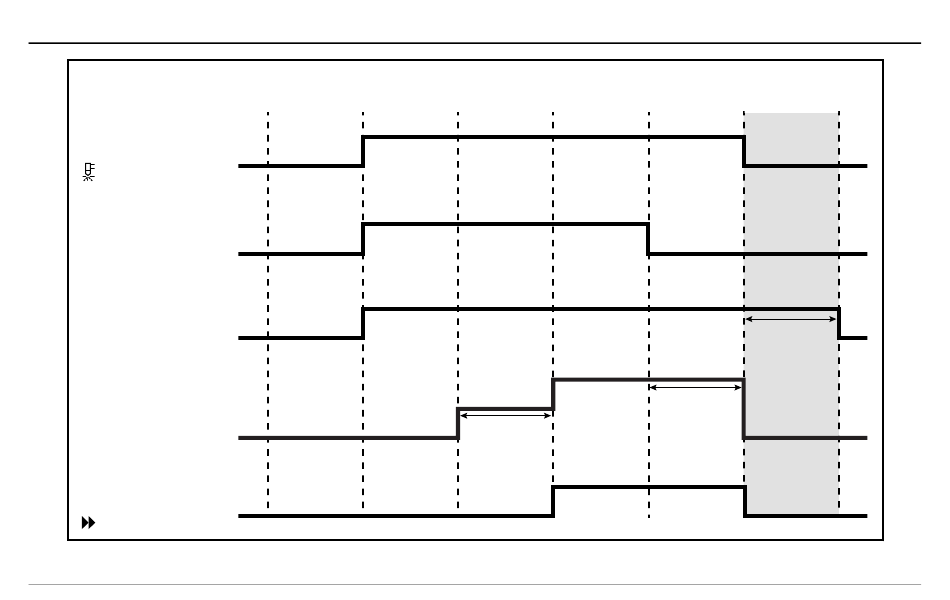

Zeitablauftabelle für Brennerstart
Start signal/torch trigger ON/OFF
icon ON/OFF on status screen
Pilot arc IGBT ON/OFF
Gas solenoid ON/OFF
Inverter output
Transfer relay ON/OFF
icon ON/OFF on status screen
Powermax65/85/105 SYNC Anleitung zur Fehlerbeseitigung
Gas
Idle solenoid opens
810430DE
Transfer
Inverter on and (when work lead
pilot arc established current ≥ 1.6 A)
Pilot arc current
Cutting Start signal OFF/
(steady state) Torch trigger released
Postflow
User set current
8
