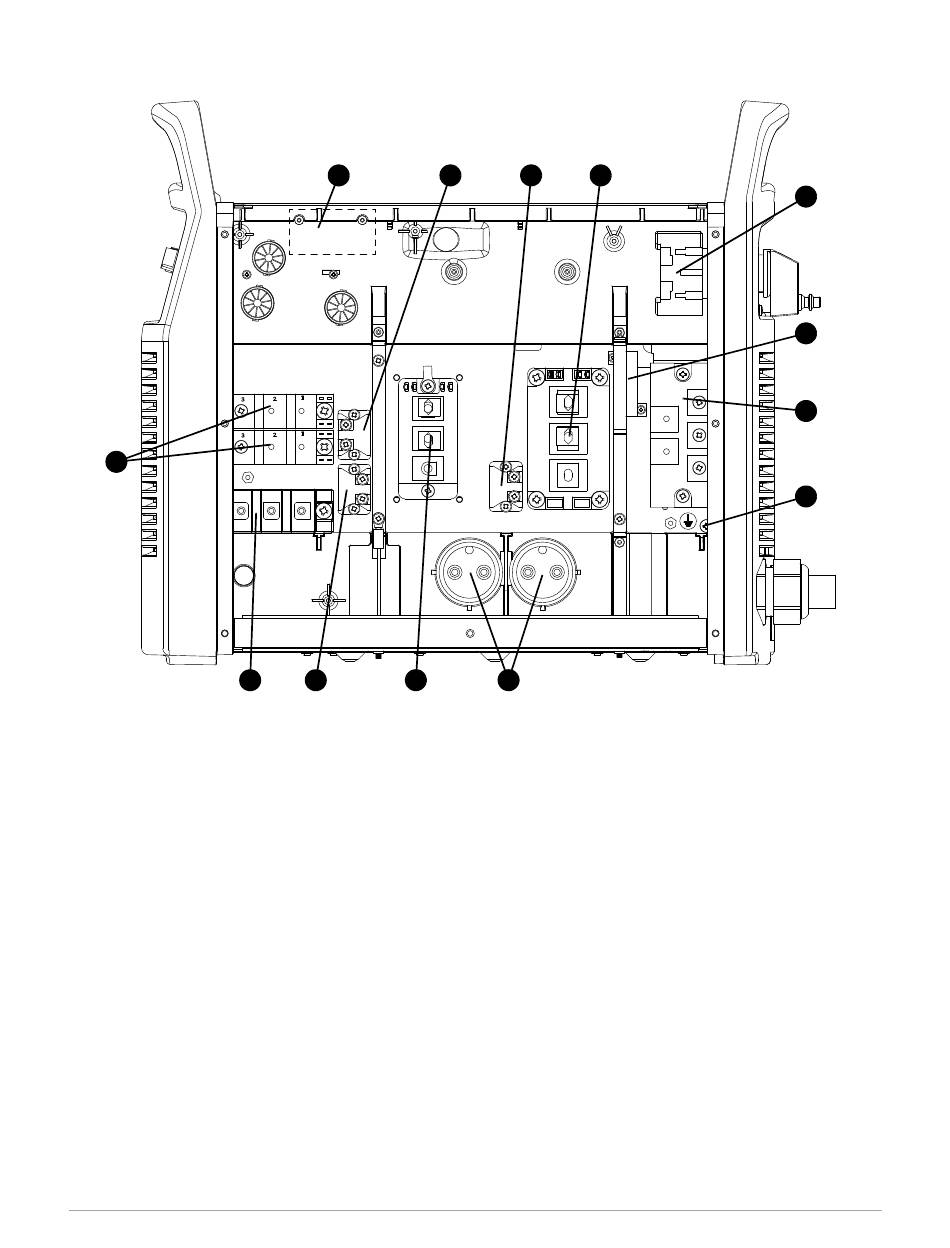

Abb. 42 – 200–600 V CSA Plasma-Stromquelle (ohne Leistungsplatine)
1
2
1 Ausgangs-Diodenbrücke
2 Pilotlichtbogen-IGBT
3 Inverter-Beschaltungswiderstand
4 Inverter-IGBT-Modul
5 Stützkondensatoren
6 Schutzleiter
7 Eingangsdiodenbrücke
Powermax65/85/105 SYNC
13
3
4
Anleitung zur Fehlerbeseitigung
So funktioniert die Plasma-Stromquelle
12
11
10
5
8 Beschaltungswiderstand
9 Netzschalter (S1)
10 BLK-IGBT
11 BLK-Beschaltungswiderstand
12 Ausgangs-Beschaltungswiderstand
13 Optionale serielle Platine
810430DE
7
9
8
7
6
165
