HARDWARE COMPONENTS

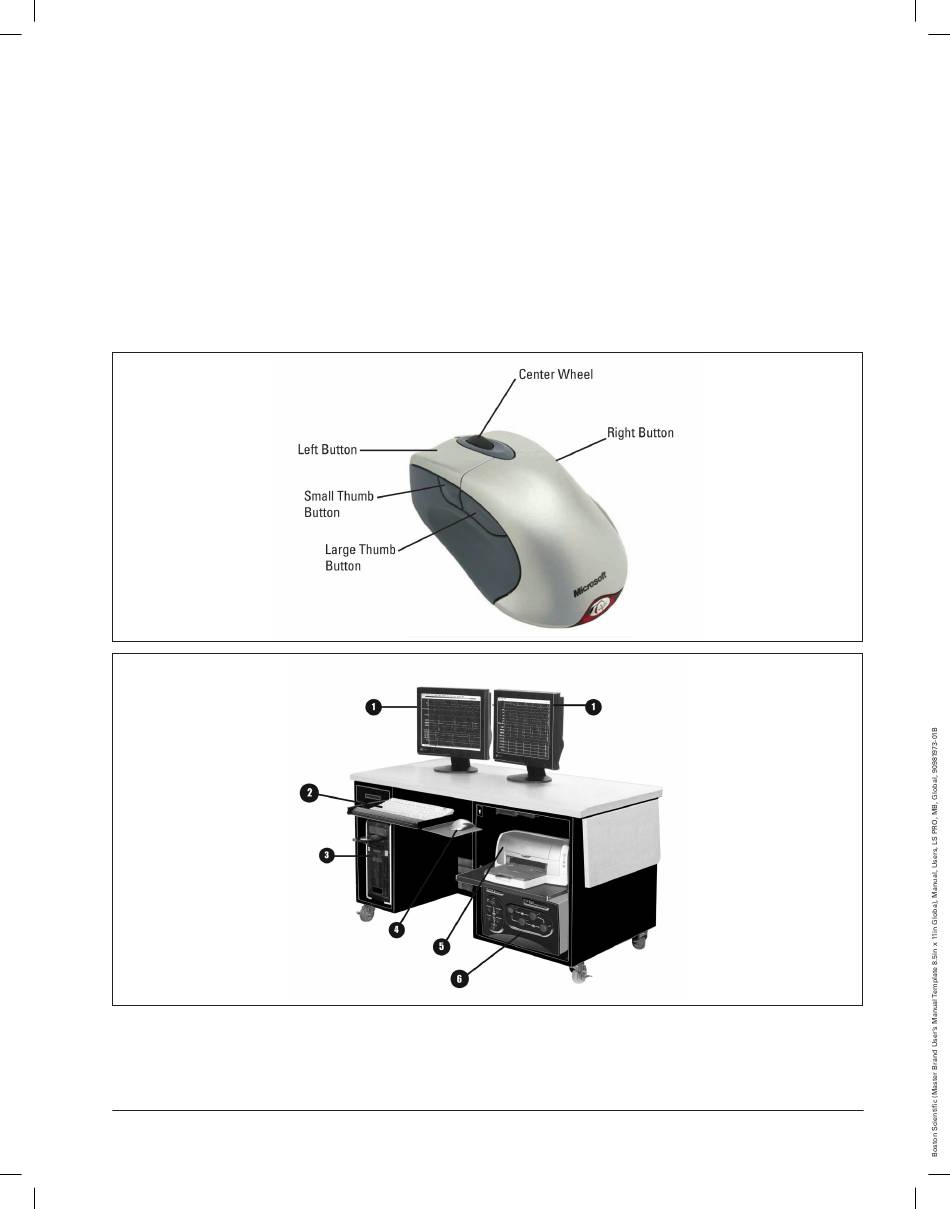

Figure 1 shows the hardware components that make up the LABSYSTEM™ PRO EP Recording System.
1. Monitor
2. Keyboard
3. Computer
4. Mouse
5. Printer
6. CLEARSIGN™ Amplifier
7. Isolation Transformer (not shown)
The LABSYSTEM PRO EP recording system utilizes an IntelliMouse Explorer optical mouse. There are five
buttons on the mouse; left and right button, large thumb button, small thumb button and a center wheel.
Figure 1. CLEARSIGN Amplifier shown with other LABSYSTEM PRO Hardware Components.
