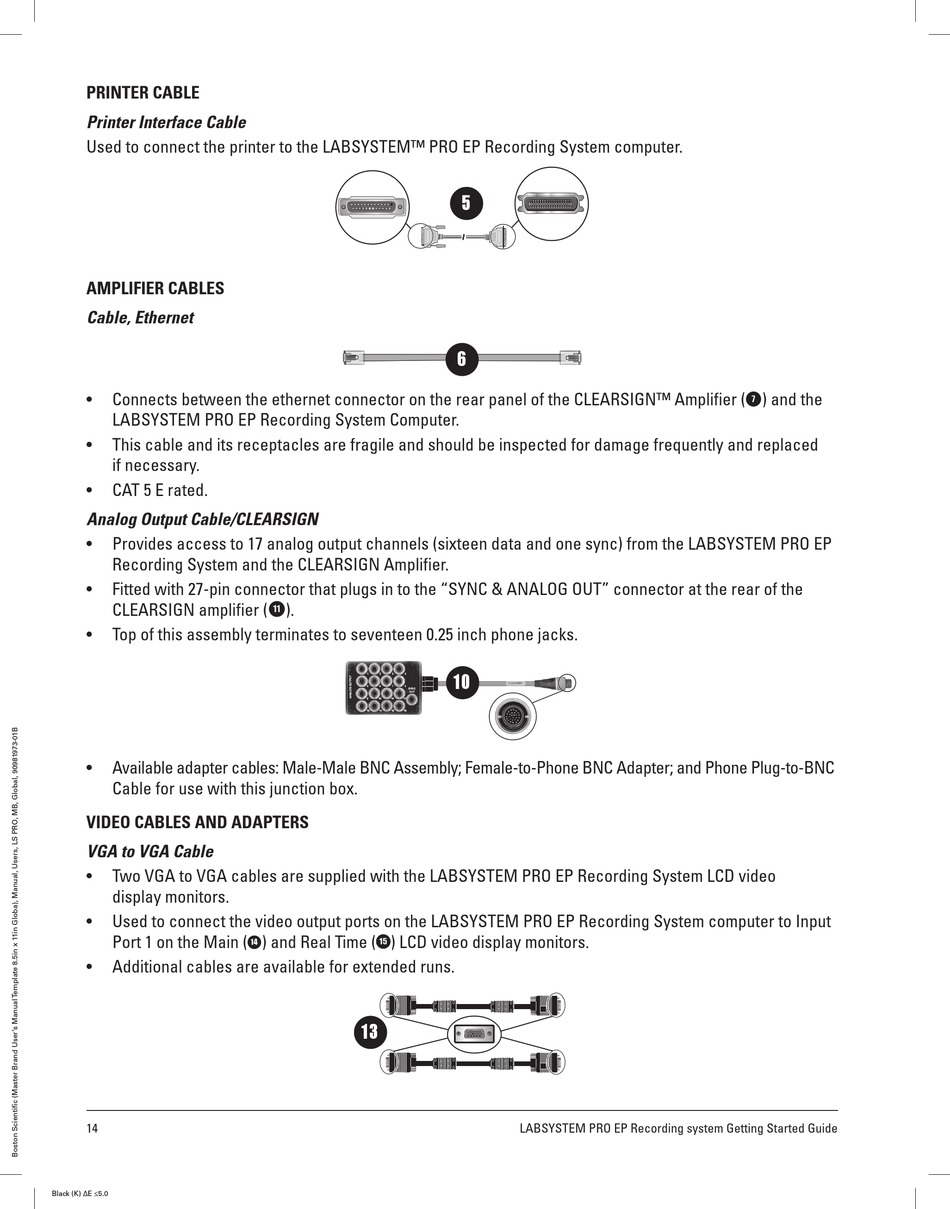

PRINTER CABLE

Printer Interface Cable

Used to connect the printer to the LABSYSTEM™ PRO EP Recording System computer.

AMPLIFIER CABLES

Cable, Ethernet

• Connects between the ethernet connector on the rear panel of the CLEARSIGN™ Amplifier (
LABSYSTEM PRO EP Recording System Computer.
• This cable and its receptacles are fragile and should be inspected for damage frequently and replaced
if necessary.
• CAT 5 E rated.

Analog Output Cable/CLEARSIGN

• Provides access to 17 analog output channels (sixteen data and one sync) from the LABSYSTEM PRO EP
Recording System and the CLEARSIGN Amplifier.
• Fitted with 27-pin connector that plugs in to the "SYNC & ANALOG OUT" connector at the rear of the
CLEARSIGN amplifier (
• Top of this assembly terminates to seventeen 0.25 inch phone jacks.
• Available adapter cables: Male-Male BNC Assembly; Female-to-Phone BNC Adapter; and Phone Plug-to-BNC
Cable for use with this junction box.

VIDEO CABLES AND ADAPTERS

VGA to VGA Cable

• Two VGA to VGA cables are supplied with the LABSYSTEM PRO EP Recording System LCD video
display monitors.
• Used to connect the video output ports on the LABSYSTEM PRO EP Recording System computer to Input
Port 1 on the Main (
• Additional cables are available for extended runs.
