Connecting an external power supply

The system is connected to the external power supply by means of a
standard 3-wire electrical cable (1,5 mm²).
Risk of injury due to electric shock!
Improper connection of the system to the power supply can result in
risk of injury due to low voltage (230 V).
• The electrical connection must be established by a qualified elec-
trician.
Specification for external power supply
100-240 V AC / 0,71 - 0,43 A / 50-60 Hz

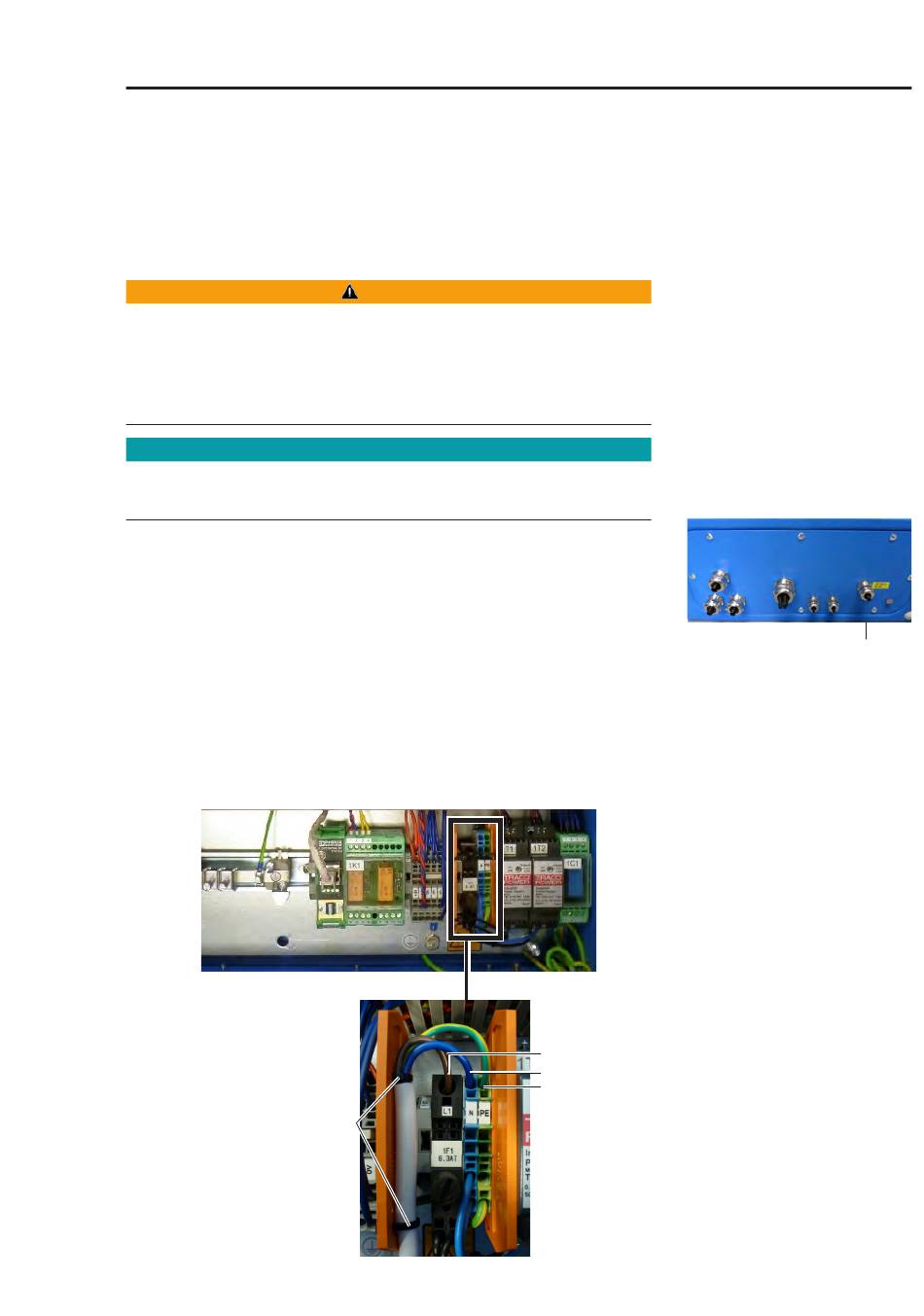

• Open the VIBRONET Signalmaster cabinet.
• Open the fitting M16 on the bottom of the cabinet and remove the
sealing.
• Lay a cable loop (approx. 30 cm).
• Insert the power cable end through the open fitting.
• Strip off the cable end.
• Connect the wires to the respective terminals:
- Black/brown wire > L1
- Blue wire > N
- Yellow/green > PE
• Fix the wires to the orange panels with the supplied cable ties.
• Tighten down the open fitting.
Use cable ties
to fix the wires
WARNING
Note
Phase - L1
Neutral - N
Protective earth -PE
37
Installation
Threaded fitting M16
for power supply
