Installation
String line cable type:
Triaxial cable (e.g. VIB 90080)

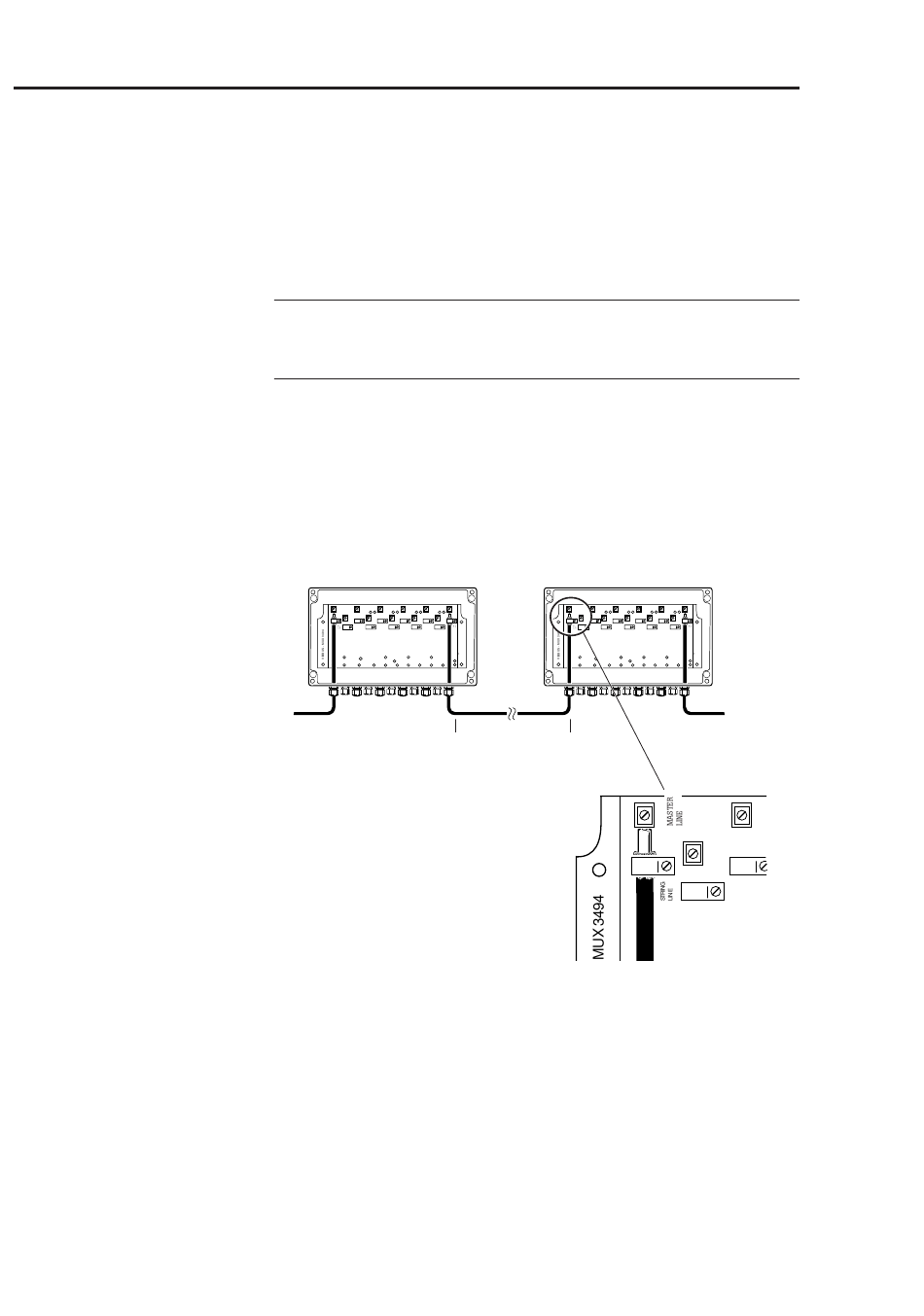

Connecting multiple MUXes to form a string line

Up to 6 MUXes can be joined together to form a 'string line'. String
lines can be expanded by attaching additional multiplexers to the end
of the string line using triaxial cables.
Triaxial cable
Details on the connection of triaxial cables are given in chapter 8 (see
'Triaxial cable', page 63).
• Open the MUX housing.
• Trim the connection cable to the proper length (see 'Cabling', page
19).
• Lay a cable loop (approx. 30 cm).
• Insert the cable through the first or the last fitting.
• Connect the cable to the contacts marked NEXT MUX or MASTER
LINE.
• Tighten down the fitting.
S2 S4
S1 S3
To basic unit
S6 S8
S5 S7 S9
'NEXT MUX' 'MASTER LINE'
S2 S4 S6 S8
S1 S3 S5 S7 S9
S2
S1
