Installation
The RPM sensor is delivered without a connection cable. You can use
a standard coaxial cable (RG 58) to connect the sensor. A suitable
cable socket is available as an accessory (VIB 6.621).
If the cable to the MUX is not long enough, the same type of coaxial
cable (RG 58) can be used as an extension. Join the cables with a TNC/
TNC bulkhead connector (e.g. VIB 93036F), which must be mounted
with electrical isolation.

Temperature probe with 3-lead or 4-lead connector

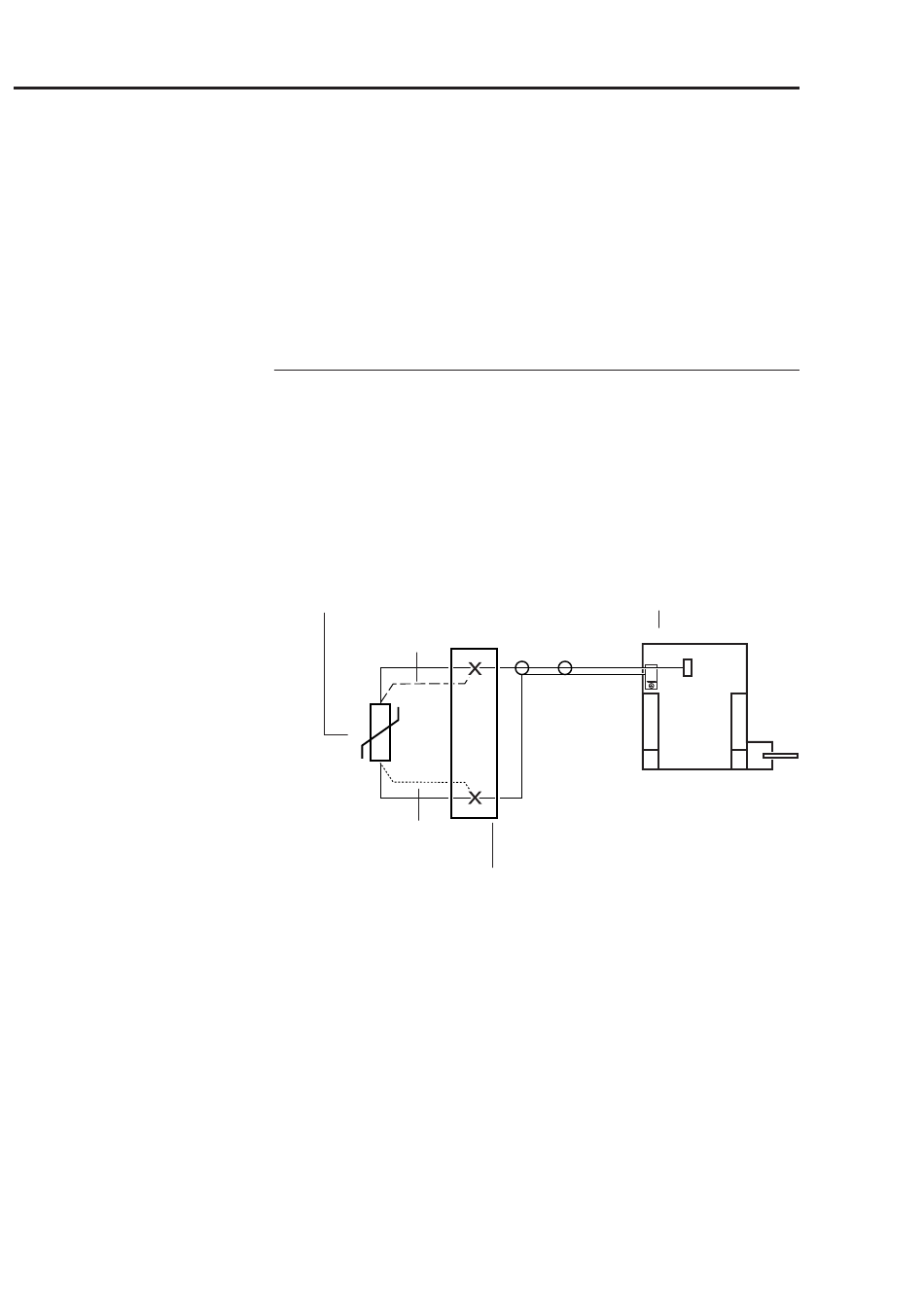

• Connect the temperature probe to an intermediate terminal or to
the junction box (VIB 6.770/9) outside the MUX according to the
below diagram.
• Connect the intermediate terminal or the junction box to the tem-
perature module (VIB 8.310) in the multiplexer with a coaxial
cable.
Temperature probe
4-lead
3- and 4-lead
Temperature module in the MUX
Terminal or junction box for coaxial
sensor cable (VIB 6.770/9)
