Installation

4.4 Installing the cabinet

The cabinet contains the basic unit and the interfaces for the string
lines as well as for communication, supply and digital switching sig-
nals.
Installation
• Select a suitable installation location, which should be readily ac-
cessible.
Requirements
The cabinet is grounded through the power line. In addition, the cabi-
net must also be earthed via the PE bolt on the bottom of the cabinet.
Leave sufficient clearance below the fittings for approx. 30 cm of cable
loop.
Leave enough clearance in front of the cabinet so that the housing lid
can be fully opened (approx. 65 cm).
• Drill four mounting holes for fastening the cabinet (see '3.2 Dimen-
sions', page 16).
• Fasten the cabinet with four M10 bolts; use, if applicable, moun-
ting dowels.

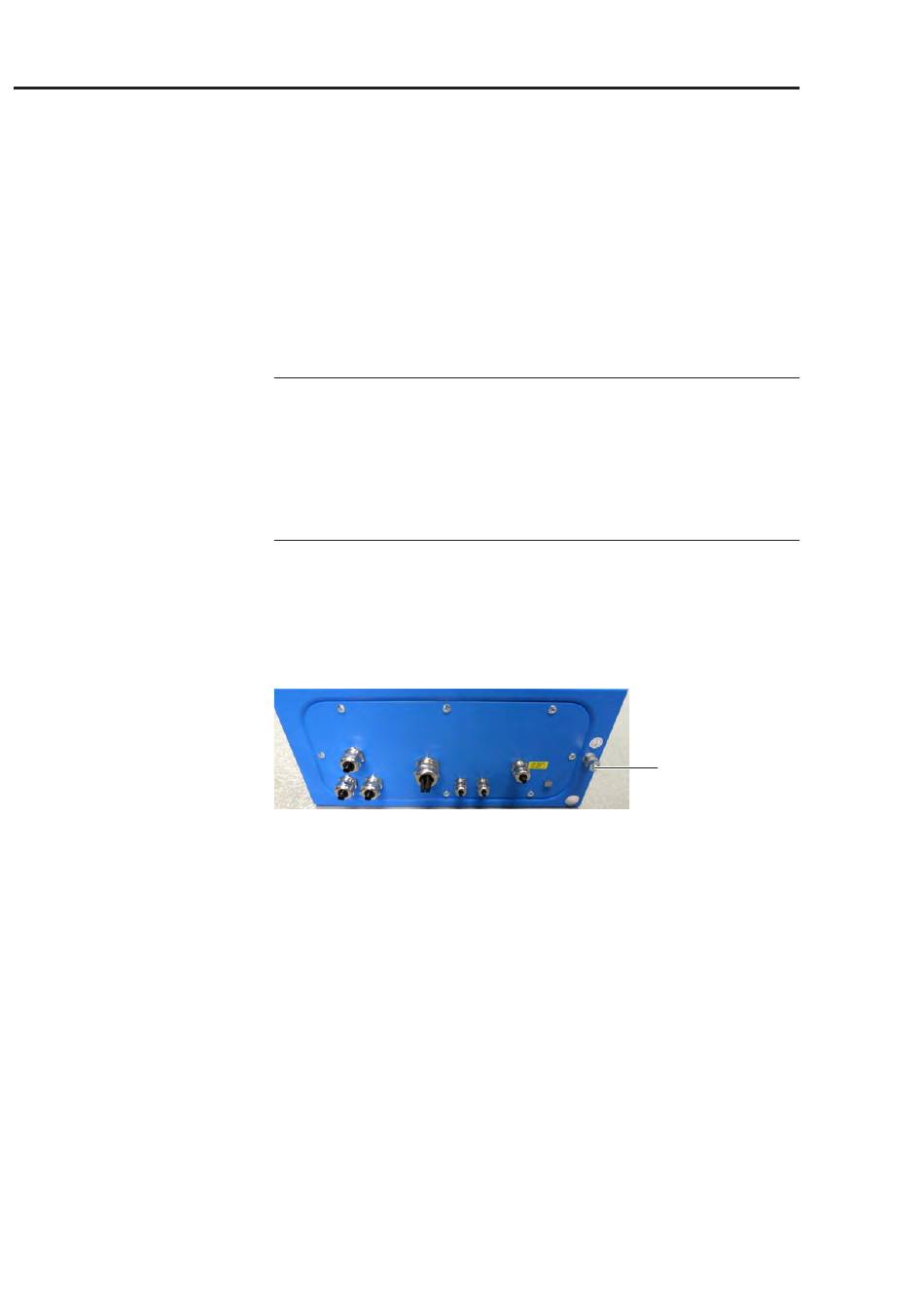

PE bolt
on the bottom of the
cabinet
