11

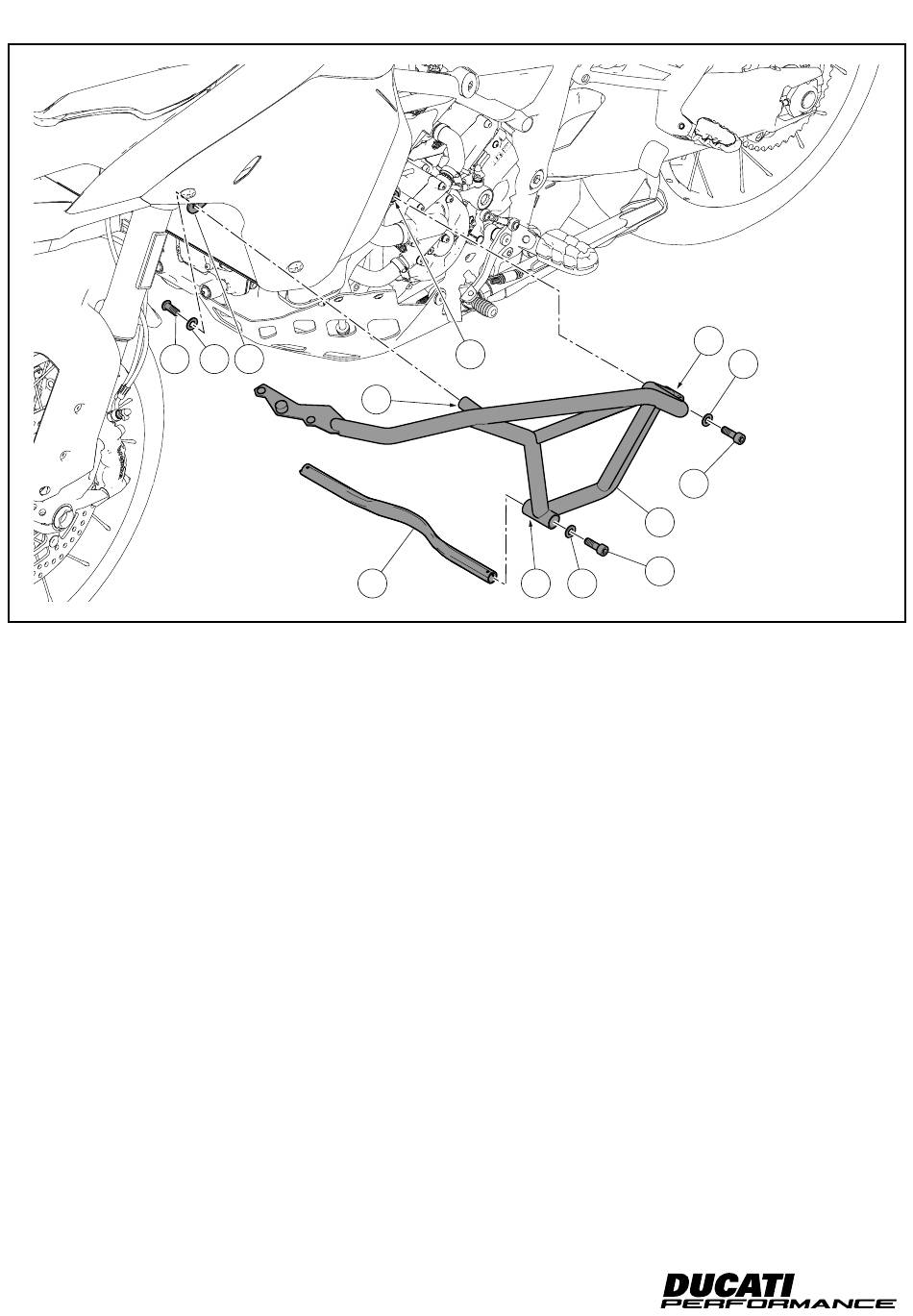

Montagem das proteções laterais
Insira a arruela (18) no parafuso (8). Aplique massa SHELL GADUS
S2 V100 3 na rosca do parafuso (8). Insira o parafuso (8) com ar-
ruela (18) no engate traseiro (1B) da proteção lateral esquerda (1) e
encoste-o no parafuso especial (4). Insira a arruela (18) no parafuso
(11). Aplique massa SHELL GADUS S2 V100 3 na rosca do parafuso
(11). Posicione o engate superior (1A) da proteção lateral esquerda
(1) na braçadeira esquerda (5) e encoste pelo lado interno o parafu-
so (11). Insira a arruela (18) no parafuso (8). Aplique massa SHELL
GADUS S2 V100 3 na rosca do parafuso (8). Insira a travessa inferior
(3) no engate inferior (1C) e encoste, pelo lado oposto, o parafuso
(8).
29
18
5
1A
3
4
1C
18
Side protection assembly
Fit washer (18) on screw (8). Smear the thread of screw (8) with
grease SHELL GADUS S2 V100 3. Fit screw (8) with washer (18)
in rear fitting (1B) of LH side protection (1) and start it on special
screw (4). Fit washer (18) on screw (11). Smear the thread of screw
(11) with grease SHELL GADUS S2 V100 3. Position upper fitting
(1A) of LH side protection (1) on LH bracket (5) and start screw (11)
from the inner side. Fit washer (18) on screw (8). Smear the thread
of screw (8) with grease SHELL GADUS S2 V100 3. Fit lower cross
member (3) inside lower fitting (1C) and start screw (8) on the op-
posite side.
ISTR 1011 / 00
1B
18
8
1
8
