m) Mounting the Wing Bars

For better stability of the wings in flight operation and to achieve an appearance true to the original, the model requires
wing bars.
For this, four eyelets each must be installed to the bottoms of the wings. The corresponding holes are already pre-
drilled ex works. It is recommended that you remove the screws again after first assembly and to apply a drop of
liquid instant glue to each screw hole to increase solidity. Rubber rings for elastic, vibration-inhibiting attachment are
plugged into the eyelets.
Remove the film centrally at the ends of the
wing bars.
Then install the wing bards to the wings and se-
cure them on the outside with safety clips from
the construction kit.
The bracket attached to the wing bar is pushed
into the front eyelets.

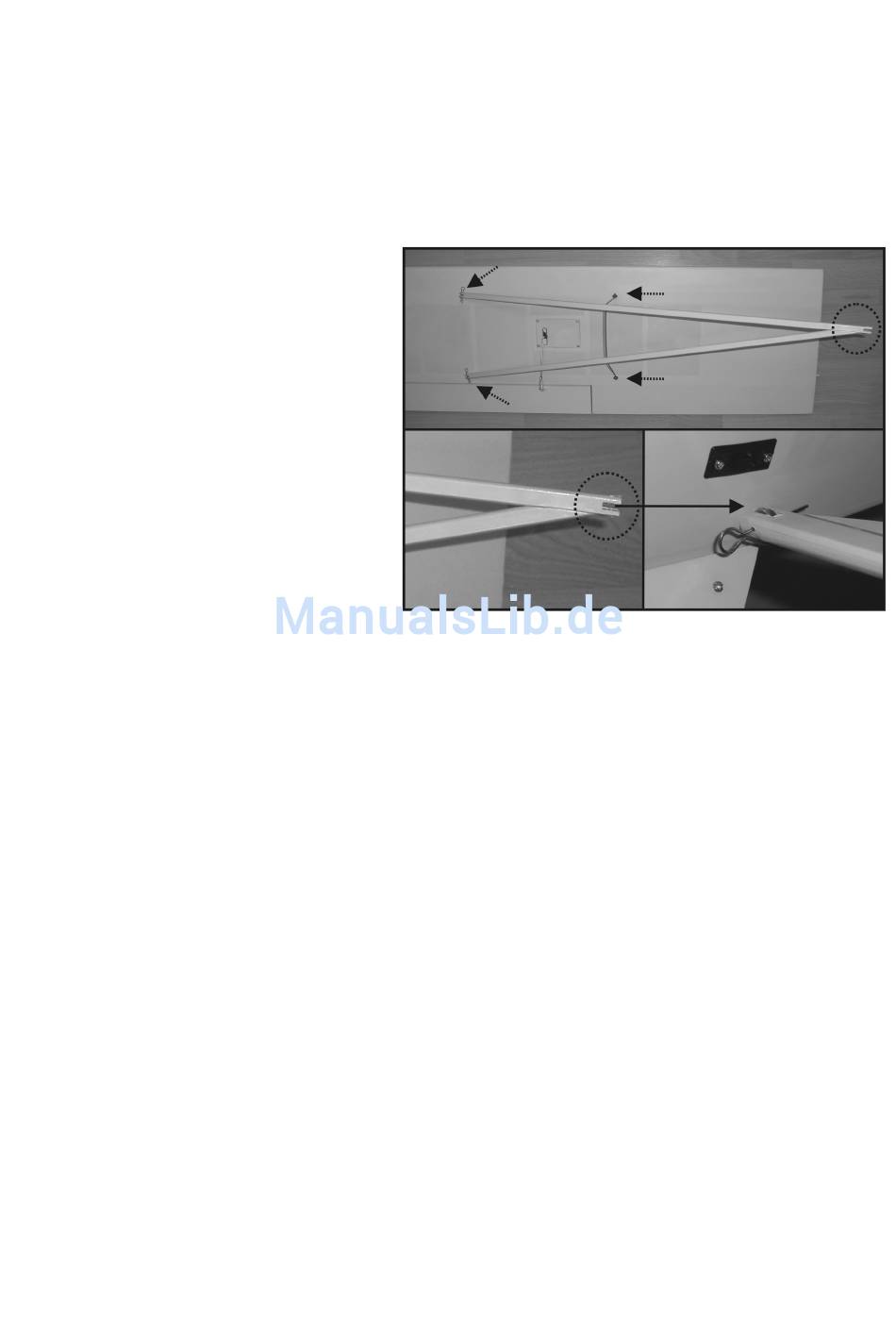

The upper part of figure 10 shows the installed
wing bar (arrows). Ensure that you install the
bar matching the wing (see circles in figure 10)
Now install the wing to the fuselage.
Mark and drill the holes for the attachment eye-
lets with a 1.5 mm drill in the area of the main
landing gear as shown in figure 10.
Figure 10
It is important that the eyelets are assemb-
led so that the wings are pushed up again or
pulled down and/or tensioned with the wings
installed.
Screw on the eyelets to the fuselage at the left and right and install the rubber rings.
Attach the wing bars at the fuselage with the brackets.
Turning the eyelets in or out leads to a small length balance that warranty tension-free assembly.
