d) Mounting the Aileron Linkage

Create the matching linkage rods with the rods
from the kit and connect it to the servo's rudder
horns.
The length of the linkage rods for the ailerons
must be measured with the flap position neutral
and a servo rudder horn vertical to the servo
shaft cover.

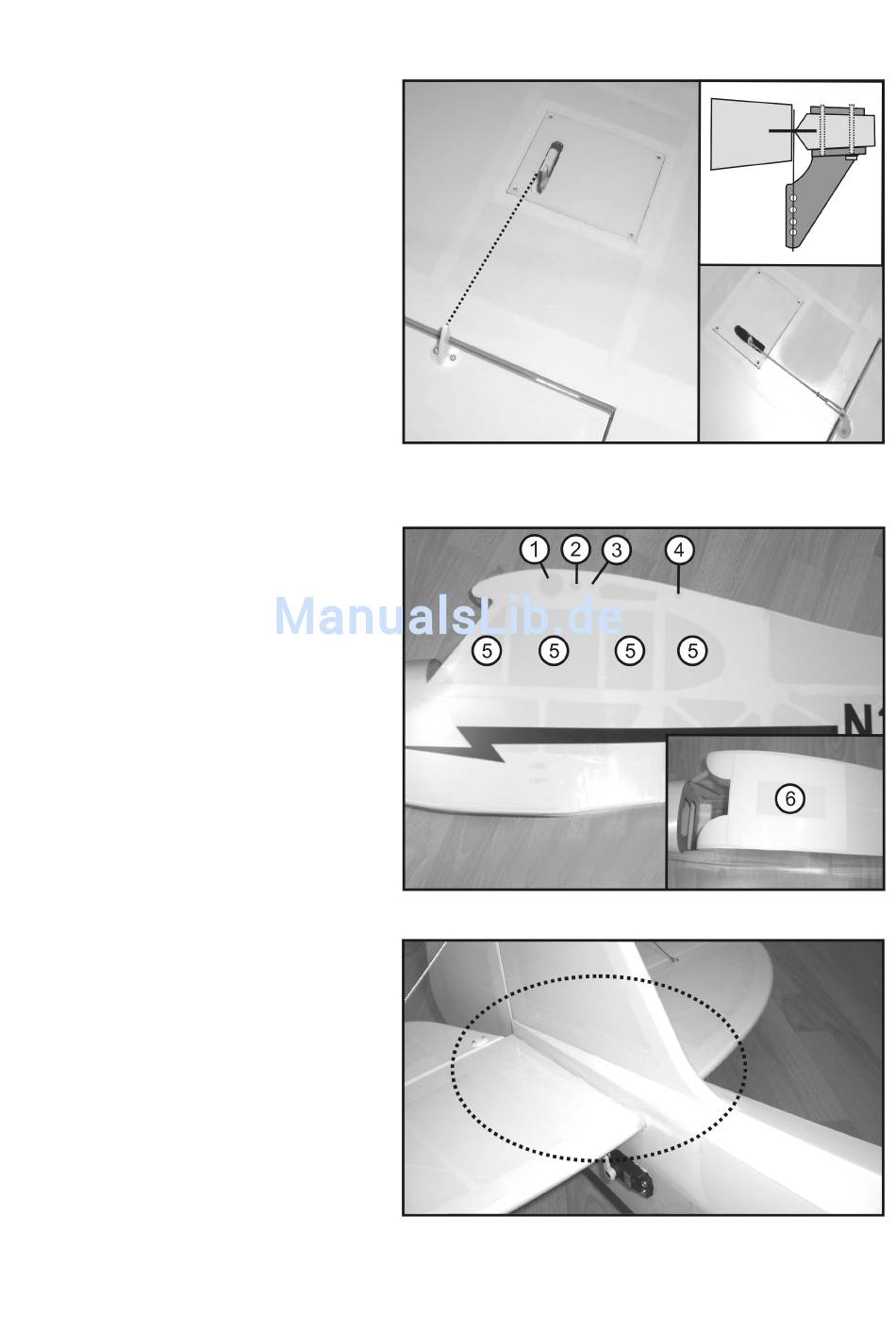

Figure 3

e) Preparations at the Fuselage

Various openings must be created in the fuse-
lage. Before cutting out the foil at the fuselage,
we recommend that you iron this area again.
Feel for the cut-outs for the wing at the fuselage
(figure 4a, item 1 to 4 - also see figure 1) of the
windows (figure 4a, item 5) and the fuselage
top (figure 4a, item 6).
In the area of the elevator and rudder (figure
4b), the openings for the assembly of the tail
units must be created.
Open these points with a cutter knife. Use the
information from figures 4a and 4b as refe-
rence.
Figure 4a
Figure 4b
