Aquatec® Ocean Ergo / Ocean Ergo XL / Aquatec® Ocean 24" Ergo / Ocean 24" Ergo XL

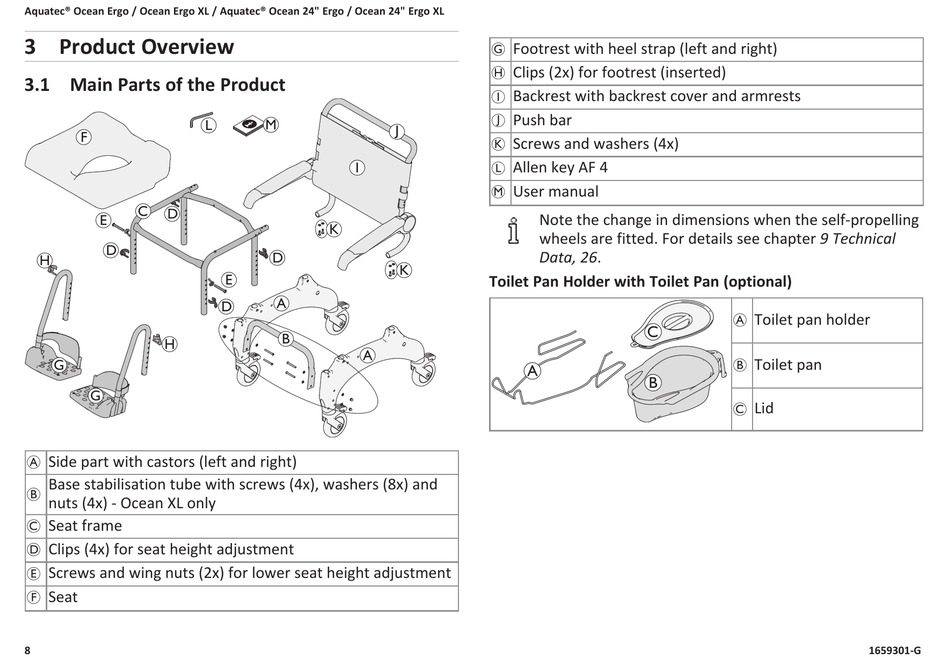

3 Product Overview
3.1 Main Parts of the Product
L
F
C
D
E
D
H
H
G
G
A Side part with castors (left and right)
Base stabilisation tube with screws (4x), washers (8x) and
B
nuts (4x) - Ocean XL only
C Seat frame
D Clips (4x) for seat height adjustment
E Screws and wing nuts (2x) for lower seat height adjustment
F Seat
8
M
J
I
K
D
K
E
A
D
B
A
G Footrest with heel strap (left and right)
H Clips (2x) for footrest (inserted)
I Backrest with backrest cover and armrests
J Push bar
K Screws and washers (4x)
L Allen key AF 4
M User manual
Note the change in dimensions when the self-propelling
wheels are fitted. For details see chapter 9 Technical
Data, 26.
Toilet Pan Holder with Toilet Pan (optional)
C
A
B
A Toilet pan holder
B Toilet pan
C Lid
