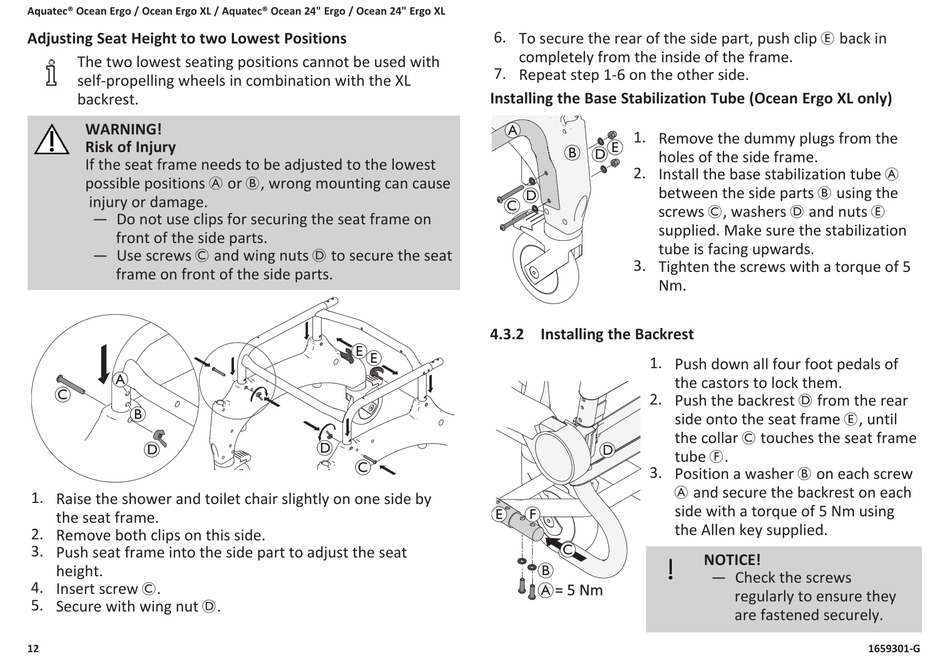

Aquatec® Ocean Ergo / Ocean Ergo XL / Aquatec® Ocean 24" Ergo / Ocean 24" Ergo XL
Adjusting Seat Height to two Lowest Positions
The two lowest seating positions cannot be used with
self-propelling wheels in combination with the XL
backrest.
WARNING!
Risk of Injury
If the seat frame needs to be adjusted to the lowest
possible positions A or B, wrong mounting can cause
injury or damage.
— Do not use clips for securing the seat frame on
front of the side parts.
— Use screws C and wing nuts D to secure the seat
frame on front of the side parts.
A
C
B
D
1. Raise the shower and toilet chair slightly on one side by
the seat frame.
2. Remove both clips on this side.
3. Push seat frame into the side part to adjust the seat
height.
4. Insert screw C.
5. Secure with wing nut D.
12
6. To secure the rear of the side part, push clip E back in
7. Repeat step 1-6 on the other side.
Installing the Base Stabilization Tube (Ocean Ergo XL only)
4.3.2 Installing the Backrest
E E
D
C
E F
completely from the inside of the frame.
A
1. Remove the dummy plugs from the
D E
B
holes of the side frame.
2. Install the base stabilization tube A
between the side parts B using the
D
C
screws C, washers D and nuts E
supplied. Make sure the stabilization
tube is facing upwards.
3. Tighten the screws with a torque of 5
Nm.
1. Push down all four foot pedals of
the castors to lock them.
2. Push the backrest D from the rear
side onto the seat frame E, until
the collar C touches the seat frame
D
tube F.
3. Position a washer B on each screw
A and secure the backrest on each
side with a torque of 5 Nm using
the Allen key supplied.
C
B
A
NOTICE!
— Check the screws
regularly to ensure they
are fastened securely.
1659301-G
