Aquatec® Ocean Ergo / Ocean Ergo XL / Aquatec® Ocean 24" Ergo / Ocean 24" Ergo XL

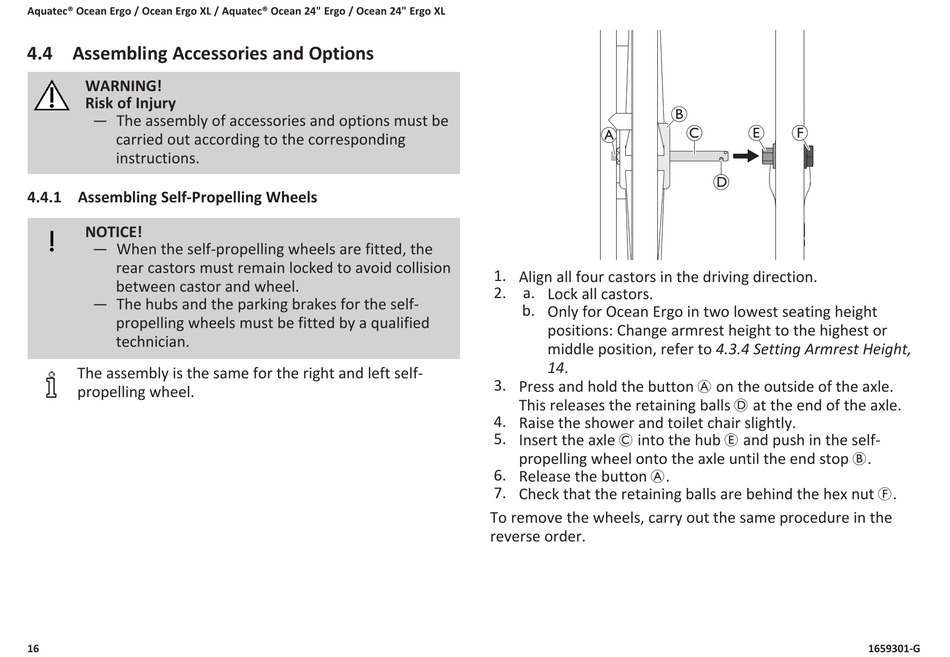

4.4 Assembling Accessories and Options
WARNING!
Risk of Injury
— The assembly of accessories and options must be
carried out according to the corresponding
instructions.
4.4.1 Assembling Self-Propelling Wheels
NOTICE!
— When the self-propelling wheels are fitted, the
rear castors must remain locked to avoid collision
between castor and wheel.
— The hubs and the parking brakes for the self-
propelling wheels must be fitted by a qualified
technician.
The assembly is the same for the right and left self-
propelling wheel.
16
A
1. Align all four castors in the driving direction.
2. a. Lock all castors.
b. Only for Ocean Ergo in two lowest seating height
positions: Change armrest height to the highest or
middle position, refer to 4.3.4 Setting Armrest Height,
14.
3. Press and hold the button A on the outside of the axle.
This releases the retaining balls D at the end of the axle.
4. Raise the shower and toilet chair slightly.
5. Insert the axle C into the hub E and push in the self-
propelling wheel onto the axle until the end stop B.
6. Release the button A.
7. Check that the retaining balls are behind the hex nut F.
To remove the wheels, carry out the same procedure in the
reverse order.
B
C E F
D
1659301-G
