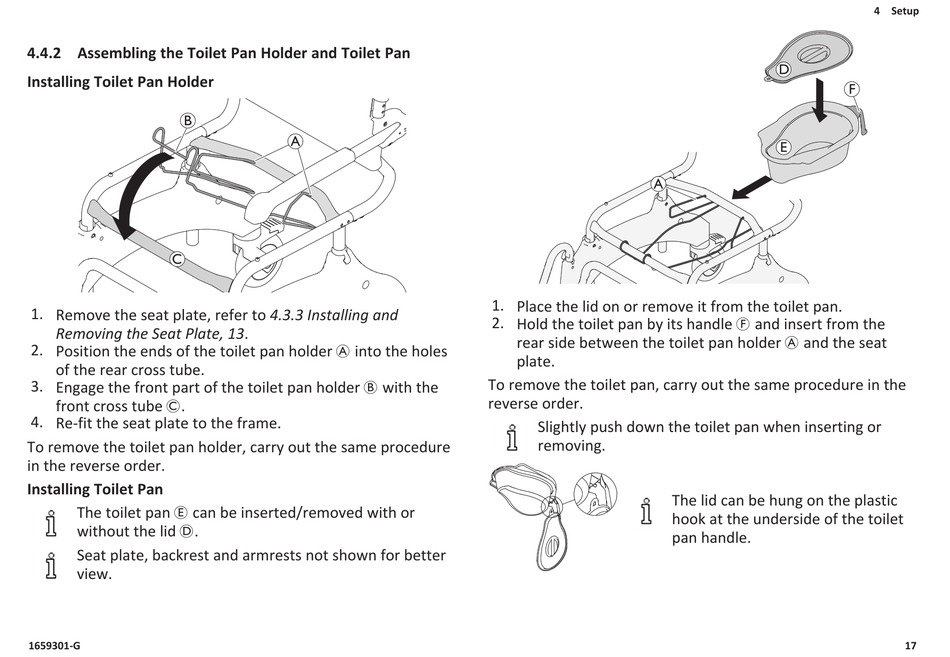

4.4.2 Assembling the Toilet Pan Holder and Toilet Pan
Installing Toilet Pan Holder
B
C
1. Remove the seat plate, refer to 4.3.3 Installing and
Removing the Seat Plate, 13.
2. Position the ends of the toilet pan holder A into the holes
of the rear cross tube.
3. Engage the front part of the toilet pan holder B with the
front cross tube C.
4. Re-fit the seat plate to the frame.
To remove the toilet pan holder, carry out the same procedure
in the reverse order.
Installing Toilet Pan
The toilet pan E can be inserted/removed with or
without the lid D.
Seat plate, backrest and armrests not shown for better
view.
1659301-G
A
A
1. Place the lid on or remove it from the toilet pan.
2. Hold the toilet pan by its handle F and insert from the
rear side between the toilet pan holder A and the seat
plate.
To remove the toilet pan, carry out the same procedure in the
reverse order.
Slightly push down the toilet pan when inserting or
removing.
D
F
E
The lid can be hung on the plastic
hook at the underside of the toilet
pan handle.
