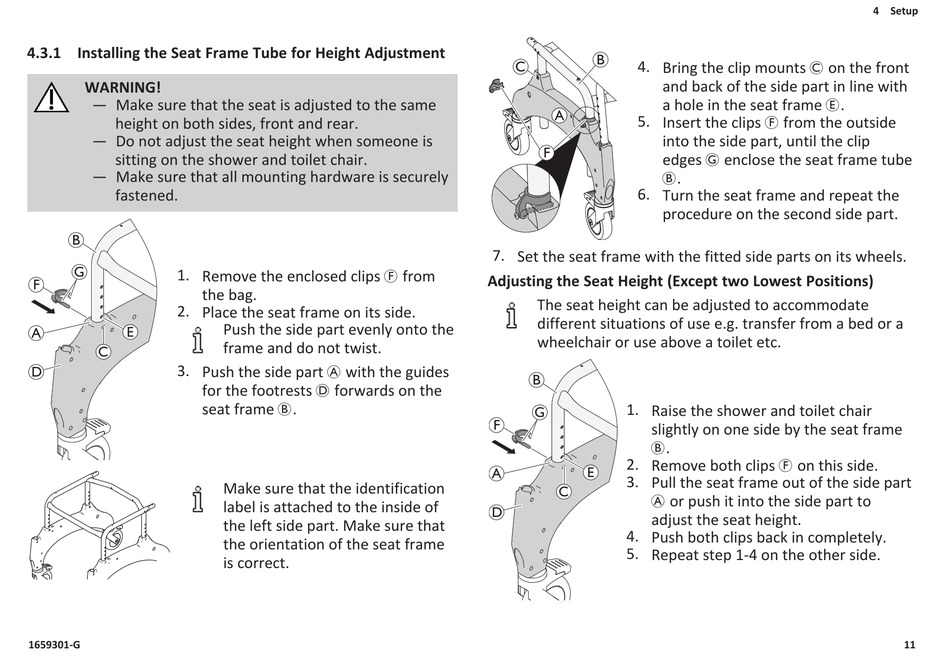

4.3.1 Installing the Seat Frame Tube for Height Adjustment
WARNING!
— Make sure that the seat is adjusted to the same
height on both sides, front and rear.
— Do not adjust the seat height when someone is
sitting on the shower and toilet chair.
— Make sure that all mounting hardware is securely
fastened.
B
G
1. Remove the enclosed clips F from
F
the bag.
2. Place the seat frame on its side.
E
A
C
3. Push the side part A with the guides
D
for the footrests D forwards on the
seat frame B.
1659301-G
Push the side part evenly onto the
frame and do not twist.
Make sure that the identification
label is attached to the inside of
the left side part. Make sure that
the orientation of the seat frame
is correct.
B
C
4. Bring the clip mounts C on the front
and back of the side part in line with
a hole in the seat frame E.
A
5. Insert the clips F from the outside
into the side part, until the clip
F
edges G enclose the seat frame tube
B.
6. Turn the seat frame and repeat the
procedure on the second side part.
7. Set the seat frame with the fitted side parts on its wheels.
Adjusting the Seat Height (Except two Lowest Positions)
The seat height can be adjusted to accommodate
different situations of use e.g. transfer from a bed or a
wheelchair or use above a toilet etc.
B
1. Raise the shower and toilet chair
G
F
slightly on one side by the seat frame
B.
2. Remove both clips F on this side.
E
A
3. Pull the seat frame out of the side part
C
A or push it into the side part to
D
adjust the seat height.
4. Push both clips back in completely.
5. Repeat step 1-4 on the other side.
