Aquatec® Ocean Ergo / Ocean Ergo XL / Aquatec® Ocean 24" Ergo / Ocean 24" Ergo XL

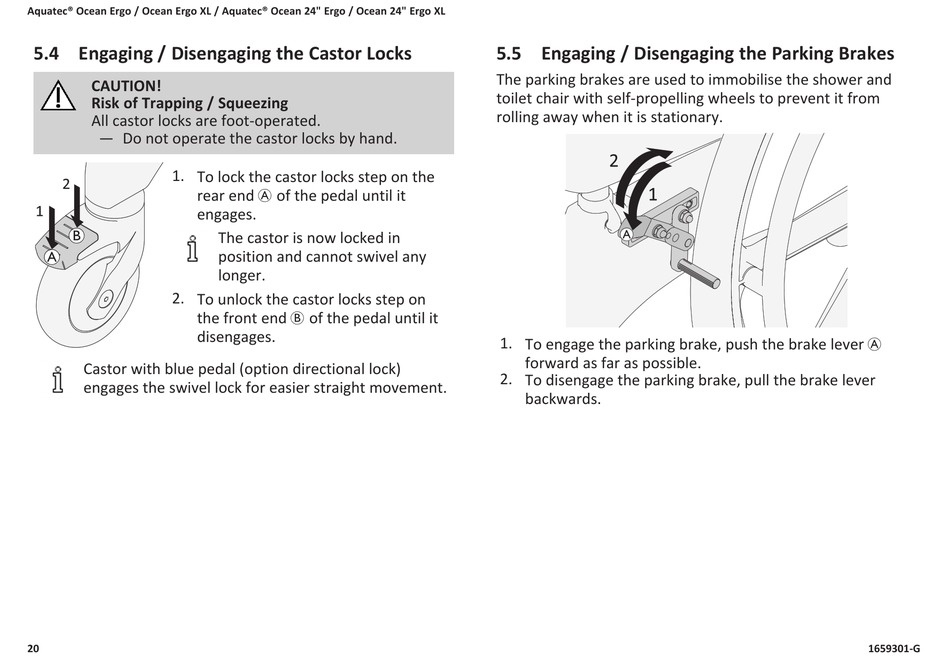

5.4 Engaging / Disengaging the Castor Locks
CAUTION!
Risk of Trapping / Squeezing
All castor locks are foot-operated.
— Do not operate the castor locks by hand.
1. To lock the castor locks step on the
rear end A of the pedal until it
engages.
B
A
2. To unlock the castor locks step on
the front end B of the pedal until it
disengages.
Castor with blue pedal (option directional lock)
engages the swivel lock for easier straight movement.
20
The castor is now locked in
position and cannot swivel any
longer.
5.5 Engaging / Disengaging the Parking Brakes
The parking brakes are used to immobilise the shower and
toilet chair with self-propelling wheels to prevent it from
rolling away when it is stationary.
A
1. To engage the parking brake, push the brake lever A
forward as far as possible.
2. To disengage the parking brake, pull the brake lever
backwards.
1659301-G
