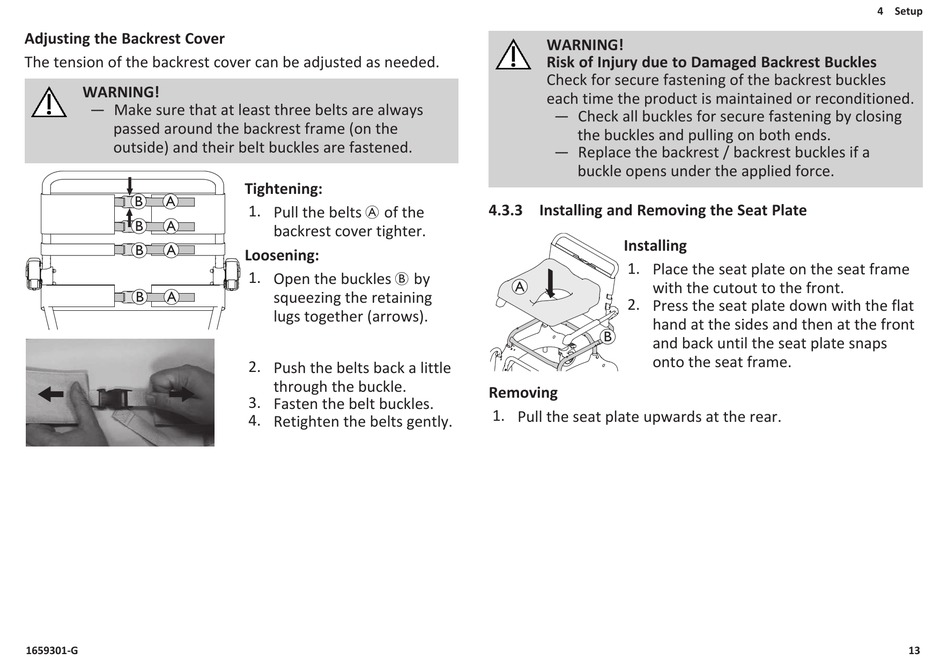

Adjusting the Backrest Cover
The tension of the backrest cover can be adjusted as needed.
WARNING!
— Make sure that at least three belts are always
passed around the backrest frame (on the
outside) and their belt buckles are fastened.
B A
B A
B A
B A
1659301-G
Tightening:
1. Pull the belts A of the
backrest cover tighter.
Loosening:
1. Open the buckles B by
squeezing the retaining
lugs together (arrows).
2. Push the belts back a little
through the buckle.
3. Fasten the belt buckles.
4. Retighten the belts gently.
WARNING!
Risk of Injury due to Damaged Backrest Buckles
Check for secure fastening of the backrest buckles
each time the product is maintained or reconditioned.
— Check all buckles for secure fastening by closing
the buckles and pulling on both ends.
— Replace the backrest / backrest buckles if a
buckle opens under the applied force.
4.3.3 Installing and Removing the Seat Plate
Installing
1. Place the seat plate on the seat frame
A
with the cutout to the front.
2. Press the seat plate down with the flat
hand at the sides and then at the front
B
and back until the seat plate snaps
onto the seat frame.
Removing
1. Pull the seat plate upwards at the rear.
