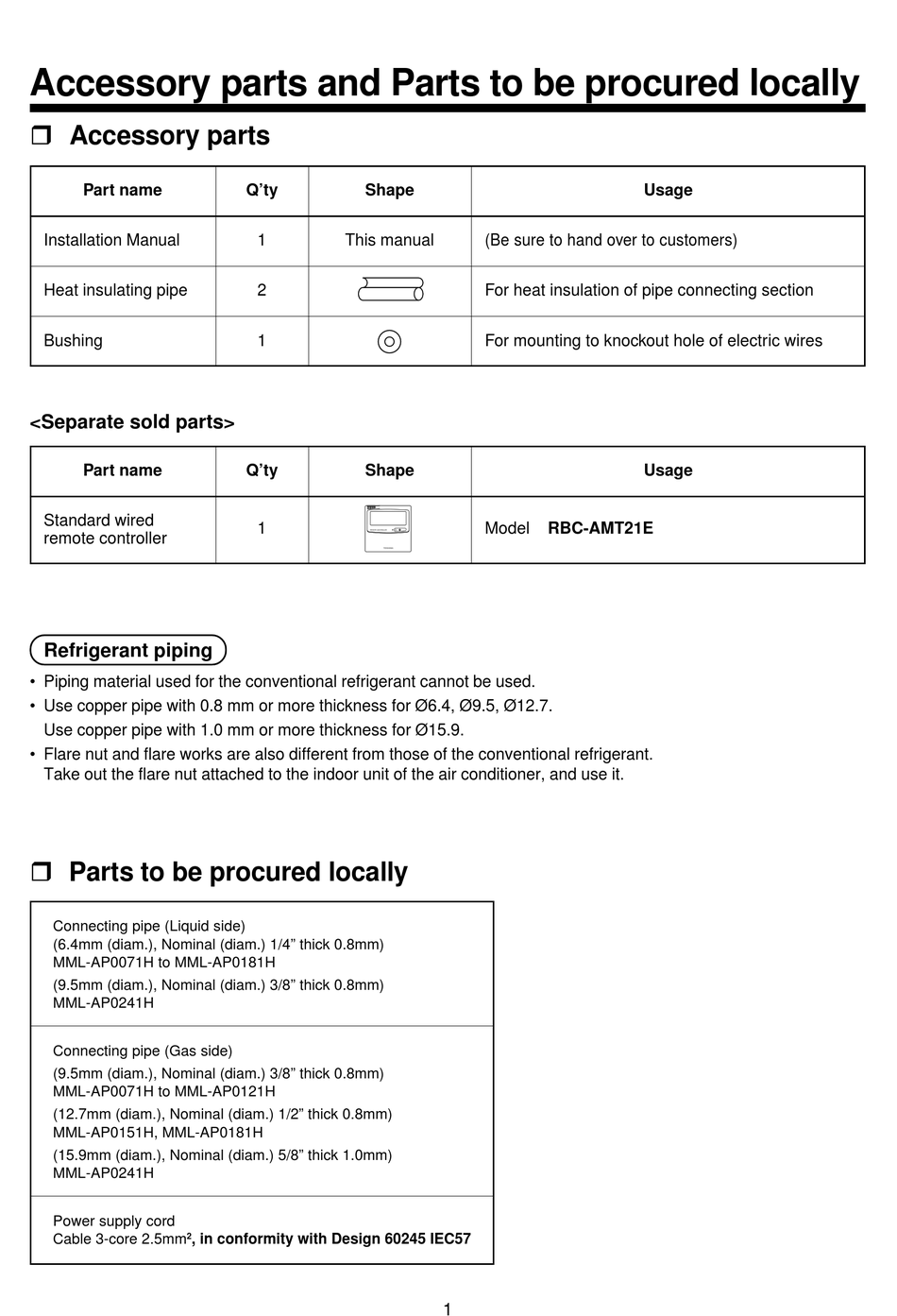

Accessory parts and Parts to be procured locally

H Accessory parts
Part name
Installation Manual
Heat insulating pipe
Bushing
<Separate sold parts>
Part name
Standard wired
remote controller
Refrigerant piping
• Piping material used for the conventional refrigerant cannot be used.
• Use copper pipe with 0.8 mm or more thickness for Ø6.4, Ø9.5, Ø12.7.
Use copper pipe with 1.0 mm or more thickness for Ø15.9.
• Flare nut and flare works are also different from those of the conventional refrigerant.
Take out the flare nut attached to the indoor unit of the air conditioner, and use it.
H Parts to be procured locally
Connecting pipe (Liquid side)
(6.4mm (diam.), Nominal (diam.) 1/4" thick 0.8mm)
MML-AP0071H to MML-AP0181H
(9.5mm (diam.), Nominal (diam.) 3/8" thick 0.8mm)
MML-AP0241H
Connecting pipe (Gas side)
(9.5mm (diam.), Nominal (diam.) 3/8" thick 0.8mm)
MML-AP0071H to MML-AP0121H
(12.7mm (diam.), Nominal (diam.) 1/2" thick 0.8mm)
MML-AP0151H, MML-AP0181H
(15.9mm (diam.), Nominal (diam.) 5/8" thick 1.0mm)
MML-AP0241H
Power supply cord
Cable 3-core 2.5mm 2 , in conformity with Design 60245 IEC57
Q'ty Shape
1 This manual
2
1
Q'ty Shape
1
(Be sure to hand over to customers)
For heat insulation of pipe connecting section
For mounting to knockout hole of electric wires
Model RBC-AMT21E
1
Usage
Usage
