6
ELECTRIC WORK
Wire connection
• Prior to connection of the wire between indoor and outdoor units, be sure to adjust wire numbers. Incorrect
connection causes a trouble.
• As the remote controller wire has no polarity, there is no problem if connections to indoor unit terminal blocks
A and B are reversed.
• Be sure to pass the wire through the bushing at wire connecting port of the indoor unit.
• The low-voltage circuit is provided for the remote controller.
• After connecting the wire to the terminal block, make a trap on the wire and then fix the wire with a wire clamp.
Wiring between indoor unit and
outdoor unit

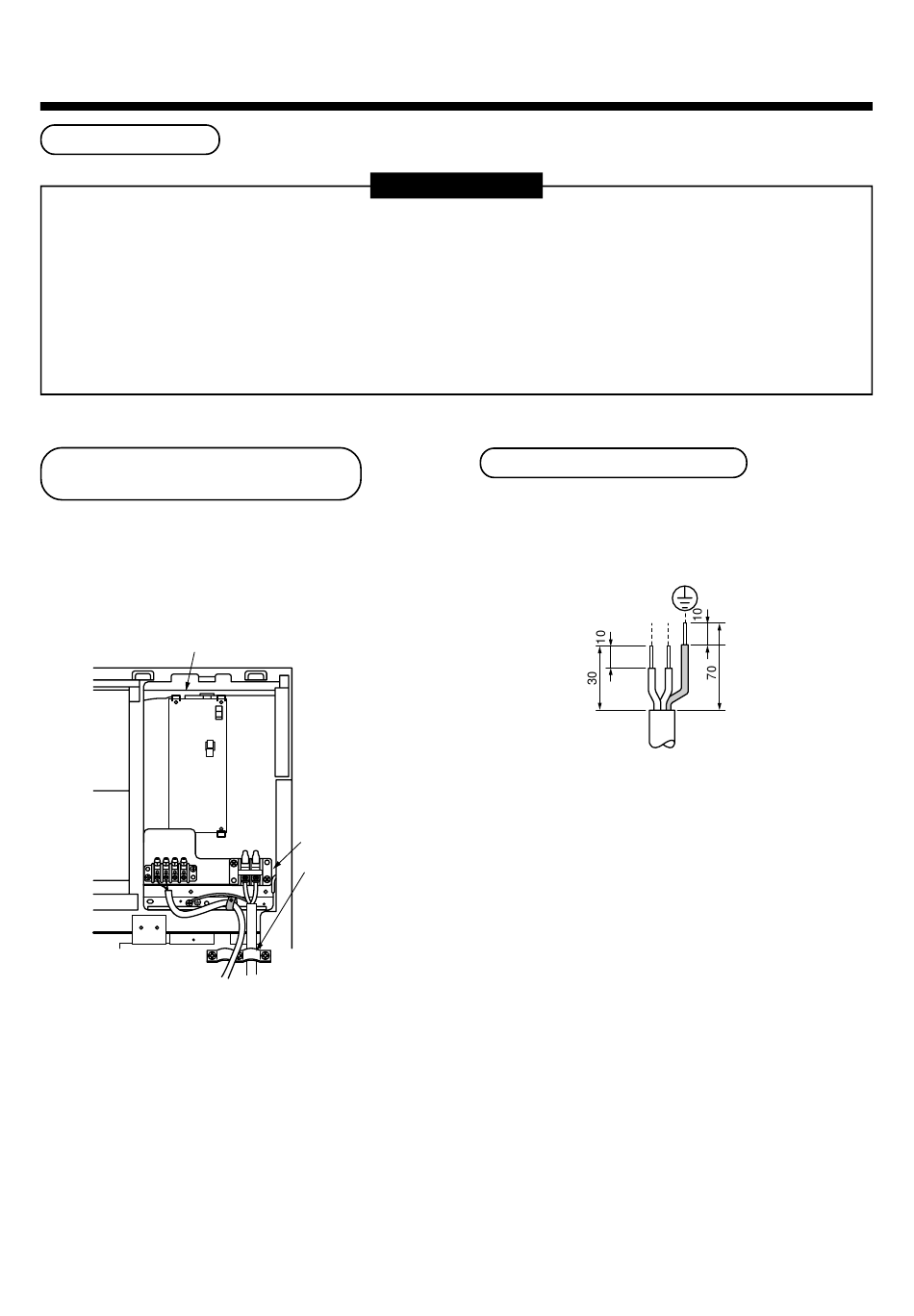

<Wiring to electric parts box of indoor unit>
• Draw in the wire from the pipe hole (Knockout hole).
• As shown in the figure, set a trap on the cable and
then fix it with a cord clamp.
Electric parts box
U U A B
1 2
REQUIREMENT
Connector
R(L)S(N)
Cord clamp
R(L) S(N)
(For power supply)
Attaching position of wire
For a wire to be connected to the terminal block,
secure size as shown in the figure.
13
R S
(L) (N)
