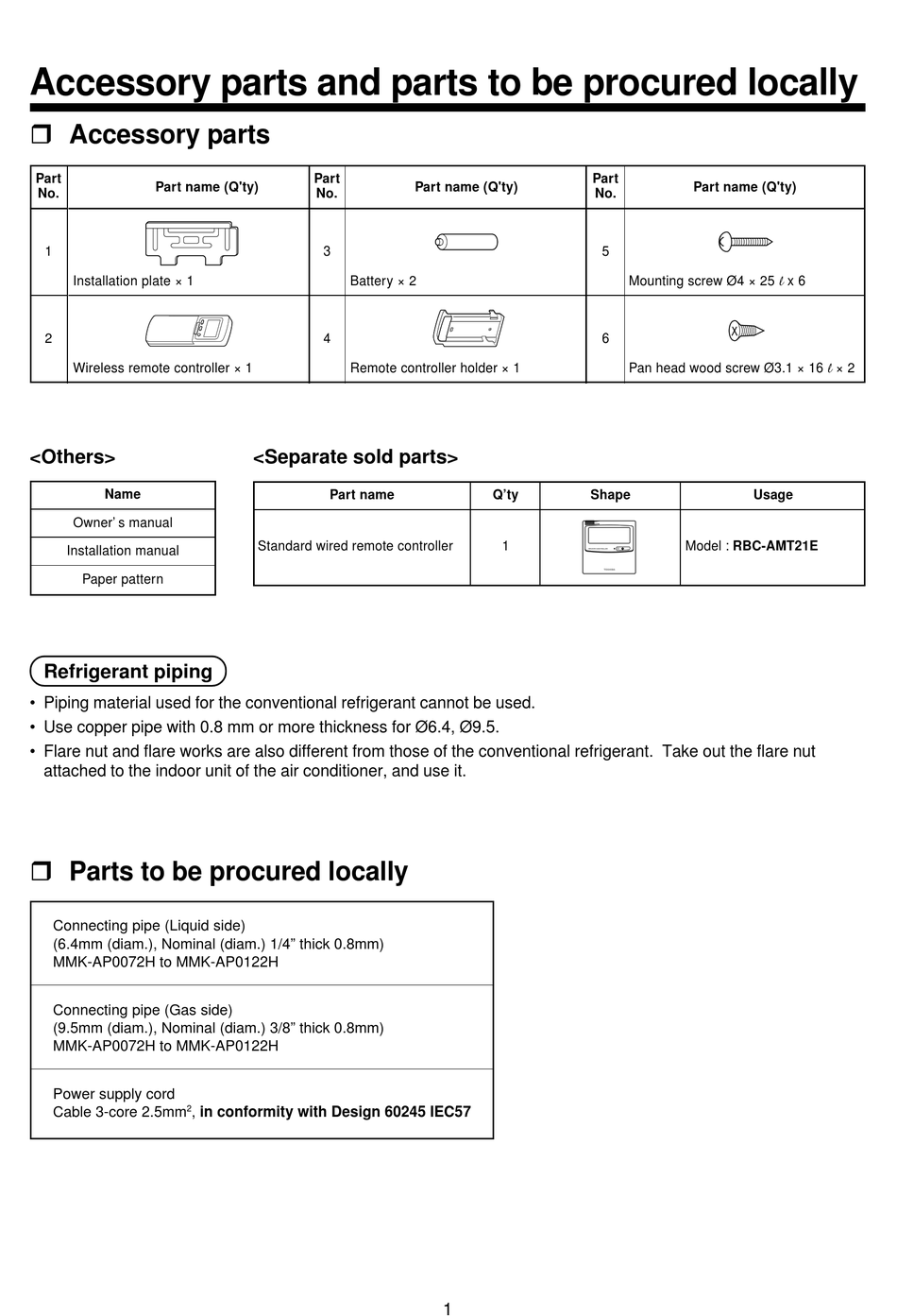

Accessory parts and parts to be procured locally

H Accessory parts
Part
Part name (Q'ty)
No.
1
Installation plate × 1
2
Wireless remote controller × 1
<Others>
Name
Owner' s manual
Installation manual
Paper pattern
Refrigerant piping
• Piping material used for the conventional refrigerant cannot be used.
• Use copper pipe with 0.8 mm or more thickness for Ø6.4, Ø9.5.
• Flare nut and flare works are also different from those of the conventional refrigerant. Take out the flare nut
attached to the indoor unit of the air conditioner, and use it.
H Parts to be procured locally
Connecting pipe (Liquid side)
(6.4mm (diam.), Nominal (diam.) 1/4" thick 0.8mm)
MMK-AP0072H to MMK-AP0122H
Connecting pipe (Gas side)
(9.5mm (diam.), Nominal (diam.) 3/8" thick 0.8mm)
MMK-AP0072H to MMK-AP0122H
Power supply cord
Cable 3-core 2.5mm 2 , in conformity with Design 60245 IEC57
Part
Part name (Q'ty)
No.
3
Battery × 2
4
Remote controller holder × 1
<Separate sold parts>
Part name
Standard wired remote controller
Part
No.
5
6
Q'ty Shape
1
1
Part name (Q'ty)
Mounting screw Ø4 × 25 l x 6
Pan head wood screw Ø3.1 × 16 l × 2
Usage
Model : RBC-AMT21E
