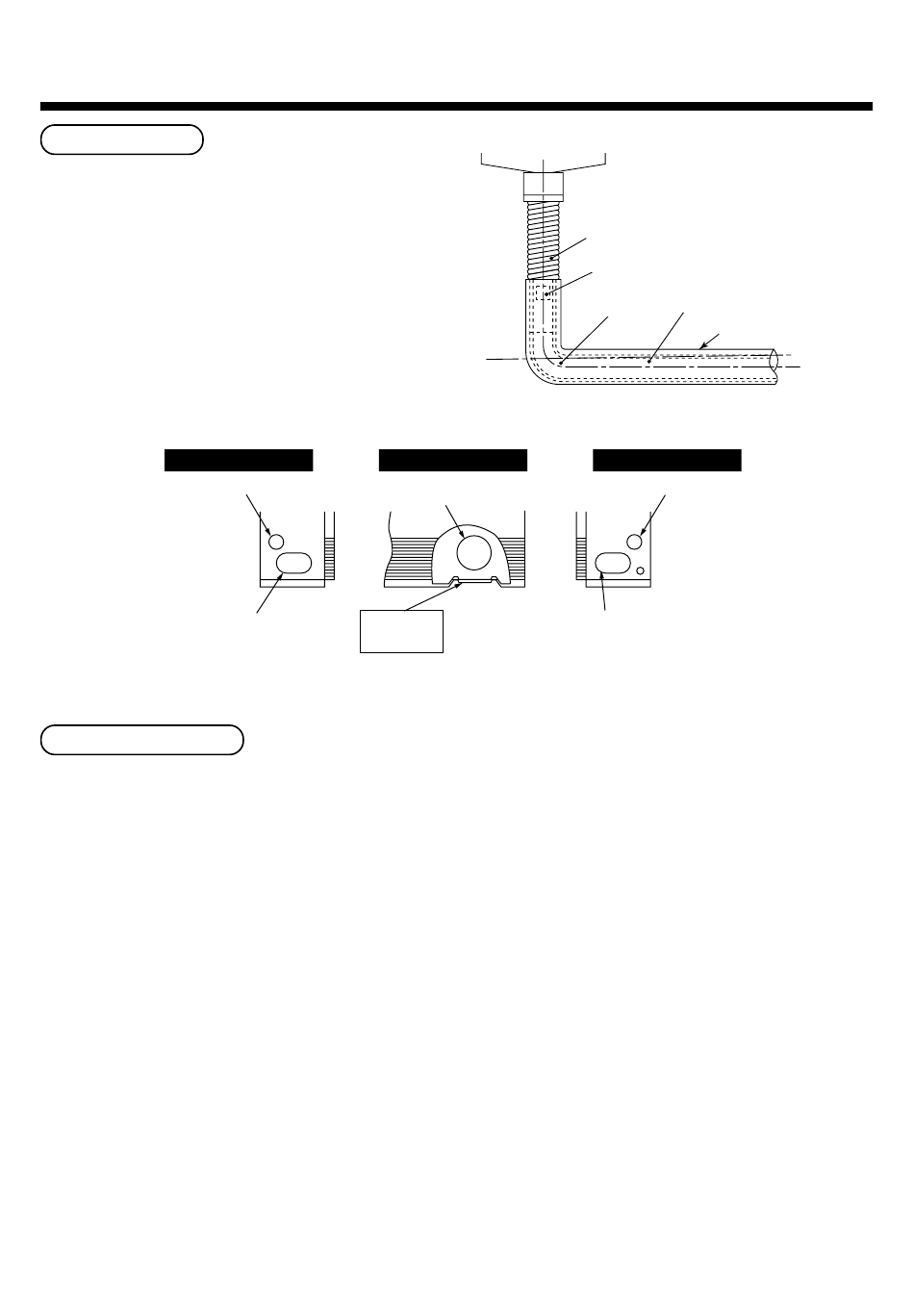

Piping method
The drain pipe and the refrigerant pipe can be
connected to any position, left, right, rear or bottom
side arbitrarily according to the installation position.
Select a set knockout hole referring to the following
figure.
For left side
Hole for wire
Hole for drain pipe
and refrigerant pipe
Check the draining
After drain piping work, check that water drain is properly performed and water does not leak from the connecting
part of the pipes. In this time, check also there is no abnormal sound of the motor of the drain pump. Be sure to
check draining when installed in the heating period.
Drain receiver
For rear side
Hole for refrigerant pipe
and drain pipe
Hole for drain
For bottom
pipe and
side
refrigerant pipe
8
Drain hose
Use adhesive for hard polyvinyl chloride pipe
Hard polyvinyl chloride pipe
Elbow
Insulation
For right side
Hole for wire
Hole for drain
pipe and
refrigerant pipe
