11.7

Connection and Installation of the Temperature Sensor

To be able to measure the rinsing and dry zone temperature of the crate washer, the unit
has two connections for two temperature sensors.
Suitable temperature sensors (order separately as accessory):
- Rinsing temperature sensor "Ecoplus" (contact sensor)
- Heat conductive paste (2 ml, in syringe)
The sensor may only be installed on the rinsing pipe after the boiler. The rinsing pipe must
be made of metal and must be straight (max. ∅ 12 to 28 mm). To avoid measuring errors the
WARNING
whole sensor must be insulated from the ambient temperature after installation.
Conventional insulation material must be used for this.
It must be taken into account that the temperature indicator of the boiler and the unit differ
after the crate washer has been out of operation for some time. A certain time must be
NOTE
waited for the rinsing pipe to heat up to achieve approximately identical temperature
displays.
Follow these steps to install the temperature sensor:

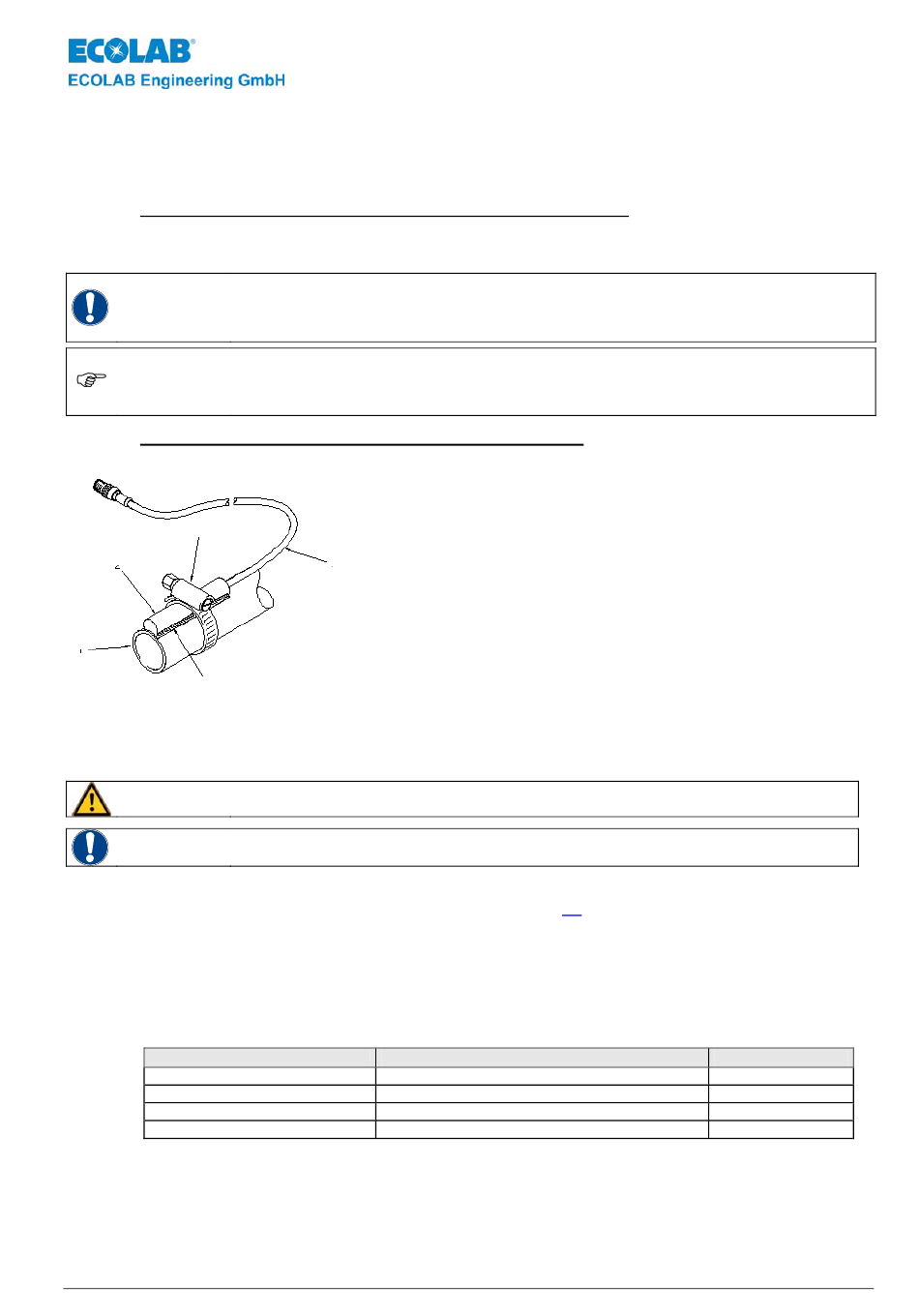

Fig. 11.5
3
2
1
5
11.8

Electrical Connection

CAUTION
Only the original transformer (included in delivery) may be used.
The valid international, national and local regulations must be observed when
WARNING
connecting the unit electrically.
The electrical connections must be made according to fig. 11.6 and 11.8 and the
corresponding terminal assignment plan (see chapter
11.8.1

Connection of the enable signals via input module

The standard connection on a crate washer must be taken from the following table in
connection with the input module (art. no. 223563).
Crate washer - OUTPUT
Neutral (N)
Washing pump, circulation
Filling signal
Rinsing signal (belt transport)
417101386_AquantaControl_II.doc
1. Find a suitable installation position on the rinsing pipe (fig.
11.2, item G).
2. Coat the metal surface of this place thinly with
heat conductive paste (fig. 11.5, item 5).
4
3. Place the sensor (fig. 11.5, item 2) carefully on the
prepared position and secure with the hose clip (item 3).
4. Insulate the sensor against the ambient temperature with the
insulation material.
5. Connect the sensor cable (fig. 11.5, item 4) to the plug
connector "G" of the unit.
6. Connect connection "G" of the unit.
Mains disconnection module - INPUT
COM / Common
WASH / detergent metering enable
FILL / detergent pre-metering
RINSE / rinse agent metering enable
- 86 -
art. no. 223562
art. no. 416016411
13 Appendix).
Line number
1
2
3
4
