Connection of a crate counter

The connection assignment for different types of crate counters is specified in the table
below:
Ultrasonic sensor Type QS18UPAEQ8
Terminal (color)
A mechanical switch or a PNP output of an external control can also be connected in place
of an ultrasonic sensor.
In this case the pulse and interruption times must be observed (as described in sect. 7.8)
for correct detection of the crates.
When a PNP output of an external control is connected the ext. supply voltage may be
NOTE
between 12VDC and 24VDC.
Connection assignment: Signal:
For potential isolation the hook-in switch S1 must be unhooked from the additional board!
11.8.3

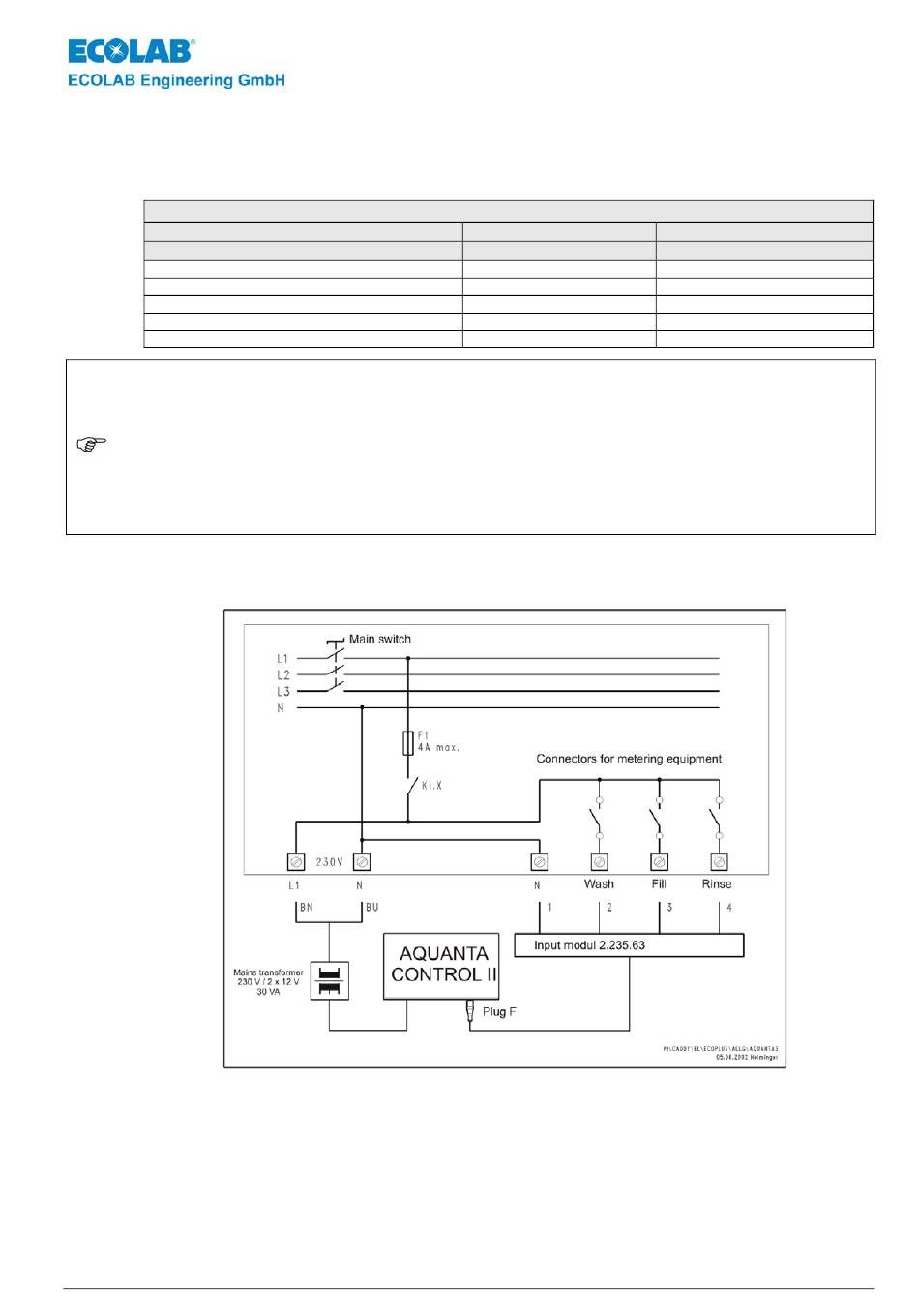

Schematic connection diagram when using a separate metering unit connection

Fig. 11.6
417101386_AquantaControl_II.doc
Connection assignment for crate counter
26 BN
27 BK
31 WH
33 BU
S1 = ON
ext. GND:
Mechanical switch
Terminal
26 (+12V)
27 (input)
------------
------------
S1 = ON
Terminal 27
Terminal 33
- 87 -
PNP output from PLC
Terminal
------------
27 (input)
------------
33 (ext. GND)
S1 = OFF
Rev. 4-2/10
