13.

Appendix

13.1

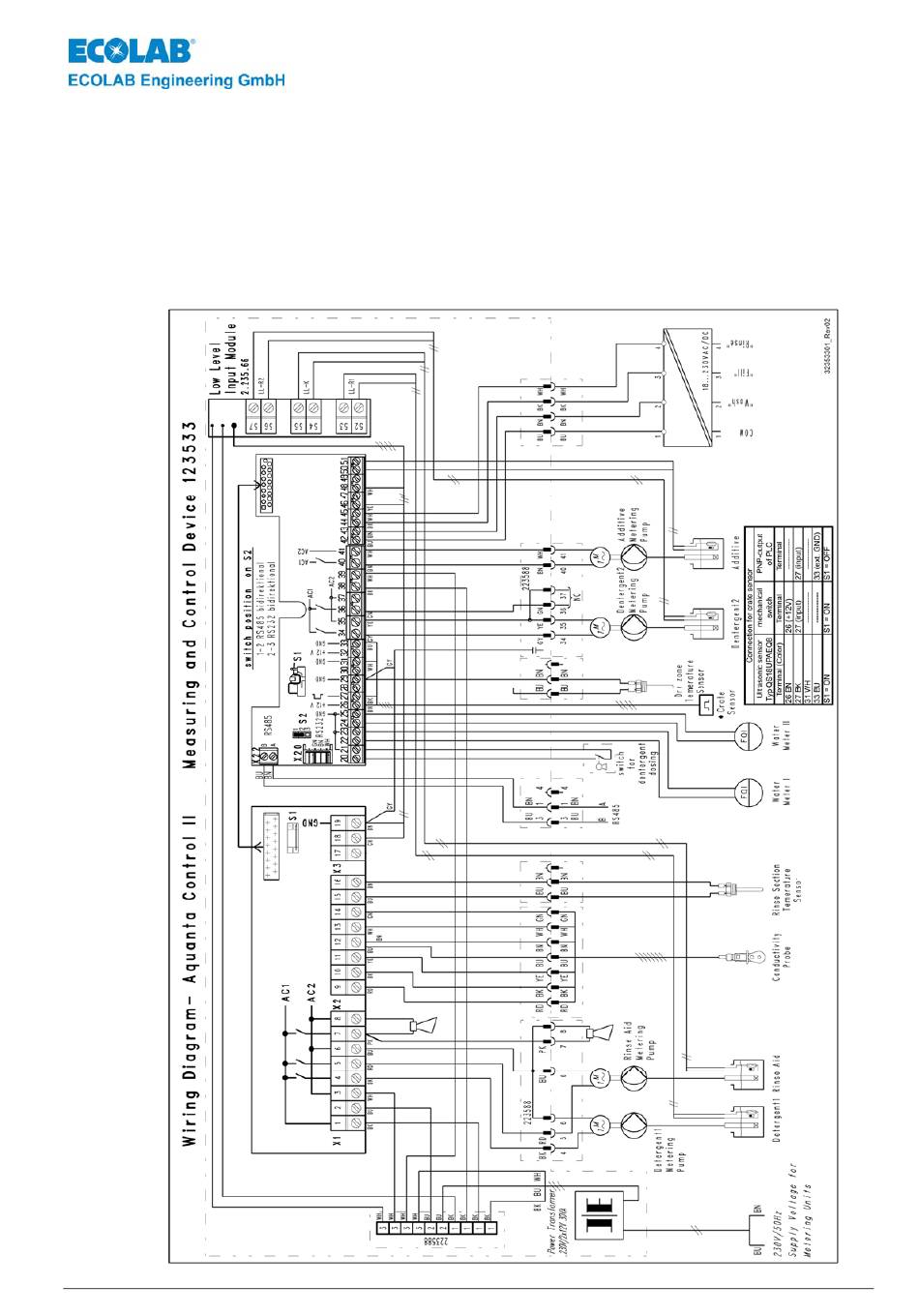

Terminal connection diagram

measuring and control unit with external metering pumps and input Module

223563

The connection plan shows the standard wiring of the Aquanta Control unit when using the input

module 223563. This module allows the connection of enable signals with common reference

potential. By using the empty signal input module the empty signals can be carried to the metering

station on one line together with the pump control signals.

417101386_AquantaControl_II.doc

AQUANTA CONTROL II

- 90 -

(art no. 123533)

Rev. 4-2/10
